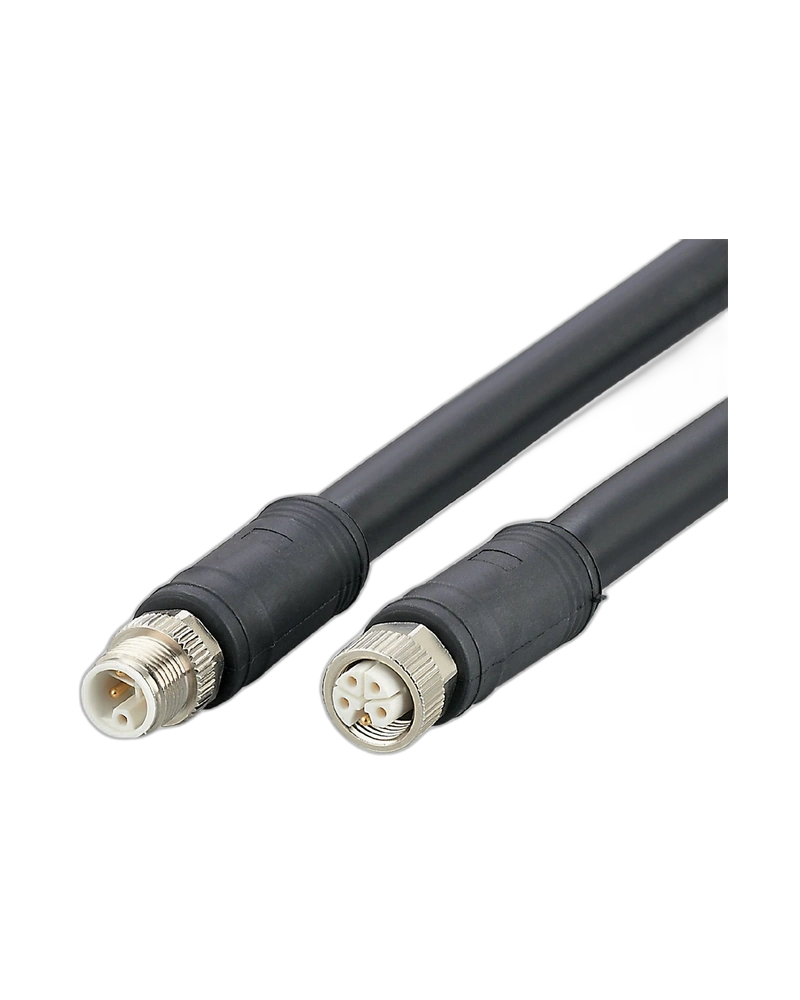

The IFM E12656 is an M12/M12 industrial connecting cable with a 10 m length for extended machine and automation connections. Its robust PUR construction and reliable M12 interfaces make it suitable for field modules, factory automation and machine tool installations where longer cable routing is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12656 is designed for long-distance connection between compatible M12 automation components. Its 10 m length provides additional reach for larger industrial installations.
The 10 m cable length supports equipment layouts where field devices and connection points are positioned farther apart. It can help simplify long cable runs.
The cable features a robust industrial construction intended for suitable factory and machine environments. Its connector arrangement provides a secure M12 connection.
Gold-plated contacts and suitable sealing components support dependable electrical connection performance when installed correctly.
M12/M12 connection
10 m cable length
PUR cable
5 × 2.5 mm² configuration
Gold-plated contacts
Nickel-plated brass coupling nut
Viton seal
IP65/IP67 protection when connected
Extended cable reach
Industrial automation design
Factory automation
Machine tools
Industrial machinery
Field module connections
Large machine installations
Industrial control systems
Automation equipment
Industrial electrical wiring
| Specification | Details |
|---|---|
| Product Code | E12656 |
| Cable Length | 10 m |
| Connection | M12/M12 |
| Cable Material | PUR |
| Cable Configuration | 5 × 2.5 mm² |
| Operating Voltage | Up to 63 V DC |
| Nominal Current | Up to 16 A at 45 °C; 12 A at 60 °C |
| Protection Rating | IP65 / IP67 |
| Contacts | Gold-plated |
| Seal | Viton |
| Application | Industrial automation |
| Brand | IFM |
