The IFM E12628 valve bracket is a mechanical mounting accessory designed for pneumatic actuator interfaces with valve shaft heights of 30 to 50 mm. It provides a stable mounting arrangement for valve position monitoring assemblies and is suitable for industrial process automation, pneumatic valve systems and fluid-control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

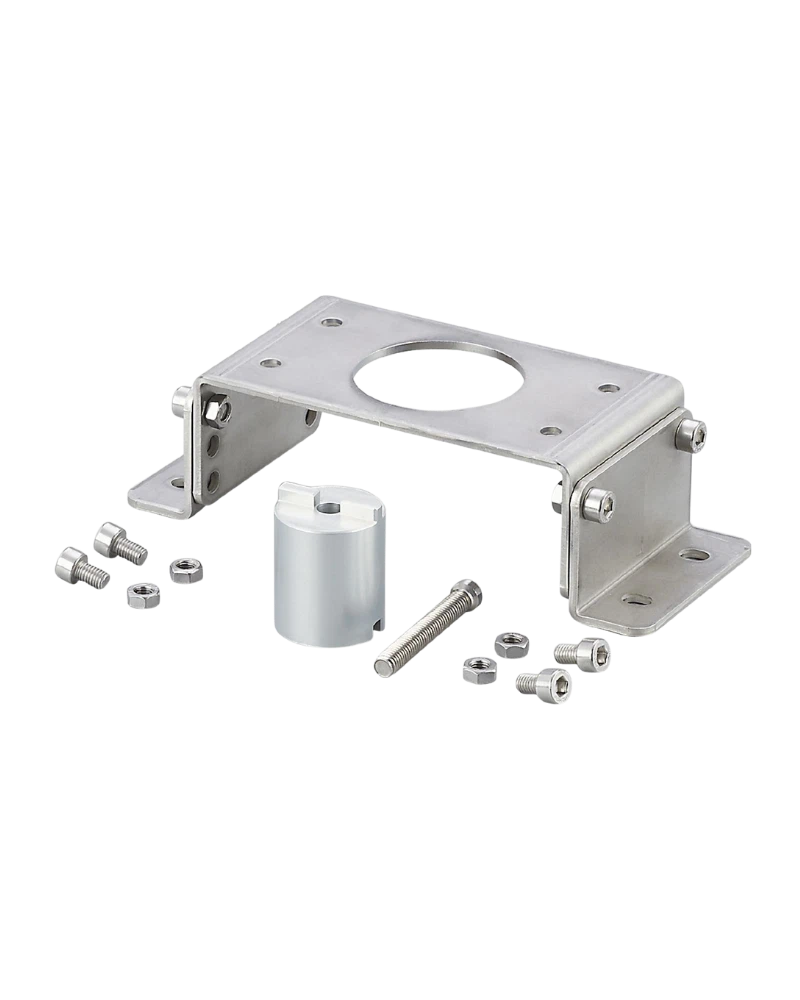

The IFM E12628 is a valve mounting bracket designed for compatible pneumatic actuator and valve assemblies. It provides a mechanical interface for mounting position monitoring components to valve automation systems.
The bracket is designed to support mounting arrangements for valve assemblies with suitable shaft dimensions. It helps maintain the required mechanical alignment between the valve drive and monitoring components.
The assembly uses stainless-steel and aluminium components to provide a robust mechanical mounting solution. This makes it suitable for industrial valve automation and process control environments.
The E12628 supports compatible valve shaft heights in the 30–50 mm range. Its mounting arrangement helps simplify integration of position monitoring accessories with suitable pneumatic actuators.
Valve mounting bracket
Suitable for 30–50 mm shaft heights
Designed for pneumatic actuator interfaces
Suitable for VDI/VDE 3845 mounting applications
Stainless-steel assembly angle
Aluminium shaft adapter
Supports valve position monitoring
Suitable for industrial process automation
Provides stable mechanical alignment
Suitable for pneumatic valve assemblies
Pneumatic valve automation
Valve position monitoring
Process control systems
Industrial fluid handling
Factory automation
Pneumatic actuator installations
Process automation equipment
Valve monitoring assemblies
| Specification | Details |
|---|---|
| Product Code | E12628 |
| Product Type | Valve mounting bracket |
| Designation | VALVE BRACKET 30-50MM |
| Application | Pneumatic actuator / valve interface |
| Mounting Standard | VDI / VDE 3845 compatible |
| Shaft Height | 30 / 40 / 50 mm |
| Shaft Diameter | > 38 mm |
| Mounting Hole Spacing | 80 × 30 / 130 × 30 mm |
| Assembly Material | Stainless steel 1.4404 / 316L |
| Shaft Adapter | Aluminium |
| Weight | 454.5 g |
| Brand | IFM |
