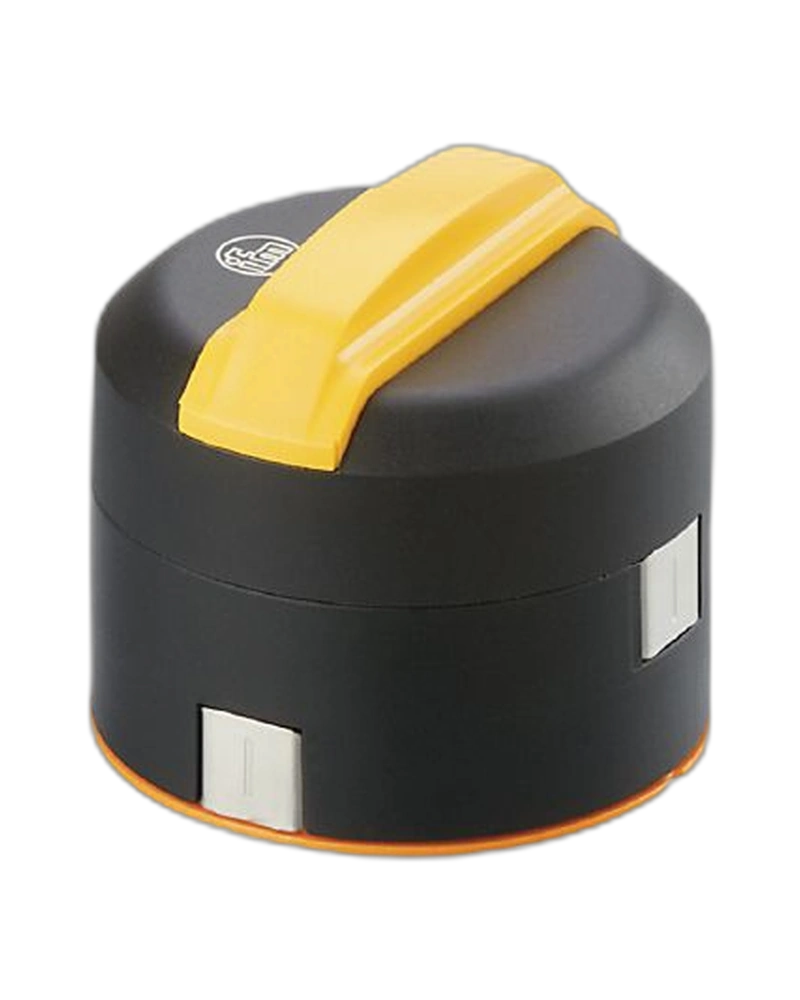

The IFM E12517 PUCK 53MM BASIC is a mechanical target puck designed for valve actuator position sensing. It provides a reliable target for compatible sensors used with pneumatic actuators and manually operated valves. The product has a 53 mm target diameter and is designed for suitable VDI/VDE 3845, ISO 5211 and DIN 3337 mechanical interfaces. Its compact construction supports industrial valve automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12517 is an IFM target puck for valve actuator applications. It is designed for mechanical interfaces on pneumatic actuators and manually operated valves according to VDI/VDE 3845 and ISO 5211 / DIN 3337. The target puck provides a mechanical detection point for compatible position sensors.
The target puck has a specified diameter of 53 mm and a hole spacing of 80 mm. IFM documentation specifies a shaft height of 30 mm and PA 6 black target puck material with stainless-steel metal parts. These specifications provide a defined mechanical interface for compatible valve actuator installations.
The target puck is used to provide a mechanical target for valve position sensors. As the actuator moves, the target position changes and can be detected by suitable sensors. This enables automated monitoring of valve position in industrial systems. It is suitable for pneumatic and manually operated valve applications.
The E12517 is supplied with a stainless-steel M6 × 16 mm half-round head screw. Its defined dimensions support repeatable installation on compatible actuator interfaces. Correct mechanical alignment is important for reliable sensor operation.
IFM target puck
Product code E12517
Model PUCK 53MM BASIC
53 mm target diameter
80 mm hole spacing
30 mm actuator shaft height
PA 6 black target material
Stainless steel metal parts
Suitable for pneumatic actuators
Suitable for manually operated valves
VDI/VDE 3845 interface
ISO 5211 compatibility
DIN 3337 compatibility
M6 × 16 mm screw supplied
Valve automation
Pneumatic actuators
Manual valves
Valve position sensing
Process automation
Industrial valve systems
Factory automation
Actuator monitoring
Automated process control
Machine automation
Position feedback systems
Industrial equipment
| Specification | Details |
|---|---|
| Product code | E12517 |
| Product type | Target puck |
| Model | PUCK 53MM BASIC |
| Brand | IFM |
| Category | Valve sensor accessories |
| Application | Valve actuators |
| Target diameter | 53 mm |
| Hole spacing | 80 mm |
| Actuator shaft height | 30 mm |
| Material | PA 6 black |
| Metal parts | Stainless steel |
| Tightening torque | 2.5 to 3 Nm |
| Interface | VDI/VDE 3845 |
| Interface standard | ISO 5211 |
| Interface standard | DIN 3337 |
| Application | Pneumatic actuators |
| Application | Manually operated valves |
| Mounting screw | M6 × 16 mm |
| Screw material | Stainless steel |
| Function | Sensor target |
| Application area | Valve automation |
| Installation | Actuator mounting |
| Pack quantity | 1 piece |
| Weight | 60.5 g |
| Manufacturer | IFM |
