The IFM E12509 jumper cable with valve plug is designed for reliable industrial valve connections and NAMUR applications. Its compact construction combines an M12 connection with a DIN valve connector to simplify field wiring. The 0.6 m cable length provides additional installation flexibility compared with shorter jumper assemblies. IP67 protection and industrial construction make it suitable for demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12509 is an IFM jumper cable with valve plug designed for industrial valve connection applications. It is suitable for NAMUR systems and combines a field connection with a valve connector. The assembly provides a practical connection solution for automation equipment. Its compact design supports organized machine wiring.
The product uses an M12 connection and DIN valve connector arrangement. The 0.6 m cable length provides flexibility for equipment positioned close to the valve. The cable assembly helps reduce the need for separate connection components. It is suitable for compatible valve automation systems.
The product is designed for industrial environments and provides an IP67 protection rating. Its operating temperature range is suitable for demanding industrial applications. The robust connector construction supports dependable field connection. It can be used in valve automation and process control installations.
The jumper configuration simplifies connection between field wiring and valve equipment. The pre-assembled arrangement reduces installation effort. It is useful during machine assembly, maintenance and replacement. Proper installation helps maintain dependable electrical connectivity.

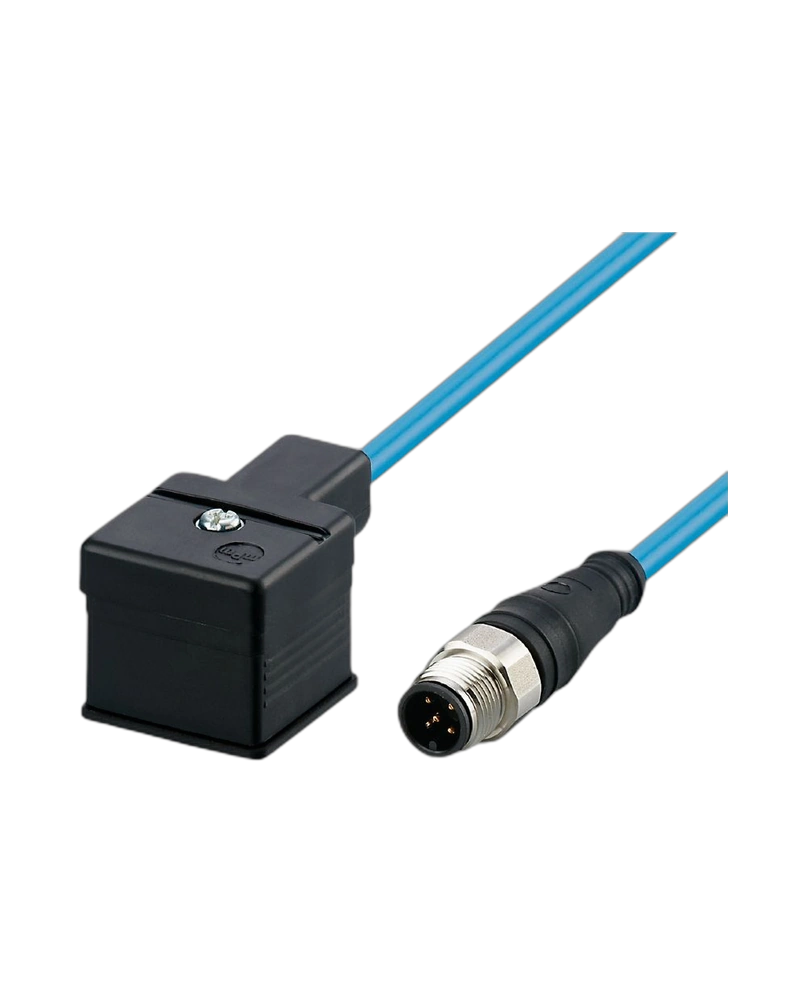

IFM jumper cable with valve plug
Product code E12509
Model VVDAA040--N00,6E02STGH020VAN
0.6 m cable length
M12 connection
DIN valve connector
NAMUR application
Industrial connection technology
IP67 protection
Compact construction
Suitable for valve automation
Reliable field connection
Industrial environment suitability
Easy installation
NAMUR systems
Valve automation
Pneumatic valves
Process automation
Industrial control
Field devices
Machine automation
Valve connection
Factory automation
Control cabinets
Industrial equipment
Maintenance applications
| Specification | Details |
|---|---|
| Product code | E12509 |
| Product type | Jumper cable with valve plug |
| Model | VVDAA040--N00,6E02STGH020VAN |
| Brand | IFM |
| Category | Sensor Accessories |
| Application | NAMUR |
| Cable length | 0.6 m |
| Connection 1 | M12 |
| M12 orientation | Straight |
| M12 coding | A-coded |
| Connection 2 | DIN valve plug |
| Valve type | Type A |
| Valve standard | EN 175301-803 |
| Operating voltage | <30 V DC |
| Protection rating | IP67 |
| Application environment | Industrial |
| Cable function | Valve connection |
| Connector body | Molded industrial construction |
| Locking | Stainless steel |
| Installation | Field connection |
| Usage | Valve automation |
| Product family | Jumper cables |
| Quantity | 1 piece |
| Manufacturer | IFM |
