The IFM E12508 jumper cable with valve plug is designed for reliable valve connection in industrial automation systems. It combines a compact M12 connection with a valve connector arrangement for convenient field installation. The product is suitable for NAMUR applications and provides a robust connection solution for demanding environments. Its IP67 protection and wide operating temperature range support industrial use.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

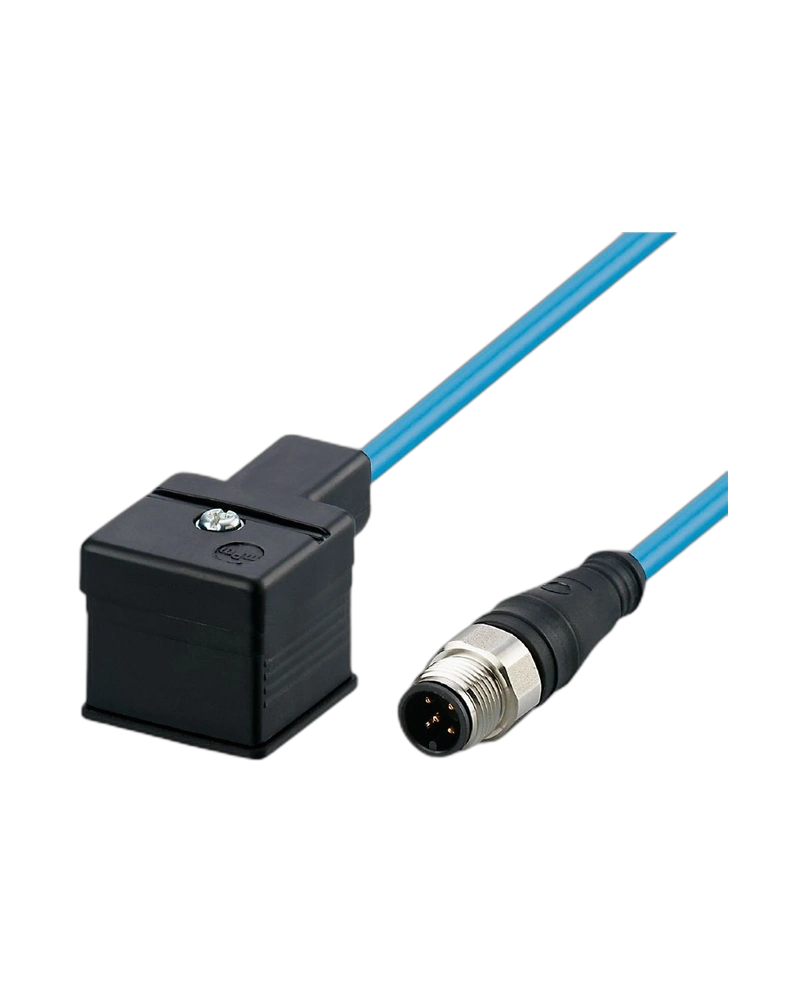

The E12508 is an IFM jumper cable with valve plug designed for industrial valve connection applications. IFM specifies it for NAMUR applications and provides an M12 connection combined with a DIN valve connector. This arrangement supports convenient connection between automation wiring and valve equipment.
The product uses an M12 straight connector with A coding and a DIN valve type A connector. The cable is 0.3 m long and uses a PVC cable with two 0.5 mm² conductors according to IFM documentation. This compact arrangement is useful where valve and field connections need to be closely integrated.
The E12508 has an IP67 protection rating and an ambient temperature range of -25 to 90 °C. Its TPU/PUR molded construction and stainless-steel locking components support industrial installation. The product is designed for demanding industrial environments and specified NAMUR applications.
The jumper cable is supplied with a screw and labeling panel for installation. IFM also provides special notes regarding static charge for certain hazardous-area applications. Correct installation and application-specific safety requirements should always be observed.
IFM jumper cable with valve plug
Product code E12508
Model VVDAA040--N00,3E02STGH020VAN
0.3 m cable length
M12 straight connector
A-coded connection
DIN valve type A connector
NAMUR application
IP67 protection
Operating temperature -25 to 90 °C
Stainless steel locking components
TPU/PUR molded body
Compact valve connection
Industrial design
NAMUR applications
Valve automation
Industrial valves
Pneumatic valve systems
Process automation
Field equipment
Industrial control systems
Machine automation
Valve connection
Factory automation
Control panels
Industrial equipment
| Specification | Details |
|---|---|
| Product code | E12508 |
| Product type | Jumper cable with valve plug |
| Model | VVDAA040--N00,3E02STGH020VAN |
| Brand | IFM |
| Category | Sensor Accessories |
| Application | NAMUR |
| Cable length | 0.3 m |
| Cable material | PVC |
| Cable colour | Blue |
| Cable diameter | 5.1 mm |
| Conductors | 2 × 0.5 mm² |
| Operating voltage | <30 V DC |
| Protection rating | IP67 |
| Ambient temperature | -25 to 90 °C |
| M12 connector | 1 × M12 straight |
| M12 coding | A-coded |
| Valve connector | DIN type A |
| Valve standard | EN 175301-803 |
| Molded body | TPU / PUR |
| Locking material | Stainless steel 1.4404 / 316L |
| Application type | Valve connection |
| Supplied screw | 1 |
| Labeling panel | 1 |
| Pack quantity | 1 piece |
