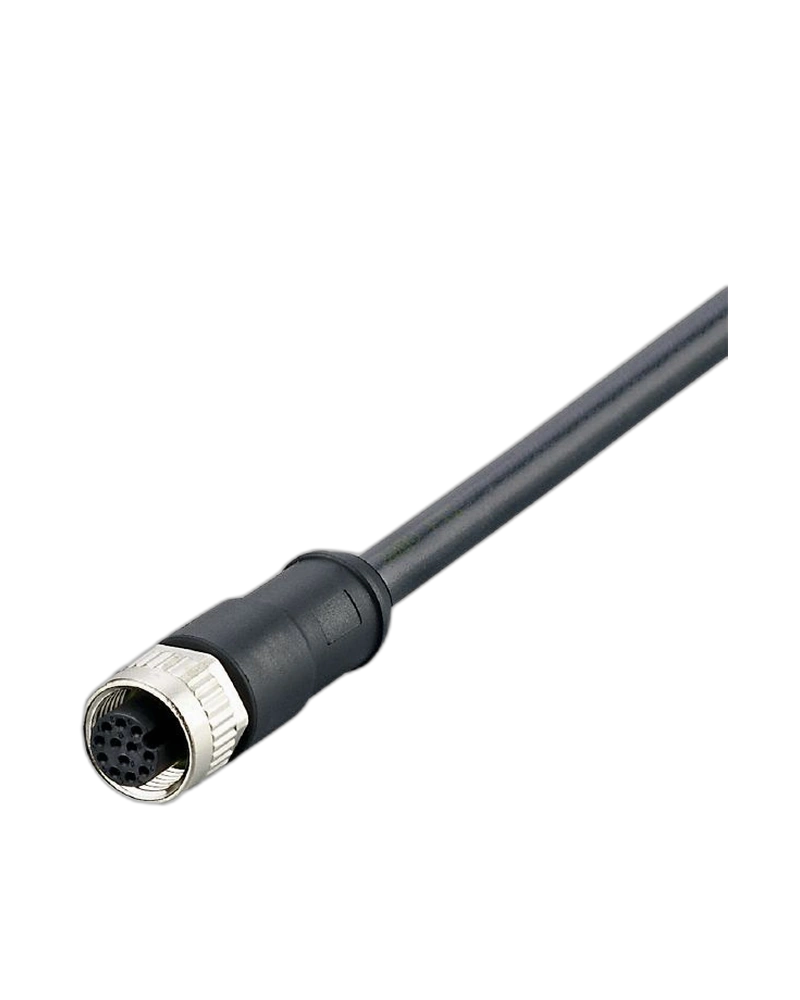

The IFM E12504 connecting cable with socket is designed for reliable industrial automation connections and features a 12-pole M12 socket configuration. Its 15 m cable length provides flexibility for larger machine installations and equipment layouts. The cable uses an industrial connection design suitable for factory automation, control systems and field modules. It supports organized wiring, dependable connectivity and practical installation in industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12504 is an IFM connecting cable with socket designed for industrial automation applications. It provides a 12-pole connection arrangement suitable for compatible field equipment. Its extended cable length provides additional routing flexibility. The pre-assembled design simplifies machine installation and maintenance.
The product uses an M12 straight socket with 12 gold-plated contacts according to IFM documentation. This configuration provides a compact multi-contact connection for compatible automation equipment. The cable is designed for industrial connection applications and supports organized equipment wiring.
The cable is suitable for industrial automation and factory applications. IFM documentation specifies an IP67 protection rating and an operating temperature range of -25 to 90 °C for the E12504. The cable is also specified as suitable for energy-chain use under stated operating conditions.
The 15 m cable length provides flexibility for routing across larger machine installations. Its pre-assembled connection reduces field termination requirements. The cable can support equipment replacement and maintenance activities when correctly installed. Proper routing and bend-radius requirements should be observed.
IFM connecting cable with socket
Product code E12504
Model ADOGH120ZDS0015H12
15 m cable length
12-pole connection
M12 straight socket
Gold-plated contacts
PUR cable
Halogen-free construction
Suitable for energy chains
IP67 protection
Industrial automation design
Wide operating temperature range
Reliable connection technology
Industrial automation
Factory automation
Machine wiring
Energy-chain applications
Field modules
Control systems
Production machinery
Automation cabinets
Industrial equipment
Machine-building
Control panels
Industrial communication installations
| Specification | Details |
|---|---|
| Product code | E12504 |
| Product type | Connecting cable with socket |
| Model | ADOGH120ZDS0015H12 |
| Brand | IFM |
| Category | Sensor Accessories |
| Cable length | 15 m |
| Connector | M12 |
| Contact count | 12 |
| Contact material | Gold-plated |
| Connector orientation | Straight |
| Cable material | PUR |
| Cable colour | Black |
| Cable diameter | 6.6 mm |
| Wire configuration | 12 × 0.25 mm² |
| Operating voltage | <30 AC/DC |
| Protection rating | IP67 |
| Ambient temperature | -25 to 90 °C |
| Energy-chain suitability | Yes |
| Minimum bend radius | 10 × cable diameter |
| Maximum travel speed | 3.3 m/s |
| Maximum acceleration | 5 m/s² |
| Bending cycles | >5 million |
| Connector body | PUR |
| Locking material | Die-cast zinc |
| Quantity | 1 piece |
