The IFM E12469 symbol disc provides clear UP/DOWN function identification for compatible illuminated pushbuttons. It is designed for KT M22 types and uses PA Grilamid TR 90UV material with a 15.5 mm diameter. The disc uses a simple snap-fit installation method and provides a robust visual marking solution for industrial operator interfaces and machine control panels.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

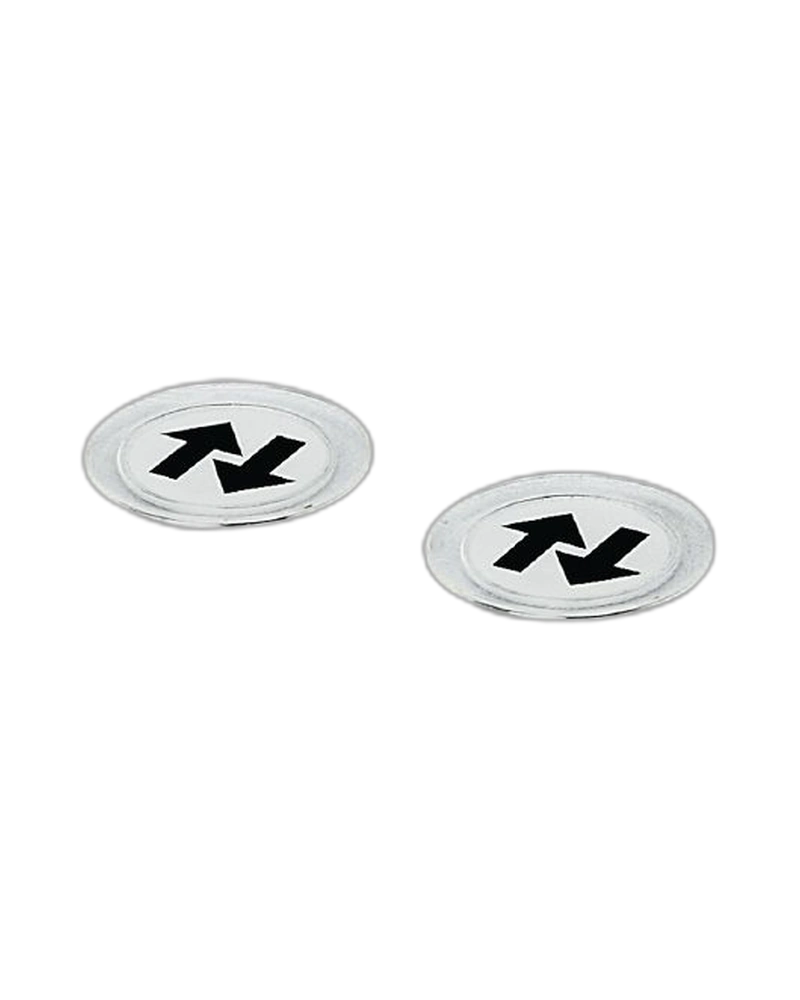

The E12469 is a symbol disc designed to provide clear UP/DOWN function identification on illuminated pushbuttons. It is intended for industrial operator interfaces where control functions need to be visually distinguished. The disc is designed for KT M22 types and supports simple installation.
The symbol disc has a compact 15.5 mm diameter and is made from PA Grilamid TR 90UV. Its snap-fit arrangement allows straightforward installation into the compatible touch-sensor assembly. Once fitted, the disc is intended to remain permanently installed.
The UP/DOWN symbol gives operators an immediate visual indication of the button's function. This is particularly useful for machine interfaces where movement, adjustment or positioning functions are controlled through pushbuttons. Clear markings can help simplify machine operation.
The E12469 provides a simple way to improve the clarity of industrial control panels. Its robust polymer construction supports industrial environments, while the compact design integrates neatly with compatible pushbuttons. It can be used to create consistent and easy-to-understand operator interfaces.
UP/DOWN symbol
For KT M22 types
15.5 mm diameter
PA Grilamid TR 90UV material
Snap-fit installation
Permanent installation
Compact construction
Clear function marking
Industrial operator-interface accessory
Pack quantity 2 pcs.
Machine movement controls
Positioning controls
Industrial operator panels
Machine control stations
Automation equipment
Production machinery
Control cabinets
Operator terminals
Industrial touch controls
Factory automation
| Specification | Details |
|---|---|
| Product code | E12469 |
| Product type | Symbol disc for illuminated pushbutton |
| Model | CAP M22 SYMBOL Up/Down |
| Brand | IFM |
| Category | Symbol disc |
| Symbol | UP/DOWN |
| Application | KT M22 types |
| Weight | 2.4 g |
| Diameter | 15.5 mm |
| Material | PA Grilamid TR 90UV |
| Installation | Snap-fit |
| Removal | Cannot be removed after fitting |
| Pack quantity | 2 pcs. |
| Application area | Operator interface |
| Pushbutton type | Illuminated pushbutton |
| Function identification | UP/DOWN |
| Construction | Polymer disc |
| Mounting method | Clip connection |
| Industrial suitability | Yes |
| Machine interface | Yes |
| Control-panel application | Yes |
| Product family | Symbol discs and surrounds |
| Manufacturer | IFM |
| Accessory type | Operator-interface accessory |
