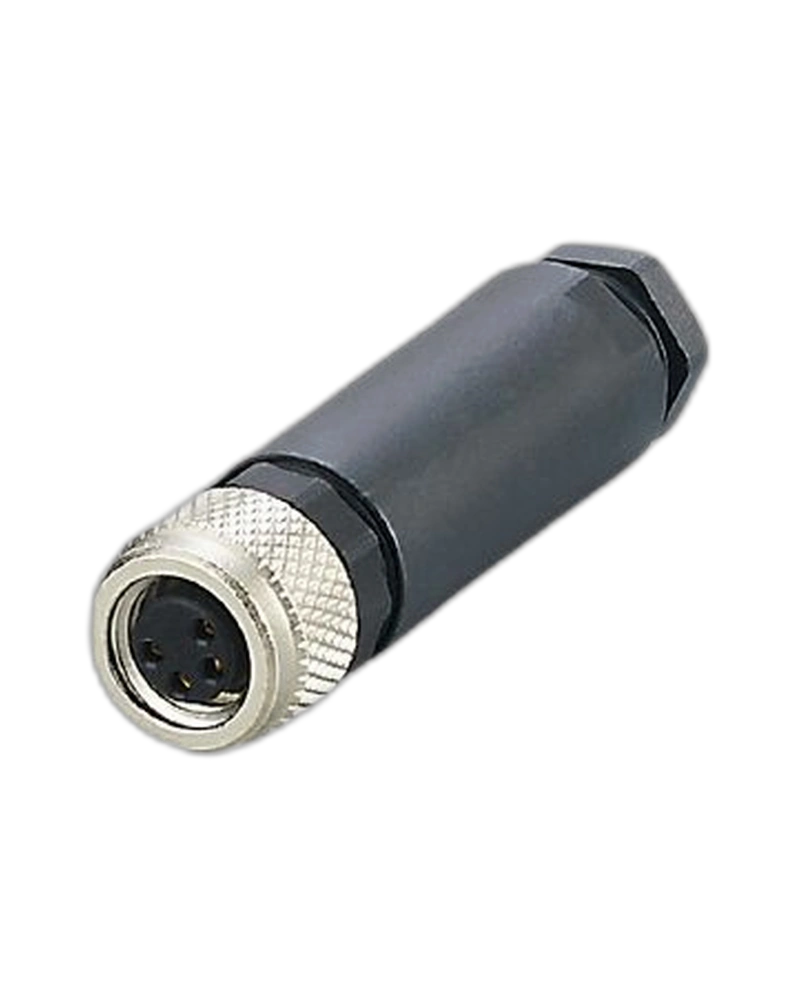

The IFM E12464 is a wirable socket designed for secure industrial electrical connections. It provides gold-plated contacts, PNP electrical design and IP67 protection for demanding automation environments. With an M8 straight A-coded connector, screw terminals and a wide -40 to 85 °C ambient temperature range, it is suitable for sensor wiring, machine automation and industrial control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12464 provides a flexible field-wiring solution for compatible industrial sensors and automation devices. Its wirable construction allows cables to be terminated directly at the socket using screw terminals. The M8 connector format provides a compact and practical connection solution for machine installations.
The socket supports operating voltages below 30 V AC/DC and uses a PNP electrical design. Gold-plated contacts provide reliable electrical connection. The screw-terminal arrangement supports cable conductors from 0.14 to 0.5 mm², providing flexibility for industrial wiring requirements.
The E12464 is designed for harsh industrial environments and provides IP67 protection. Its operating temperature range extends from -40 to 85 °C. The PBT/PA body and nickel-plated brass nut provide a robust construction suitable for industrial sensor connection applications.
The wirable socket simplifies cable termination and maintenance while supporting reliable sensor connections. Its compact M8 construction is useful in space-constrained machine environments. The wide temperature range and IP67 protection make it suitable for demanding industrial automation installations.
M8 straight connector
A-coded connection
Gold-plated contacts
PNP electrical design
IP67 protection
-40...85 °C operating range
Screw terminals
PBT/PA body
Nickel-plated brass nut
Compact industrial design
Industrial sensor wiring
Factory automation
Machine control
Field wiring
Sensor interfaces
Industrial instrumentation
Production machinery
Automation systems
Control panels
Machine maintenance
| Specification | Details |
|---|---|
| Product code | E12464 |
| Product type | Wirable socket |
| Model | SDOGF040MSSFKPG |
| Brand | IFM |
| Special feature | Gold-plated contacts |
| Operating voltage | <30 V AC/DC |
| Electrical design | PNP |
| Ambient temperature | -40...85 °C |
| Protection | IP67 |
| Weight | 11.2 g |
| Dimensions | 12 x 12 x 45 mm |
| Moulded-body material | PBT / PA |
| Nut material | Brass, nickel-plated |
| Pack quantity | 1 pcs. |
| Screw terminal range | 0.14...0.5 mm² |
| Cable sheath diameter | 3.5...5 mm |
| Connector | 1 x M8 |
| Orientation | Straight |
| Coding | A |
| Contacts | Gold-plated |
| Locking | Brass, nickel-plated |
| Connection method | Screw terminals |
| Application | Industrial automation |
| Product category | Sensor accessories |
| Installation | Field wiring |
