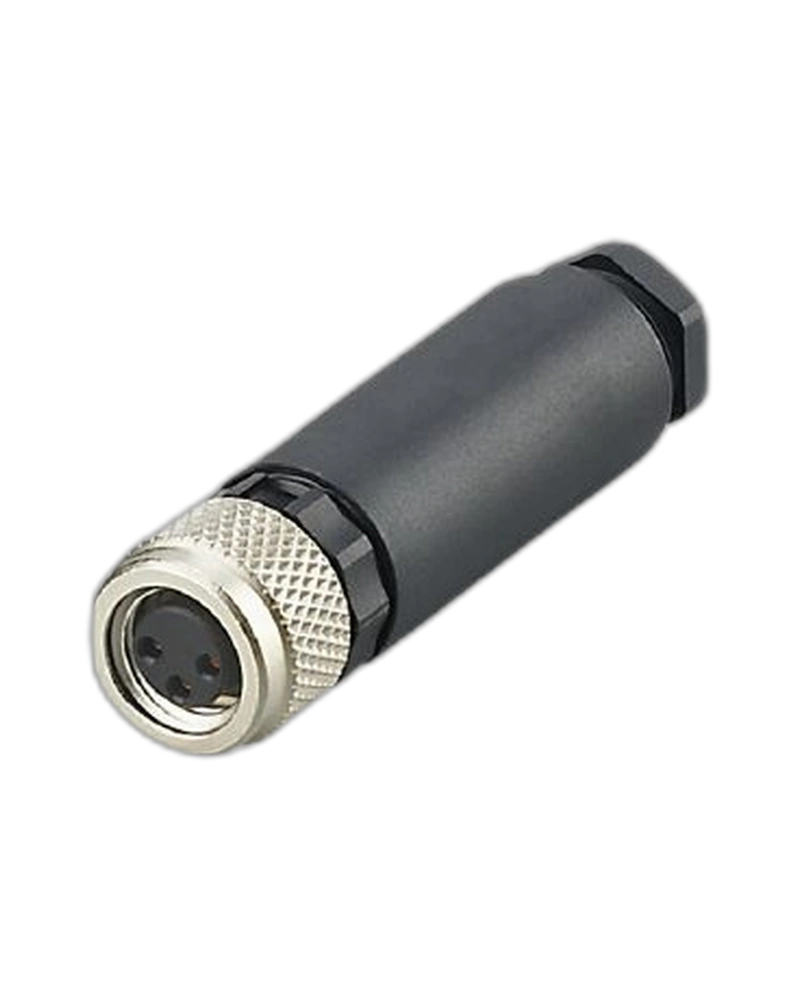

The IFM E12463 is a wirable socket designed for industrial sensor connections and demanding automation environments. It features gold-plated contacts, PNP electrical design, IP67 protection and a wide ambient temperature range of -40 to 85 °C. Its M8 straight A-coded connection and screw-terminal wiring provide a practical solution for field wiring and sensor connection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12463 is a wirable socket designed to provide a flexible connection between industrial cables and compatible sensors or automation devices. Its screw-terminal arrangement allows field wiring without requiring a factory-terminated cable assembly. The M8 connection format provides a compact solution for sensor installations.
The socket uses gold-plated contacts and supports an operating voltage below 30 V AC/DC. Screw terminals accommodate cable conductors from 0.14 to 0.5 mm². The PNP electrical design makes the socket suitable for compatible industrial sensor connections.
The E12463 provides IP67 protection and an ambient operating temperature range from -40 to 85 °C. Its PBT/PA moulded body and nickel-plated brass nut support industrial installation. These characteristics make it suitable for demanding automation environments.
The wirable construction provides flexibility during machine installation and maintenance. Gold-plated contacts support dependable electrical connection, while the compact M8 connector format saves installation space. The wide temperature range allows the socket to be used across a variety of industrial operating conditions.
M8 straight connector
A-coded
Gold-plated contacts
PNP electrical design
IP67 protection
-40...85 °C ambient range
Screw terminals
PBT/PA moulded body
Nickel-plated brass locking nut
Compact construction
Industrial sensors
Factory automation
Machine wiring
Field wiring
Control equipment
Sensor connection
Automation panels
Production machinery
Industrial instrumentation
Machine maintenance
| Specification | Details |
|---|---|
| Product code | E12463 |
| Product type | Wirable socket |
| Model | SDOGF030MSSFKPG |
| Brand | IFM |
| Special feature | Gold-plated contacts |
| Operating voltage | <30 V AC/DC |
| Electrical design | PNP |
| Ambient temperature | -40...85 °C |
| Protection | IP67 |
| Weight | 10.7 g |
| Dimensions | 12 x 12 x 45 mm |
| Moulded-body material | PBT / PA |
| Nut material | Brass, nickel-plated |
| Pack quantity | 1 pcs. |
| Screw terminal range | 0.14...0.5 mm² |
| Cable sheath diameter | 3.5...5 mm |
| Connector | 1 x M8 |
| Connector orientation | Straight |
| Coding | A |
| Locking | Brass, nickel-plated |
| Contacts | Gold-plated |
| Connection | Screw terminals |
| Application | Industrial automation |
| Product family | Connection technology |
| Mounting | Cable / field wiring |
