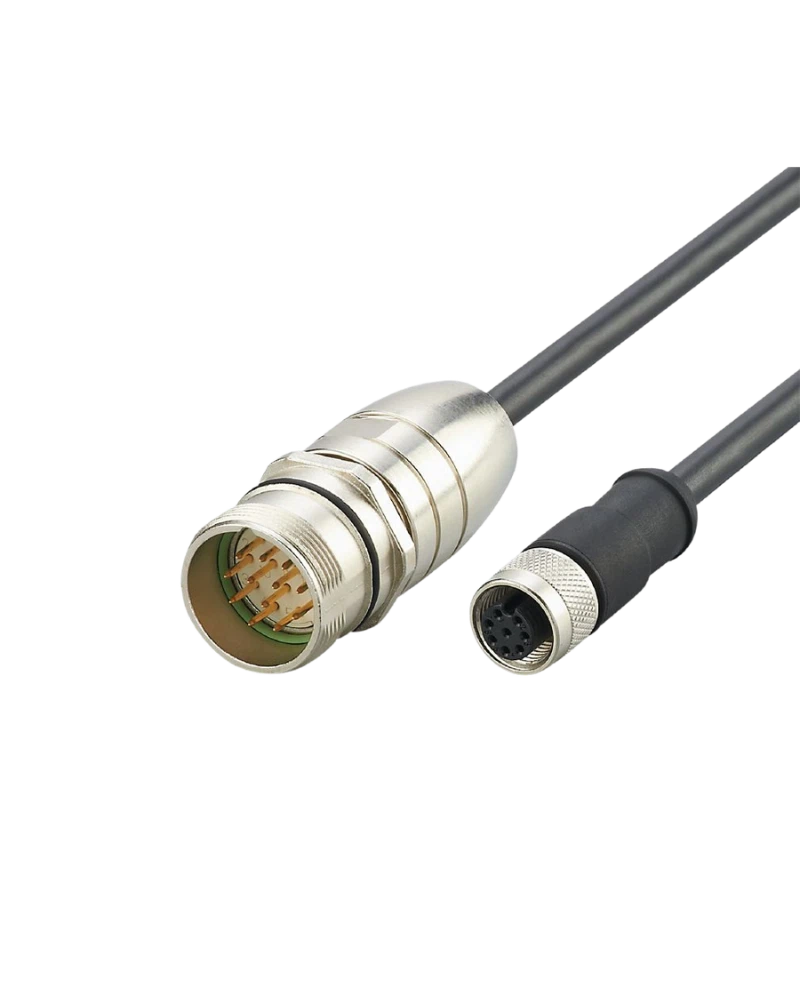

The IFM E12460 is a shielded industrial connection cable equipped with a straight M23 connector and M12 connector arrangement. It features gold-plated contacts, nickel-plated brass connector bodies and IP67 protection. The cable is designed for factory automation and industrial applications, with an operating temperature range of -20 to 90 °C. Its robust construction supports reliable electrical connections in demanding machine environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12460 is an industrial connection cable designed to provide reliable electrical communication between compatible automation components. It uses gold-plated contacts to support dependable electrical connection and a screened cable for improved signal integrity. Its connector arrangement supports industrial automation installations.
The cable uses a straight M23 connector with 12 contacts and a compatible M12 connection. Nickel-plated brass provides mechanical robustness for connector bodies and locking components. The screened connection cable has the screen connected, supporting reliable industrial signal transmission.
The E12460 is rated IP67 and supports ambient temperatures from -20 to 90 °C. Its industrial construction is intended for demanding factory automation environments. The gold-plated contacts help provide stable electrical performance while the robust connector housing supports repeated industrial installation conditions.
The cable provides a convenient preconfigured connection between industrial components. Its screened construction helps support dependable signal transmission, while gold-plated contacts improve contact reliability. IP67 protection supports use in applications where protection against dust and temporary water exposure is required.
Gold-plated contacts
Screened connection cable
M23 connector
12 contacts
M12 connector
IP67 protection
Nickel-plated brass construction
Operating temperature -20...90 °C
Factory automation application
Industrial connection technology
Factory automation
Industrial machinery
Sensor connection
Controller connection
Machine wiring
Industrial control systems
Automation panels
Production equipment
Signal transmission
Industrial electrical connections
| Specification | Details |
|---|---|
| Product code | E12460 |
| Product type | Connection cable |
| Model | ADOGH080MSS00,3K05STGK120MSS |
| Brand | IFM |
| Special feature | Gold-plated contacts |
| Cable type | Screened |
| Application | Industrial applications / factory automation |
| Operating voltage | <30 AC / <36 DC |
| Ambient temperature | -20...90 °C |
| Protection | IP67 |
| Connector 1 | M23 |
| Connector 1 orientation | Straight |
| Connector 1 contacts | 12 |
| Connector 2 | M12 |
| Moulded body | Brass, nickel-plated |
| Nut material | Brass, nickel-plated |
| Locking | Brass, nickel-plated |
| Shield connection | Screen connected |
| Contact material | Gold-plated |
| Weight | 111.4 g |
| Pack quantity | 1 pcs. |
| Application | Factory automation |
| Cable construction | Screened |
| Product category | Connection technology |
