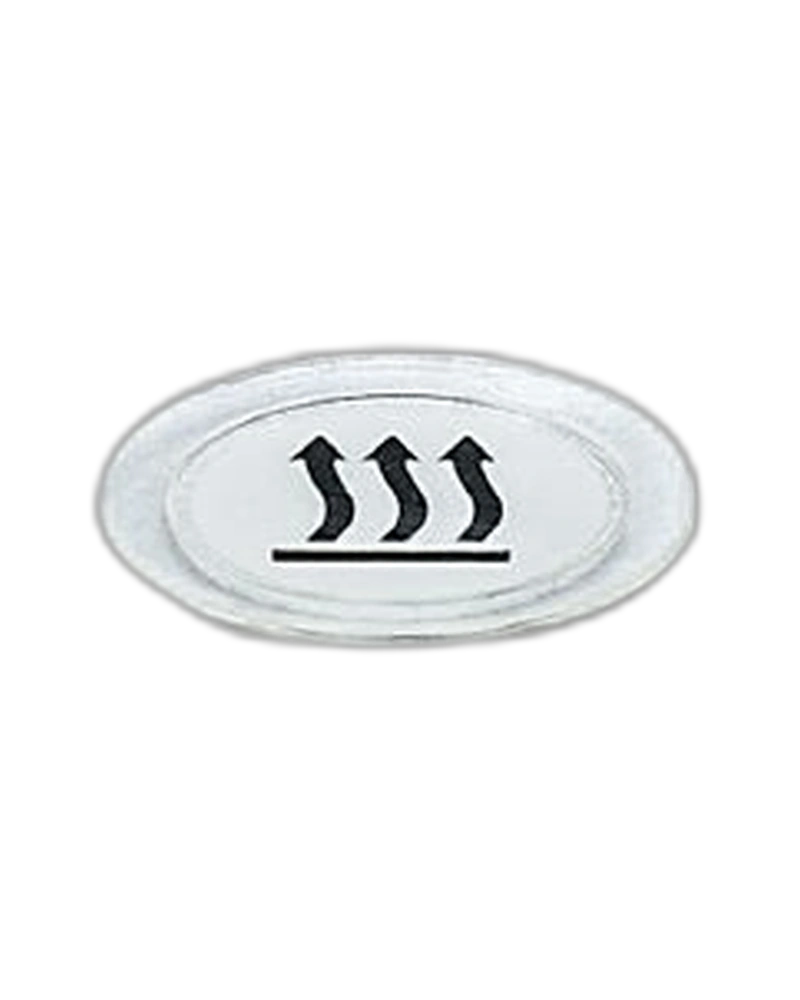

The IFM E12458 is a symbol disc designed for illuminated pushbuttons and provides a clear HEATING function marking. It is intended for KT M22 types and uses PA Grilamid TR 90UV material. The compact 15.5 mm diameter disc uses a snap-fit installation method for quick assembly. Its clear symbol helps operators identify heating-related controls in industrial operator interfaces.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12458 symbol disc is an accessory for illuminated pushbuttons used in industrial operator interfaces. The HEATING symbol provides a clear visual indication of the function assigned to a button. The disc is designed for KT M22 types and can be installed by simple snap fitting.
The symbol disc provides clear function identification on illuminated pushbuttons. Its compact construction allows it to fit into the corresponding operator interface. The PA Grilamid TR 90UV material supports robust industrial use, while the snap-fit arrangement simplifies installation.
The E12458 is designed for simple clipping into compatible touch-sensor or pushbutton assemblies. Once installed, the disc provides a permanent function marking. Its compact size makes it suitable for control panels where several operator functions need to be clearly distinguished.
Clear function symbols can improve operator understanding and reduce confusion when multiple pushbuttons are installed. The E12458 provides a dedicated HEATING marking for compatible control interfaces. Its robust polymer construction and simple installation support practical use in industrial control panels.
HEATING symbol
Designed for KT M22 types
15.5 mm diameter
PA Grilamid TR 90UV material
Snap-fit installation
Compact design
Clear operator identification
Industrial control accessory
Permanent clip connection
Pack quantity of 2
Heating control panels
Industrial operator interfaces
Machine control panels
Illuminated pushbuttons
Process heating systems
Automation control stations
Industrial machinery
Operator terminals
Machine function identification
Control cabinet interfaces
| Specification | Details |
|---|---|
| Product code | E12458 |
| Product type | Symbol disc for illuminated pushbutton |
| Model | CAP M22 SYMBOL HEATING |
| Brand | IFM |
| Category | Symbol disc |
| Application | KT M22 types |
| Symbol | HEATING |
| Diameter | 15.5 mm |
| Material | PA Grilamid TR 90UV |
| Installation | Snap-fit |
| Connection type | Clip connection |
| Removal | Not removable after snap-fit |
| Pack quantity | 2 pcs. |
| Application area | Operator interface |
| Product function | Visual identification |
| Pushbutton type | Illuminated pushbutton |
| Mounting method | Clipping |
| Construction | Polymer disc |
| Industrial suitability | Yes |
| Control-panel use | Yes |
| Machine-interface use | Yes |
| Identification function | Heating |
| Accessory type | Operator interface accessory |
| Product family | Symbol discs and surrounds |
| Brand manufacturer | IFM |
