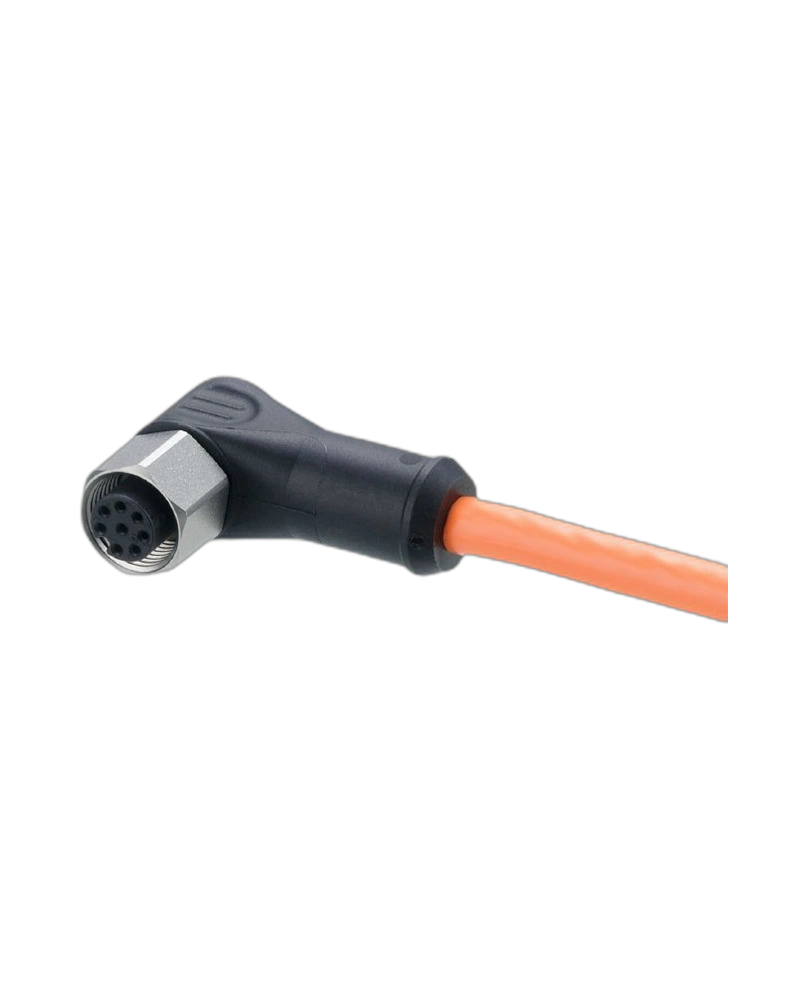

The IFM E12456 is a shielded connecting cable with an angled M12 socket designed for reliable industrial signal and power connections. It features an 8-pole A-coded M12 connector, stainless-steel locking components and a 3 m PVC cable. With IP67 protection and an operating temperature range of -25 to 80 °C, it is suitable for wet areas and food-industry applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12456 provides a ready-to-use connection between compatible sensors or automation components. Its angled M12 socket supports convenient cable routing in installations where straight connectors may be difficult to accommodate. The cable is shielded and designed for industrial environments, including applications exposed to moisture.
The cable uses an 8-pole M12 A-coded socket with stainless-steel locking hardware. The connection is designed to provide secure electrical contact and practical mechanical retention. The 3 m PVC cable provides sufficient routing flexibility for many machine installations, while the angled connector helps reduce space requirements.
The E12456 has IP67 protection and an ambient operating temperature range of -25 to 80 °C. Its screened cable and robust connector construction make it suitable for demanding industrial environments. The product is specifically indicated for wet areas and food-industry applications.
Reliable connection technology is essential for maintaining stable sensor communication. The E12456 combines a shielded cable, M12 connector and stainless-steel locking mechanism in one assembly. Its industrial construction simplifies installation while supporting reliable operation in moisture-exposed environments.
8-pole M12 socket
A-coded connection
Angled connector
3 m cable length
Shielded cable
IP67 protection
Stainless-steel locking components
PVC cable
Operating temperature -25...80 °C
Suitable for wet areas
Industrial sensor connections
Factory automation
Wet-area installations
Food-industry equipment
Machine automation
Sensor networking
Control panels
Industrial instrumentation
Production machinery
Automation cabinets
| Specification | Details |
|---|---|
| Product code | E12456 |
| Product type | Connecting cable with socket |
| Model | ADOAH080VAS0003G08 |
| Brand | IFM |
| Application | Industrial applications / wet areas |
| Special feature | Screened cable |
| Operating voltage | <30 AC / <36 DC |
| Protection class | III |
| Ambient temperature | -25...80 °C |
| Protection | IP67 |
| Cable length | 3 m |
| Cable material | PVC |
| Cable colour | Orange |
| Cable diameter | 6.6 mm |
| Core configuration | 8 x 0.25 mm² |
| Connector | 1 x M12 |
| Connector orientation | Angled |
| Coding | A |
| Contacts | 8 |
| Moulded body | PUR, black |
| Locking material | Stainless steel |
| Tightening torque | 0.7...0.9 Nm |
| Shield connection | Screen connected |
| Weight | 440 g |
| Pack quantity | 1 pcs. |
