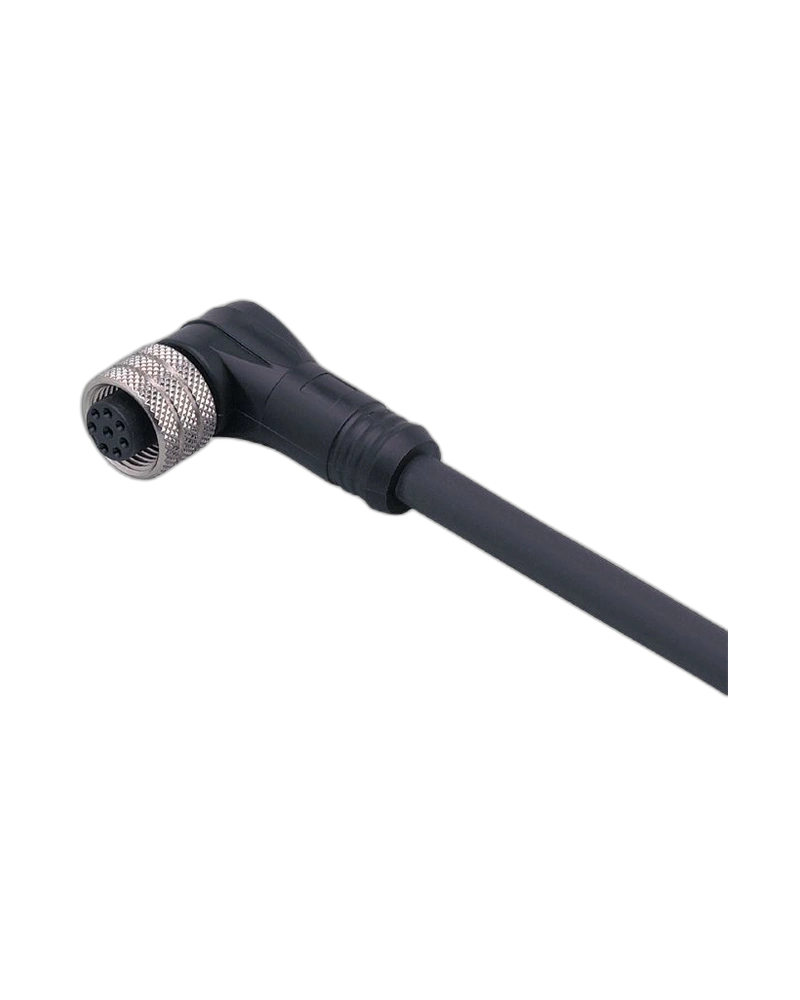

The IFM E12362 is an angled M12 connecting cable with socket designed for 8-pole sensor connections. It uses a 1 m halogen-free PUR cable and gold-plated contacts. The connector supports 30 V AC / 36 V DC and 2 A current rating. IP67 protection supports demanding industrial environments. Its angled construction is useful where cable routing space is limited.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12362 uses an angled M12 socket arrangement. This design allows the cable to leave the connector at an angle, helping in restricted machine spaces. The PUR moulded body provides mechanical support around the connector. The nickel-plated brass nut provides secure locking. Its compact design is suitable for sensor-level installation.
The cable supports 30 V AC / 36 V DC operating voltage. Its current rating is 2 A at the specified conditions. The 1 m cable contains eight 0.25 mm² conductors. Gold-plated contacts support reliable electrical connection. IP67 protection provides suitable environmental protection for industrial applications.
The cable is black, halogen-free PUR and approximately 6.2 mm in diameter. The eight-core construction supports compatible multi-wire M12 sensors. The cable length is suitable for short machine-level connections. The connector uses an A-coded interface. Correct wiring should be checked because 8-pole socket core colours may not be universally standardized.
8-pole M12 socket
1 m cable
Angled connector
PUR cable
Halogen-free
Gold-plated contacts
30 V AC
36 V DC
2 A current rating
IP67 protection
8 × 0.25 mm² conductors
Ø6.2 mm cable
Nickel-plated brass nut
Black cable
Compact sensor connection
8-pole sensors
Industrial automation
Factory automation
Machine wiring
Sensor connections
Process equipment
Control systems
Automation panels
The angled connector helps simplify cable routing in restricted spaces. Its 1 m length is suitable for compact sensor installations. Gold-plated contacts support dependable electrical connections. PUR construction provides a durable cable solution. IP67 protection supports industrial environments.
Confirm the 8-pole wiring arrangement before installation. Align the M12 connector correctly. Tighten the knurled nut to the recommended range. Avoid excessive bending at the angled connector. Inspect the cable during preventive maintenance.
| Specification | E12362 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E12362 |
| Product type | Connecting cable with socket |
| Product code | ADOAH080MSS0001H08 |
| Sensor connector | M12 |
| Pole count | 8 |
| Connector design | Angled |
| Coding | A |
| Cable length | 1 m |
| Cable material | PUR |
| Cable colour | Black |
| Conductor count | 8 |
| Conductor size | 0.25 mm² |
| Cable diameter | 6.2 mm |
| Halogen-free | Yes |
| Contact finish | Gold plated |
| Operating voltage | 30 V AC / 36 V DC |
| Current rating | 2 A |
| Protection class | III |
| Protection | IP67 |
| Ambient temperature | -25 to +80 °C |
| Body material | PUR |
| Nut material | Brass, nickel-plated |
| Tightening torque | 0.7–0.9 Nm |
| Application | Industrial automation |
| Product family | Connecting cables |
| Mechanical function | Sensor connection |
| Electrical function | Signal/power connection |
| Pack quantity | 1 |
