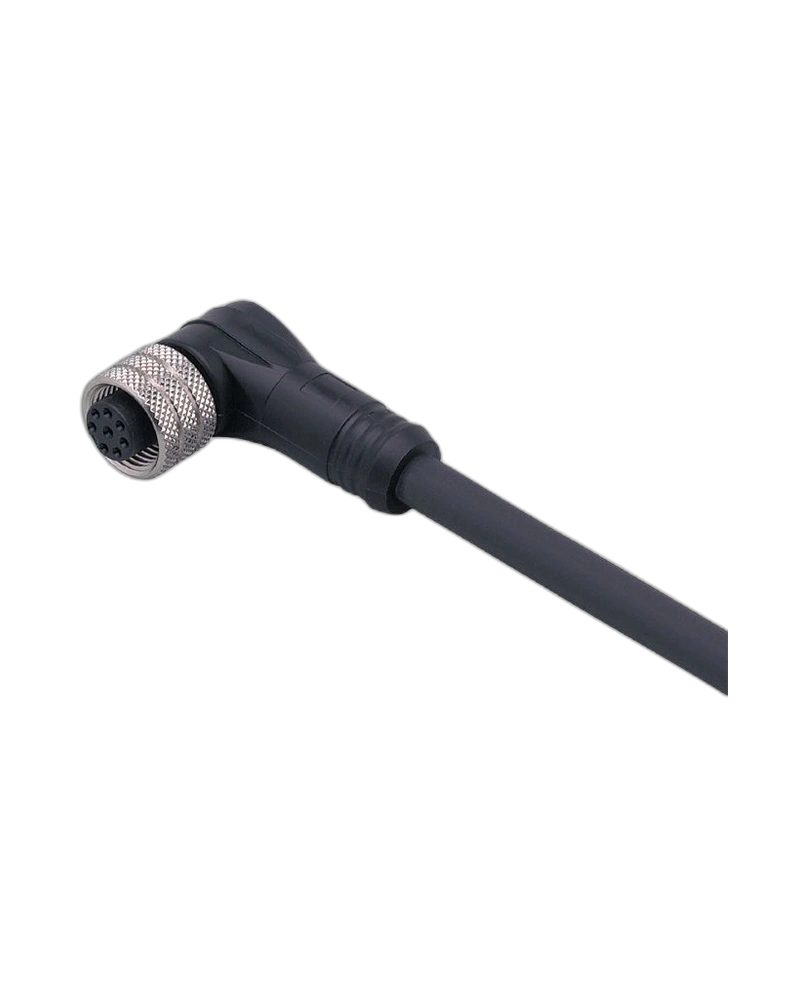

The IFM E12260 is an angled 8-pole M12 connecting cable with a 10 m PUR cable. It is designed for industrial sensor connections where extended cable routing is required. The cable supports below 30 V AC / 36 V DC and a 2 A current load. It provides IP67 protection and gold-plated contacts for reliable connection performance. The long 10 m cable length is suitable for larger machine and automation layouts.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12260 provides a 10 m black PUR cable for long-distance sensor connections. Its angled M12 socket helps route the cable efficiently around machine structures. Eight 0.25 mm² conductors provide the required multi-wire connection. The cable is free from silicone and halogen. Its pre-assembled format simplifies installation.
The cable supports below 30 V AC / 36 V DC. The maximum total current load is 2 A under the specified conditions. Gold-plated contacts support reliable signal and power connection. IP67 protection provides environmental protection for industrial installations. The connector uses a brass nickel-plated locking nut.
The 10 m length is useful when sensors are located far from control equipment. The angled connector can help reduce clearance around sensor mounting points. The PUR cable provides practical flexibility for machine routing. Cable support should be provided where long cable runs are installed. Proper wiring verification is important for 8-pole systems.
8-pole M12 socket
10 m cable
Angled connector
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Below 30 V AC
Below 36 V DC
2 A current rating
IP67 protection
8 × 0.25 mm² conductors
Ø6.8 mm cable
Nickel-plated brass nut
Extended cable reach
Long-distance sensor wiring
Industrial automation
Factory automation
Machine monitoring
Production lines
Process equipment
Control systems
Sensor networks
The E12260 provides a long 10 m connection for distributed sensor installations. Its angled connector supports efficient routing around machinery. PUR construction provides a durable industrial cable solution. Gold-plated contacts support reliable electrical connection. IP67 protection supports suitable industrial environments.
Plan the 10 m cable route before installation. Avoid unnecessary loops and sharp bends. Secure long cable sections appropriately. Check connector locking during commissioning. Inspect the cable for abrasion during preventive maintenance.
| Specification | E12260 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E12260 |
| Product type | Connecting cable with socket |
| Product code | ADOAH080MSS0010H08 |
| Connector | M12 |
| Pole count | 8 |
| Connector design | Angled |
| Coding | A |
| Cable length | 10 m |
| Cable material | PUR |
| Cable colour | Black |
| Conductors | 8 |
| Conductor size | 0.25 mm² |
| Cable diameter | 6.8 mm |
| Contact finish | Gold plated |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Operating voltage | <30 V AC / <36 V DC |
| Current rating | 2 A |
| Protection class | III |
| Protection | IP67 |
| Ambient temperature | -25 to +80 °C |
| Body material | PUR |
| Nut material | Brass, nickel-plated |
| Tightening torque | 0.7–0.9 Nm |
| Application | Industrial automation |
| Product family | Connecting cables |
| Mechanical function | Sensor connection |
| Electrical function | Multi-wire sensor connection |
| Pack quantity | 1 |
