The E12245 connection cable is an industrial cable assembly designed for reliable connection between compatible automation components. It uses a 3.7 m PUR cable and connector arrangement suitable for sensor and actuator wiring. Its compact construction, industrial connector interfaces and durable cable design make it suitable for machine building, factory automation and demanding field connection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

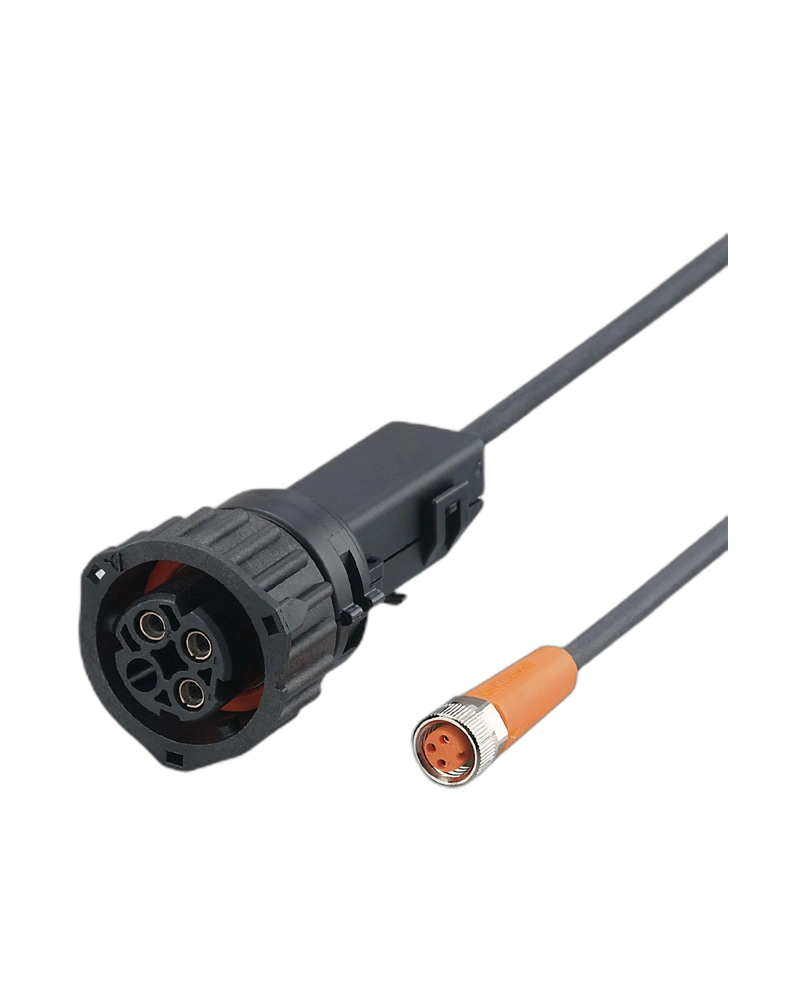

The E12245 is an IFM industrial connection cable with a 3.7 m PUR cable. The cable assembly uses a 3-pin M8 connector on one side and a straight bayonet connector on the other. The cable is halogen-free, black and designed for practical industrial wiring applications where dependable connector interfaces are required.
The cable uses a 3.7 m PUR cable with a 3 x 0.25 mm² conductor arrangement. The black cable construction supports organized industrial installation.
The cable features a straight 3-pin M8 connector with A coding and gold-plated contacts, combined with a straight bayonet connection.
The cable is designed for machine and automation wiring where compact connector interfaces and reliable cable routing are required.
The 3.7 m length provides useful flexibility when connecting devices positioned at different points within machinery.
IFM connection cable
VDOGF030MSS03,7H03DOGR030PLS model
3.7 m cable length
PUR cable
Halogen-free cable
3 x 0.25 mm² conductors
3-pin M8 connector
A-coded connector
Gold-plated contacts
Straight connector design
Industrial automation
Sensor connections
Actuator connections
Machine building
Factory automation
Control equipment
Field wiring
Industrial electrical installations
| Specification | Details |
|---|---|
| Product Code | E12245 |
| Product Type | Connection cable |
| Model | VDOGF030MSS03,7H03DOGR030PLS |
| Cable Length | 3.7 m |
| Cable Type | PUR |
| Cable Colour | Black |
| Cable Diameter | 3.7 mm |
| Conductors | 3 x 0.25 mm² |
| Connector | M8, 3-pin, straight |
| Coding | A |
| Contacts | Gold-plated |
| Brand | IFM |
