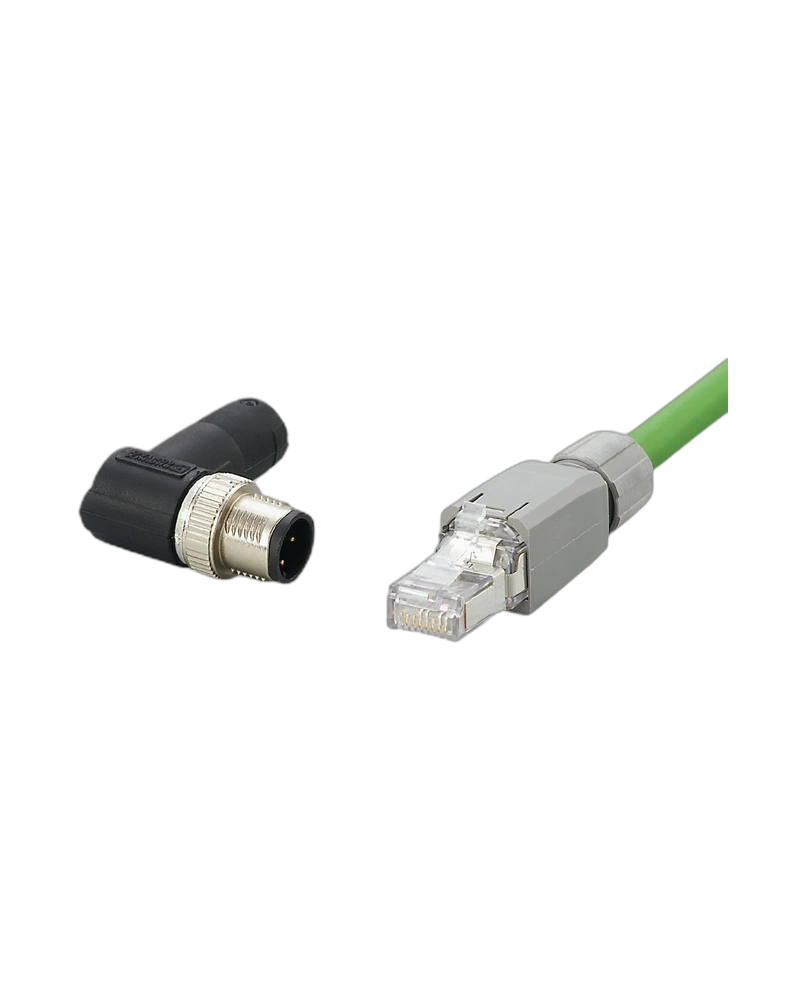

The E12226 Ethernet connection cable is a D-coded Ethernet cable designed for industrial networking and automation applications. It features gold-plated contacts, screened cable construction and a crossover patch configuration. The cable uses an angled 4-pole M12 connector and provides IP65/IP67 protection at the M12 side. It is suitable for industrial Ethernet, machine networking and factory automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12226 is an Ethernet connection cable designed for industrial automation networking. It uses a D-coded connection and crossover patch cable configuration, with gold-plated contacts and a screened cable. The angled M12 connector has four gold-plated contacts and supports industrial Ethernet installations requiring reliable data connectivity and robust field-level cable connections.
The cable provides a practical network connection for compatible industrial automation and Ethernet devices.
The screened cable construction helps support organized industrial networking where protection against electrical interference is important.
The angled D-coded M12 connector features gold-plated contacts and a nickel-plated diecast zinc locking arrangement for industrial installation.
Ethernet connection cable
Model VSTAN040ZDS0002L04STGP040--S
D-coded Ethernet design
Crossover patch cable
Screened cable
Gold-plated contacts
Angled M12 connector
4 contacts
IP65/IP67 protection
Suitable for industrial networking
Industrial Ethernet
Factory automation
Industrial networking
Machine communication
Automation controllers
Industrial switches
Machine building
Factory equipment
| Specification | Details |
|---|---|
| Product Code | E12226 |
| Product Type | Ethernet connection cable |
| Model | VSTAN040ZDS0002L04STGP040--S |
| Cable Type | Ethernet |
| Coding | D-coded |
| Configuration | Crossover patch cable |
| Contacts | 4 |
| Connector | M12, angled |
| Contact Material | Gold-plated |
| Cable | Screened |
| Operating Voltage | 48 V AC / 60 V DC |
| Max. Current Load | 1 A |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25 to 70 °C |
| Connector Material | TPU / PA |
| Locking Material | Nickel-plated diecast zinc |
