The E12215 connecting cable with plug is designed for mobile industrial applications and features a 6 m shielded cable with an angled 5-pole A-coded M12 plug. It includes gold-plated contacts and an integrated 120 Ω CAN bus terminating resistor. The halogen-free, silicone-free construction and IP68 protection make it suitable for demanding automation, CAN bus and mobile machinery applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

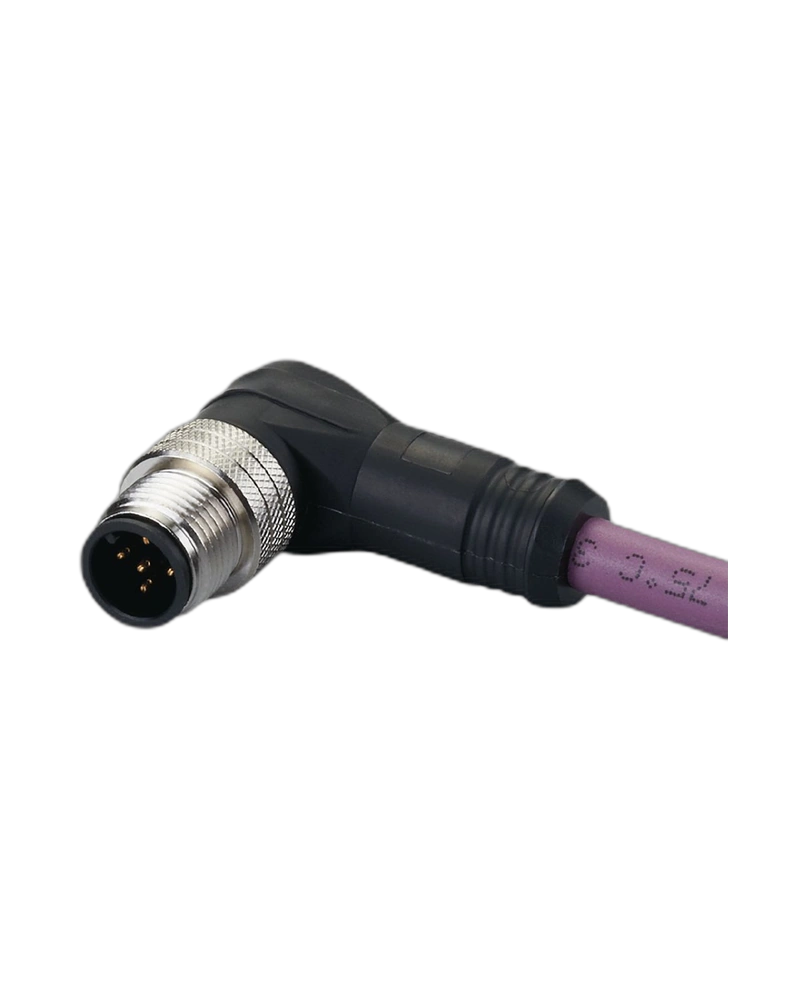

The E12215 is a connecting cable with an angled M12 plug designed for industrial and mobile applications. It features a 6 m shielded PVC cable, gold-plated contacts and an integrated 120 Ω CAN bus terminating resistor in the M12 connector. Its IP68 protection and halogen-free, silicone-free construction make it suitable for demanding automation environments.
The integrated 120 Ω terminating resistor makes the cable suitable for compatible CAN bus network installations where termination is required.
The cable is specified for mobile applications and uses a shielded cable construction to support organized signal connectivity in moving equipment.
IP68 protection, gold-plated contacts and robust connector materials support reliable use in demanding industrial environments.
Connecting cable with plug
Model ASTGA050MSS0006C04
6 m cable length
5-pole M12 plug
A-coded connector
Angled connector design
Integrated 120 Ω CAN bus resistor
Gold-plated contacts
Shielded cable
IP68 protection
CAN bus systems
Industrial automation
Mobile machinery
Factory automation
Machine building
Automation controllers
Industrial networking
Vehicle and equipment systems
| Specification | Details |
|---|---|
| Product Code | E12215 |
| Product Type | Connecting cable with plug |
| Model | ASTGA050MSS0006C04 |
| Cable Length | 6 m |
| Cable Type | PVC, shielded |
| Connector | M12, angled |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Protection | IP68 |
| CAN Termination | Integrated 120 Ω resistor |
| Cable Diameter | 6.7 mm |
| Cable Conductors | 2 × 0.34 mm² + 2 × 0.25 mm² |
| Ambient Temperature | -25 to 90 °C |
| Special Features | Halogen-free, silicone-free |
