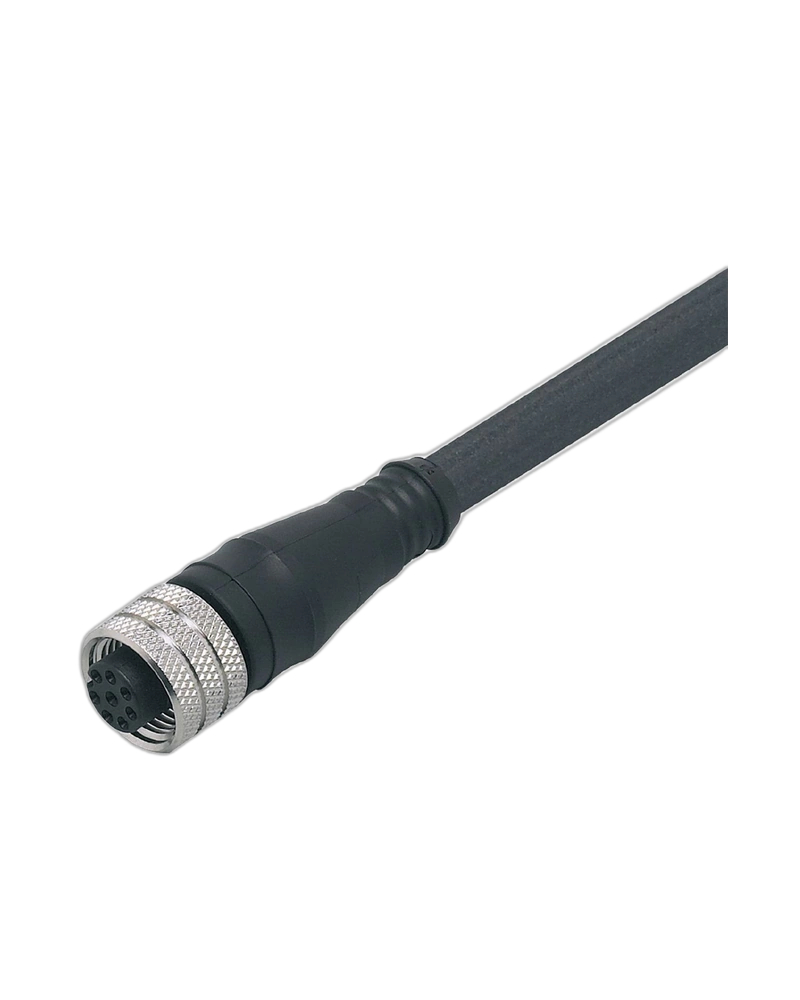

The E12167 connecting cable with socket is a 10 m industrial cable assembly designed for factory automation and industrial applications. It features an 8-pole A-coded M12 straight socket, PUR black cable and IP67 protection. The preassembled design simplifies sensor and device connections while supporting reliable field installation. It is suitable for machine building, automation equipment and organized industrial wiring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12167 provides a preconfigured 10 m connecting cable with an 8-pole M12 socket for industrial automation. It uses a straight A-coded connector with eight contacts, PUR black cable and a nickel-plated brass locking arrangement. The assembly is designed for industrial applications and provides convenient long-distance connectivity between compatible sensors and automation components.
The 10 m cable length provides additional reach for installations where automation components are positioned away from control or connection points.
The PUR cable, TPU connector body and nickel-plated brass locking nut support dependable industrial installation.
The cable is suitable for connecting compatible sensors and automation devices while reducing field wiring effort.
Connecting cable with socket
Model ADOGH080MSS0010B08
10 m cable length
8-pole M12 socket
A-coded connector
Straight connector
PUR black cable
IP67 protection
TPU connector body
Nickel-plated brass locking nut
Industrial automation
Factory automation
Sensor connections
Machine building
Industrial machinery
Control systems
Automation panels
Field device connections
| Specification | Details |
|---|---|
| Product Code | E12167 |
| Product Type | Connecting cable with socket |
| Model | ADOGH080MSS0010B08 |
| Cable Length | 10 m |
| Cable Material | PUR, black |
| Cable Diameter | 6.6 mm |
| Connector | M12, straight |
| Coding | A-coded |
| Contacts | 8 |
| Protection | IP67 |
| Operating Voltage | <30 V AC / <36 V DC |
| Max. Current Load | 2 A |
| Cable Size | 8 × 0.25 mm² |
| Connector Body | TPU |
| Locking Nut | Nickel-plated brass |
| Pack Quantity | 1 pc. |
