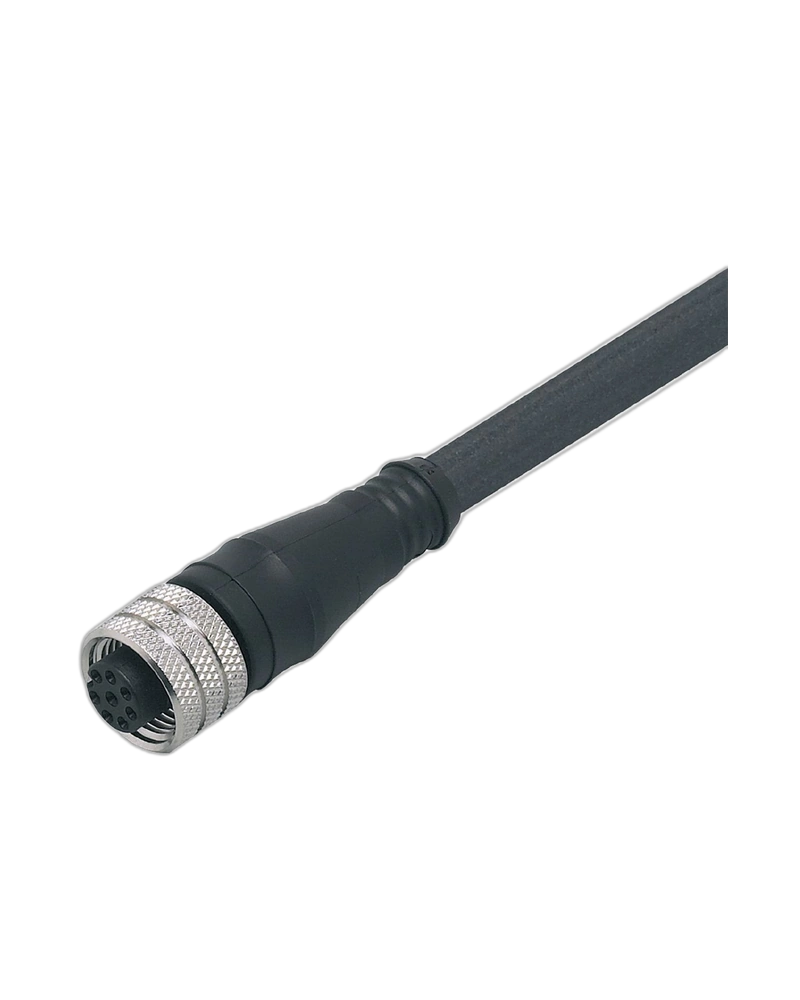

The E12166 connecting cable with socket is designed for industrial automation and factory automation applications requiring an 8-pole M12 socket connection. It features a 5 m PUR cable and an A-coded straight M12 connector with eight contacts. The cable is suitable for demanding installations and is designed for cable-chain applications, making it useful for moving industrial equipment and automated machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E12166 is a preassembled connecting cable with an 8-pole M12 socket for industrial automation applications. It uses a 5 m PUR cable and a straight A-coded M12 socket with eight contacts. The cable is suitable for cable-chain applications and provides a practical solution for sensor and automation connections where flexibility, organized wiring and reliable industrial connectivity are required.
The cable provides a convenient connection between compatible automation devices and sensors, reducing the need for field assembly.
The cable is suitable for cable-carrier applications and supports flexible movement in automated machinery. IFM specifies a minimum bend radius of 15 times the cable diameter and more than one million bending cycles.
The IP67 protection rating, PUR cable construction and nickel-plated brass locking nut support use in industrial environments.
Connecting cable with socket
Model ADOGH080MSS0005B08
5 m cable length
8-pole M12 socket
A-coded connector
Straight connector design
PUR black cable
Suitable for cable-chain applications
IP67 protection
Nickel-plated brass locking nut
Industrial automation
Factory automation
Sensor connections
Machine building
Cable-chain systems
Moving machinery
Industrial control systems
Automation equipment
| Specification | Details |
|---|---|
| Product Code | E12166 |
| Product Type | Connecting cable with socket |
| Model | ADOGH080MSS0005B08 |
| Cable Length | 5 m |
| Cable Material | PUR, black |
| Connector | M12, straight |
| Coding | A-coded |
| Contacts | 8 |
| Protection | IP67 |
| Operating Temperature | -40 to 80 °C |
| Operating Voltage | <30 V AC / <36 V DC |
| Max. Current Load | 2 A |
| Cable Size | 8 × 0.25 mm² |
| Connector Body | TPU, black |
| Locking Nut | Nickel-plated brass |
| Pack Quantity | 1 pc. |
