The IFM E11807 connecting cable with socket is a 5 m PUR cable with a straight eight-contact M12 socket designed for industrial automation applications. Its robust PUR construction, IP68 protection and nickel-plated brass locking nut support reliable operation in demanding environments. It is suitable for sensors, machine control, factory automation and industrial field connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

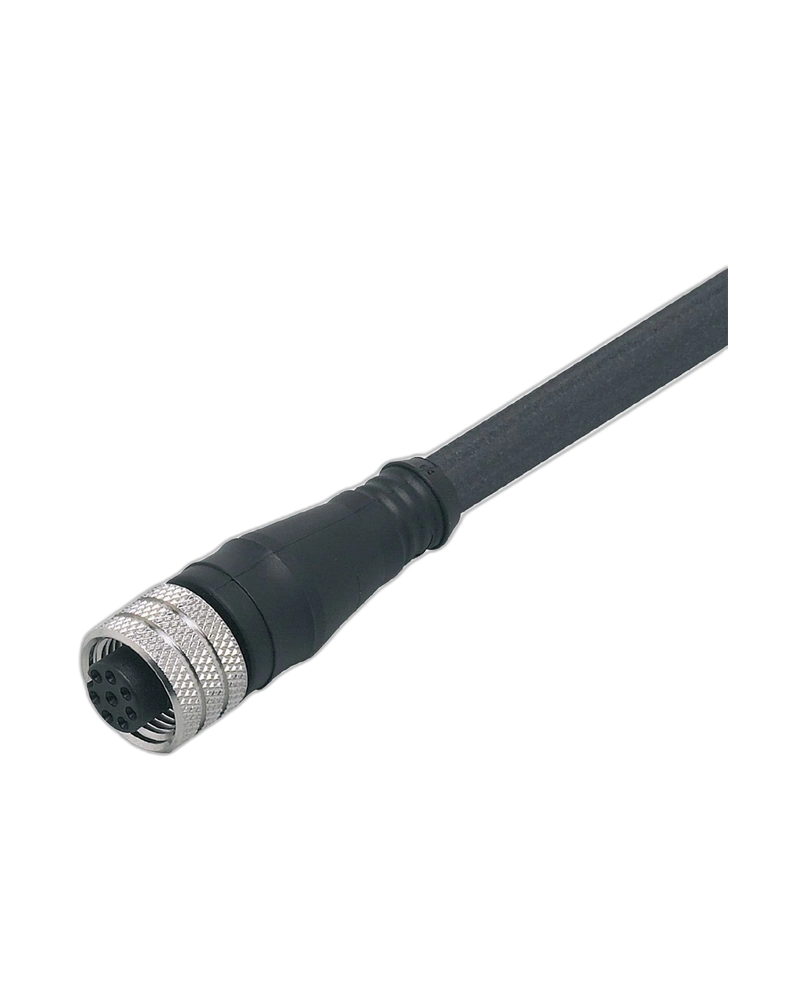

The IFM E11807 connecting cable with socket provides a dependable 5 m connection for industrial automation equipment. It features a black PUR cable, an eight-contact straight M12 A-coded socket and a robust connector body. IP68 protection supports demanding industrial applications, while the extended cable length provides useful installation flexibility for sensors and field devices.
The cable provides a straight M12 A-coded socket with eight contacts for compatible industrial equipment.
PUR construction and IP68 protection provide reliable performance in demanding industrial environments.
The 5 m cable length provides convenient reach for machine wiring and field installations.
E11807 provides a robust eight-contact M12 connection with extended cable length for industrial automation systems.
5 m cable length
PUR cable
Black cable
Straight M12 socket
A-coded connection
8 contacts
PUR moulded body
Nickel-plated brass nut
IP68 protection
Industrial automation design
Industrial automation
Factory automation
Sensor systems
Machine control
Field devices
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | E11807 |
| Product Type | Connecting cable with socket |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Diameter | 6.2 mm |
| Conductors | 8 × 0.25 mm² |
| Connector | M12 |
| Configuration | Straight |
| Coding | A |
| Contacts | 8 |
| Protection | IP68 |
| Ambient Temperature | -25 to 80 °C |
| Connector Body | PUR |
