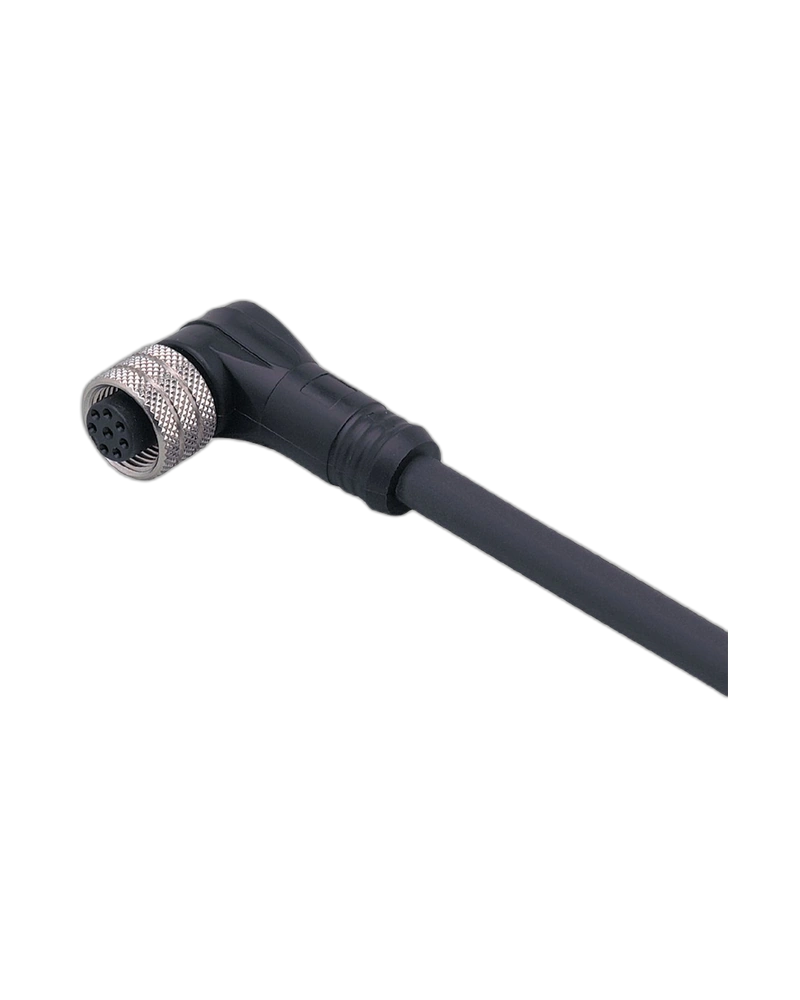

The IFM E11806 connecting cable with socket is a 10 m shielded PUR cable with an angled M12 socket and eight contacts. Its gold-plated contacts, IP67 protection and robust PUR construction provide dependable connectivity for industrial applications. The cable is suitable for sensors, automation equipment, machine control and installations requiring extended cable length and screened signal transmission.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM E11806 is a 10 m connecting cable with an angled M12 socket designed for industrial automation applications. Its shielded PUR cable helps support reliable signal transmission, while the gold-plated contacts provide dependable electrical connectivity. The angled connector supports convenient cable routing, making the cable suitable for machine wiring, sensors and industrial field devices.
The cable uses an angled M12 A-coded socket with eight contacts and a shielded cable arrangement for compatible industrial devices.
PUR construction, IP67 protection and gold-plated contacts support dependable operation in industrial environments.
The 10 m cable length provides extended installation reach, while the angled connector helps simplify cable routing around machinery.
E11806 combines long cable length, shielding, an angled M12 connection and industrial protection for demanding automation installations.
10 m cable length
PUR cable
Black cable
Shielded construction
Angled M12 socket
A-coded connection
8 contacts
Gold-plated contacts
IP67 protection
Nickel-plated brass locking nut
Industrial automation
Sensor connections
Machine control
Factory automation
Signal transmission
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | E11806 |
| Product Type | Connecting cable with socket |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 6.2 mm |
| Conductors | 8 × 0.25 mm² |
| Connector | M12 |
| Configuration | Angled |
| Coding | A |
| Contacts | 8, gold-plated |
| Protection | IP67 |
| Ambient Temperature | -25 to 80 °C |
| Shield | Connected |
