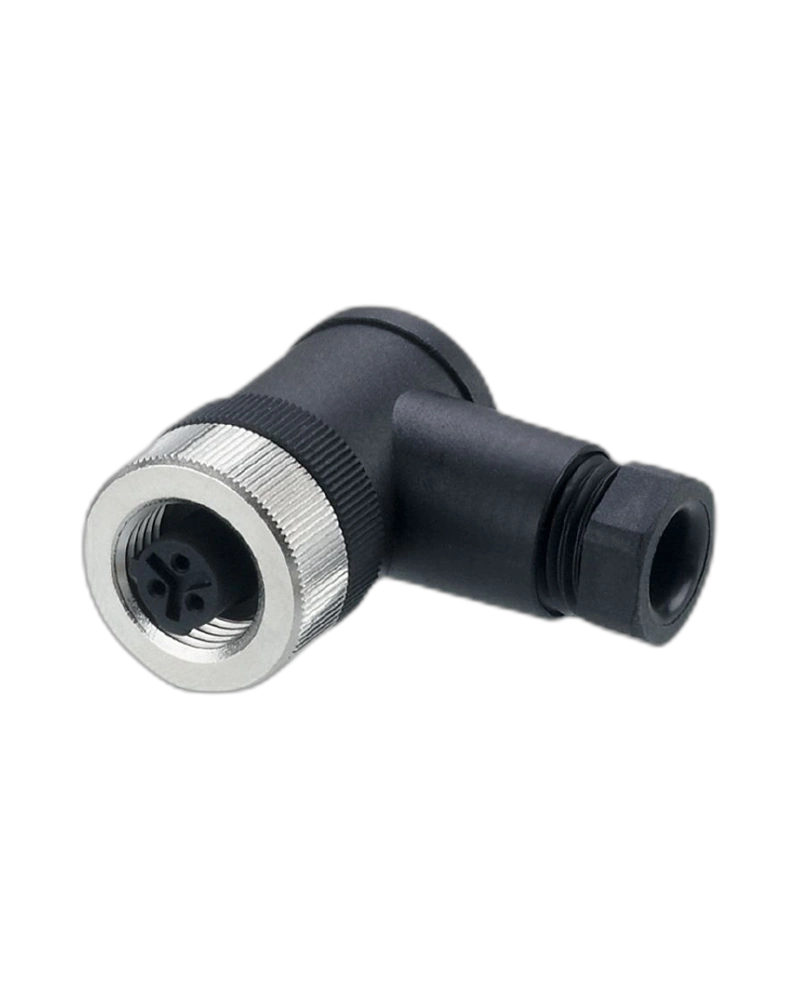

The IFM E11795 wirable socket is an angled field-wirable connector designed for compatible 1/2-inch sensor connections. Its silicone-free and halogen-free construction, gold-plated contacts and IP67 protection support reliable industrial operation. The PA body and nickel-plated brass nut provide a practical connection solution for sensors, factory automation, machine control and industrial equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM E11795 is an angled wirable socket designed for sensors with a 1/2-inch connector. Its field-wirable construction allows suitable cables to be terminated during installation, providing flexibility for machine wiring. The connector features gold-plated contacts, a PA housing and IP67 protection, making it suitable for industrial applications where reliable connection and practical cable installation are required.
The angled design supports convenient cable routing, particularly where space around the sensor connection is limited.
IP67 protection, gold-plated contacts and a robust PA housing provide dependable performance in industrial environments.
The wireable construction allows suitable cable lengths to be prepared according to individual machine layouts.
E11795 is a useful choice for 1/2-inch sensor applications requiring an angled, field-wirable industrial connector.
Angled wirable socket
1/2-inch connector
Gold-plated contacts
PA housing
Nickel-plated brass nut
IP67 protection
Silicone-free construction
Halogen-free construction
Flexible cable termination
Industrial automation compatible
Industrial sensors
Factory automation
Machine control
Field devices
Sensor wiring
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | E11795 |
| Product Type | Wirable socket |
| Connector | 1/2 inch |
| Configuration | Angled |
| Operating Voltage | 250 V AC |
| Current Rating | 4 A |
| Protection | IP67 |
| Ambient Temperature | -25 to 85 °C |
| Housing | PA |
| Nut | Nickel-plated brass |
| Cable Connection | Wirable |
| Cable Diameter | 4–6 mm |
| Conductor Size | Up to 0.75 mm² |
