The IFM E11770 wirable plug is a straight M12 connector designed for flexible electrical connection in industrial automation systems. It features five gold-plated contacts, a PA moulded body and IP68 protection. The screw-terminal design accepts suitable cable sizes and provides a practical field-wiring solution for sensors, machines, factory automation equipment and industrial control installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

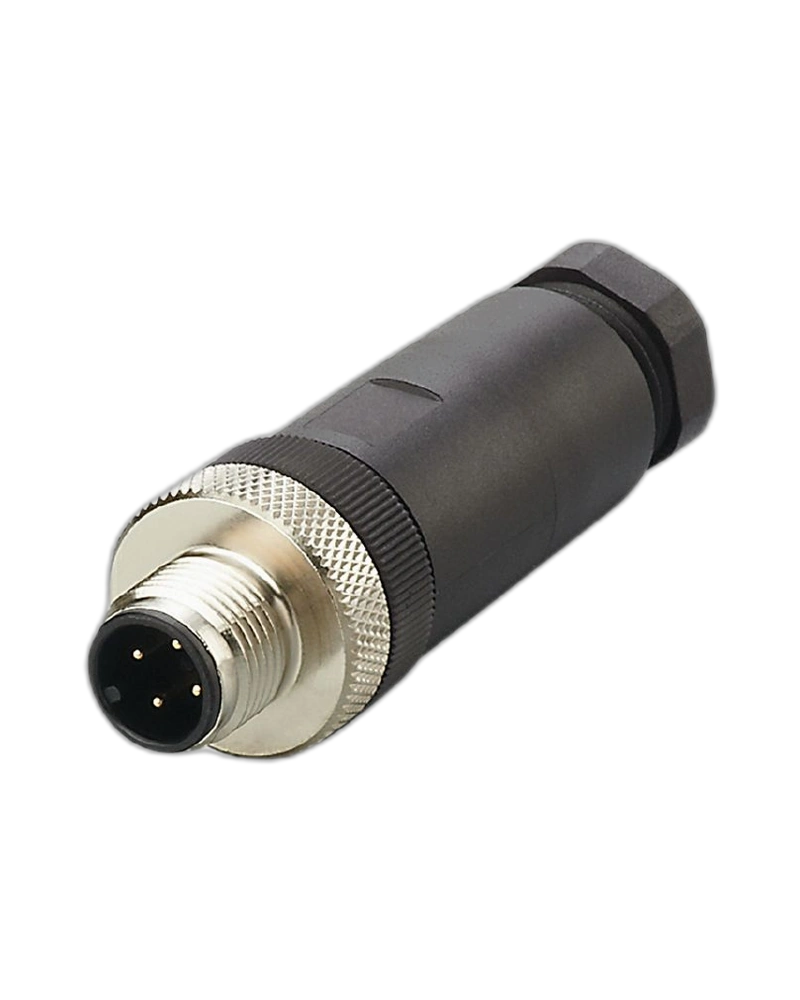

The IFM E11770 is a field-wirable straight M12 plug designed for dependable electrical connections in industrial and factory automation applications. Its five gold-plated contacts support reliable signal transmission, while the PA housing and nickel-plated brass locking nut provide a robust connection arrangement. IP68 protection allows use in demanding industrial environments.
The plug uses a straight M12 A-coded connection with screw terminals, allowing compatible cables to be terminated directly during installation.
The IP68-rated construction and gold-plated contacts support reliable operation in demanding industrial environments. The PA body provides a durable and lightweight connector construction.
The field-wirable design allows installers to select and terminate suitable cables according to individual machine and automation requirements.
E11770 is a practical solution for custom M12 connections where flexible wiring, reliable contacts and strong environmental protection are required.
Straight M12 connector
A-coded connection
5 gold-plated contacts
Field-wirable design
Screw-terminal connection
PA moulded body
Nickel-plated brass locking nut
IP68 protection
Silicone-free construction
Suitable for industrial automation
Industrial automation
Factory automation
Sensor connections
Machine control
Field wiring
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | E11770 |
| Product Type | Wirable plug |
| Connector | M12 |
| Configuration | Straight |
| Coding | A |
| Contacts | 5, gold-plated |
| Housing | PA |
| Protection | IP68 |
| Operating Voltage | <125 AC/DC |
| Current Rating | 4 A |
| Ambient Temperature | -25 to 100 °C |
| Cable Connection | Screw terminals |
| Cable Diameter | 6–8 mm |
