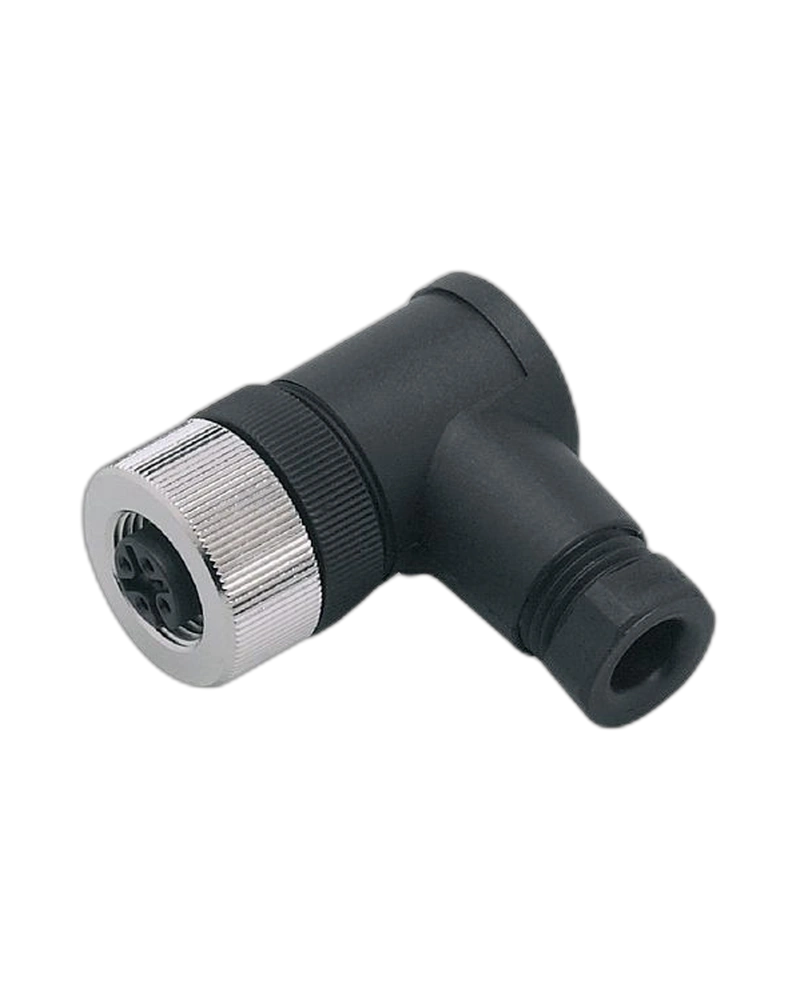

The E11714 is an angled M12 wirable socket designed for reliable field wiring in industrial automation systems. Its angled configuration helps simplify installation where space around the connector is restricted. The socket uses screw terminals for secure cable termination. Gold-plated contacts support reliable electrical connections, while the PA housing and nickel-plated brass locking components provide an industrial construction. It is suitable for demanding sensor and machine-wiring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The SDOAH050MSSFKPG uses an angled M12 connector arrangement. The angled design helps direct connected cable routing away from the installation point. This can be useful inside compact machines and control assemblies. The connector uses a PA moulded body with nickel-plated brass locking hardware. The configuration supports secure connection of compatible industrial equipment.
The socket uses screw terminals, allowing installers to connect conductors directly. This makes it useful when custom cable lengths are required. Correct conductor preparation and terminal tightening are important for stable operation. The gold-plated contacts support dependable electrical connection. Proper strain relief should be used during installation.
The connector is designed for demanding industrial environments. Its high protection level helps protect the connection from environmental conditions within its specified rating. The wide operating-temperature design supports a broad range of machine installations. Its compact construction allows integration into automation equipment. It is suitable for both new installations and maintenance replacement.
Wirable socket
SDOAH050MSSFKPG
M12 connector
Angled design
Screw terminals
Gold-plated contacts
PA moulded body
Nickel-plated brass locking
Field-wireable
Industrial construction
High protection level
Wide temperature range
Industrial sensors
Machine automation
Factory automation
Field wiring
Control equipment
Sensor replacement
Machine building
Compact installations
Automation panels
Industrial equipment
Maintenance
Retrofit projects
Prepare conductors according to the terminal requirements. Tighten screw terminals securely. Ensure correct connector alignment. Protect cable routing from mechanical stress. Verify the completed electrical connection.
Inspect the screw terminals during service. Check the housing and locking nut for damage. Keep contacts clean. Inspect connected cables for wear. Replace the connector if damage affects electrical reliability.
| Specification | Details |
|---|---|
| Product Code | E11714 |
| Product Type | Wirable Socket |
| Product Name | SDOAH050MSSFKPG |
| Brand | IFM |
| Connector Type | M12 |
| Connector Design | Angled |
| Wiring Type | Field-wireable |
| Terminal Type | Screw terminals |
| Contact Type | Gold-plated |
| Housing Material | PA |
| Locking Material | Brass |
| Locking Finish | Nickel-plated |
| Connector Function | Sensor connection |
| Application | Industrial automation |
| Machine Integration | Yes |
| Sensor Integration | Yes |
| Field Wiring | Yes |
| Factory Automation | Yes |
| Control Equipment | Suitable |
| Maintenance | Suitable |
| Replacement | Suitable |
| Installation | Industrial |
| Cable Termination | Screw terminal |
| Mechanical Retention | Locking nut |
| Product Form | Wirable connector |
| Connector Orientation | Angled |
| Industrial Environment | Suitable |
| Pack Quantity | 1 piece |
