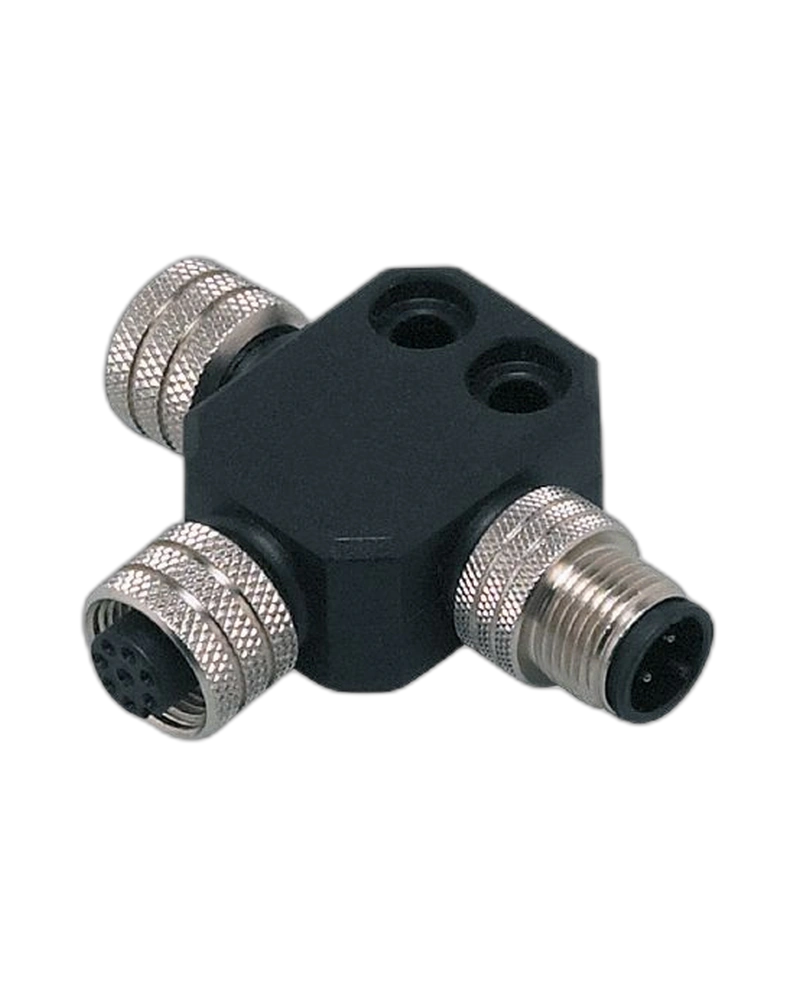

The E11696 T-splitter is a compact industrial connection component designed for distributing connections in automation systems. It is intended for pressure sensors and industrial factory-automation applications. The splitter uses a PUR housing and supports a supply voltage below 30 V AC or below 36 V DC. Its combined current load is specified at 3 A. The product provides IP68 protection and an ambient temperature range of -25 to 90 °C.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The Y-SPLITTER/STM12/2XUS provides a practical branching connection for compatible industrial devices. Its arrangement allows multiple connection paths to be integrated into a compact assembly. The connector orientation is designed for appropriate sensor installation. The PUR housing provides an integrated industrial construction. The splitter is suitable for pressure-sensor and factory-automation applications.
The E11696 supports supply voltages below 30 V AC and below 36 V DC. The current load is specified at 3 A per location and 3 A combined. This makes it suitable for compatible low-voltage industrial connection systems. The connected circuit should always remain within the stated current limits. Proper wiring is required for dependable operation.
The splitter has IP68 protection for suitable industrial environments. Its ambient temperature range is -25 to 90 °C. The housing uses PUR material and the documented weight is approximately 38 g. The connector orientation is specified for vertical sensor arrangements. Its compact construction is suitable for factory automation installations.
T-splitter
Y-SPLITTER/STM12/2XUS
Pressure-sensor application
Industrial automation
PUR housing
Below 30 V AC
Below 36 V DC
3 A current load
IP68 protection
-25 to 90 °C range
Compact design
Industrial connection distribution
Pressure sensors
Factory automation
Industrial automation
Sensor distribution
Machine wiring
Control systems
Production machinery
Automation equipment
Sensor networks
Machine building
Maintenance
Connection branching
Confirm the compatible sensor interfaces before connection. Keep the total electrical load within the specified limit. Align connectors correctly before tightening. Protect cables from excessive mechanical stress. Verify the complete connection before commissioning.
Inspect connector interfaces regularly. Check the PUR housing for damage. Verify locking components remain secure. Inspect connected cables for abrasion. Replace the splitter if physical damage affects safe connection.
| Specification | Details |
|---|---|
| Product Code | E11696 |
| Product Type | T-Splitter |
| Product Name | Y-SPLITTER/STM12/2XUS |
| Brand | IFM |
| Application | Pressure sensors |
| Secondary Application | Factory automation |
| Housing Material | PUR |
| Supply Voltage AC | <30 V AC |
| Supply Voltage DC | <36 V DC |
| Current Load per Location | 3 A |
| Combined Current Load | 3 A |
| Protection Rating | IP68 |
| Ambient Temperature | -25 to 90 °C |
| Weight | Approx. 38 g |
| Connector Type | Splitter connection |
| Connection Arrangement | Y/T splitter |
| Connector Orientation | A/B vertical orientation |
| Sensor Integration | Yes |
| Machine Integration | Yes |
| Factory Automation | Yes |
| Industrial Automation | Yes |
| Mounting | Connector-mounted |
| Electrical Function | Connection distribution |
| Mechanical Function | Multi-connection interface |
| Housing Type | Moulded |
| Product Form | Splitter |
| Installation Environment | Industrial |
| Pack Quantity | 1 piece |
