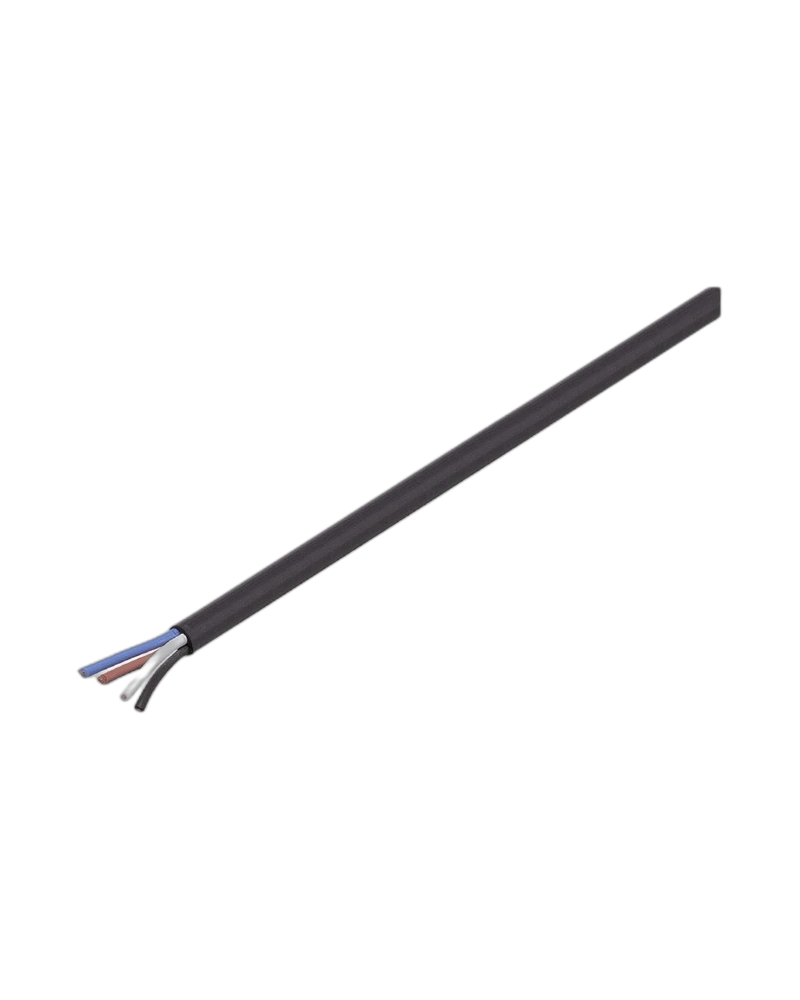

The E11685 is a 50 m industrial bulk cable with PUR insulation and four 0.34 mm² conductors. It is supplied in black and has an approximately 4.9 mm cable diameter. The cable is halogen-free and suitable for drag-chain applications. It supports more than 5 million bending cycles under the specified conditions. The cable is designed for industrial machine wiring and dynamic automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The cable contains four 0.34 mm² conductors and uses a PUR outer construction. Its 50 m length allows installers to cut the required length for individual machine applications. The black cable jacket provides a conventional industrial appearance. The cable is designed for flexible use and controlled mechanical movement. It is suitable for custom cable assemblies and machine wiring.
E11685 is suitable for drag-chain use and supports more than 5 million bending cycles under the specified test conditions. The minimum bending radius for flexible use is 10 times the cable diameter. Travel speed can reach up to 3.3 m/s under the stated conditions. Torsional strain is specified at ±180°/m. These characteristics make the cable suitable for moving automation equipment.
The cable has an ambient temperature range of -40 to 90 °C. It is halogen-free and free from silicone according to the product information. The PUR construction supports industrial mechanical requirements. Its cable design is suitable for machine and factory automation environments. Correct installation remains important for achieving the intended operating life.
50 m cable length
PUR cable
4 × 0.34 mm² conductors
Black colour
Approximately 4.9 mm diameter
Halogen-free
Silicone-free
Drag-chain suitable
More than 5 million bending cycles
Flexible cable construction
Industrial automation cable
Suitable for dynamic routing
Drag-chain wiring
Machine automation
Factory automation
Robotic equipment
Moving machine sections
Custom sensor cables
Control wiring
Machine building
Industrial equipment
Cable assembly production
Automation retrofits
Replacement cable
Maintain the recommended bending radius. Avoid sharp cable routing. Use suitable cable guides for moving applications. Prevent crushing and excessive tensile loading. Follow the specified dynamic movement conditions.
Inspect the cable for jacket wear and mechanical damage. Check moving sections for abnormal bending. Verify cable routing regularly. Replace sections showing severe abrasion or deformation. Proper cable guidance improves service life.
| Specification | Details |
|---|---|
| Product Code | E11685 |
| Product Type | Bulk Cable |
| Product Name | CABLE/50M/PUR/4X0,34/BK |
| Brand | IFM |
| Cable Length | 50 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Conductor Count | 4 |
| Conductor Size | 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Conductor Material | PP construction |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Drag-chain Suitable | Yes |
| Bending Cycles | >5 million |
| Minimum Bending Radius | 10 × cable diameter |
| Maximum Travel Speed | 3.3 m/s under specified conditions |
| Maximum Acceleration | 5 m/s² under specified conditions |
| Torsional Strain | ±180°/m |
| Ambient Temperature | -40 to 90 °C |
| Application | Industrial automation |
| Cable Type | Round industrial cable |
| Installation | Fixed/dynamic |
| Machine Integration | Yes |
| Control Wiring | Suitable |
| Sensor Wiring | Suitable |
| Product Form | Bulk cable |
| Pack Quantity | 1 piece |
