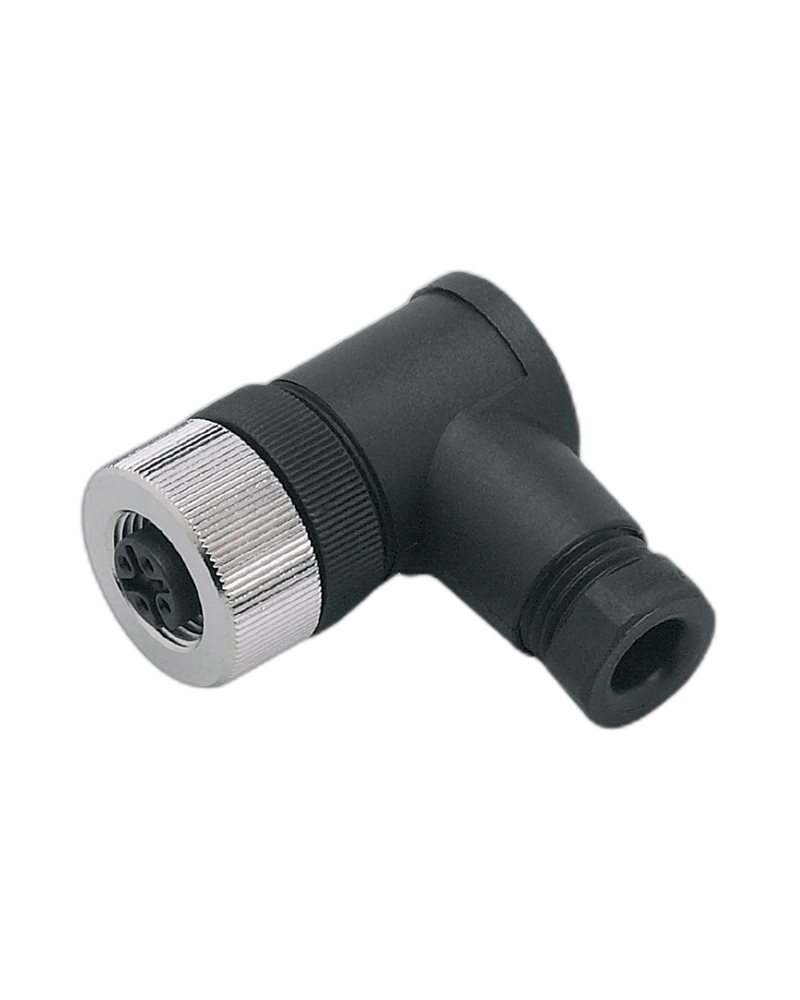

The IFM E11658 wirable socket is an angled M12 connector designed for flexible cable termination in industrial automation systems. Its gold-plated contacts support dependable electrical connections, while the PA housing and IP68 protection provide reliable performance in demanding environments. The screw-terminal design makes it suitable for sensors, field devices, machine control and industrial automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM E11658 is an angled, field-wirable M12 socket designed for convenient connection of compatible sensors and automation equipment. Its screw-terminal construction provides installation flexibility, while gold-plated contacts support dependable electrical performance. The PA housing and IP68 protection make the connector suitable for demanding factory automation, machine control and industrial sensor applications.
The angled M12 socket provides convenient cable routing where space around the sensor or machine connection is limited. Screw terminals allow flexible cable termination.
Gold-plated contacts provide dependable electrical connection, while the PA housing and IP68 protection support industrial use in demanding environments.
E11658 is useful where an angled connector arrangement can improve cable routing and installation flexibility around industrial sensors.
M12 angled socket
A-coded connection
Gold-plated contacts
PA housing
Brass nickel-plated nut
IP68 protection
Screw-terminal connection
Cable diameter 6–8 mm
Supports up to 0.75 mm² conductors
Field-wirable design
Industrial sensors
Factory automation
Machine control
Field devices
Sensor connections
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | E11658 |
| Product Type | Wirable socket |
| Connector | M12 |
| Configuration | Angled |
| Contacts | Gold-plated |
| Housing | PA |
| Protection | IP68 |
| Ambient Temperature | -25 to 100 °C |
| Cable Diameter | 6–8 mm |
| Cable Connection | Screw terminals |
| Max. Conductor Size | 0.75 mm² |
