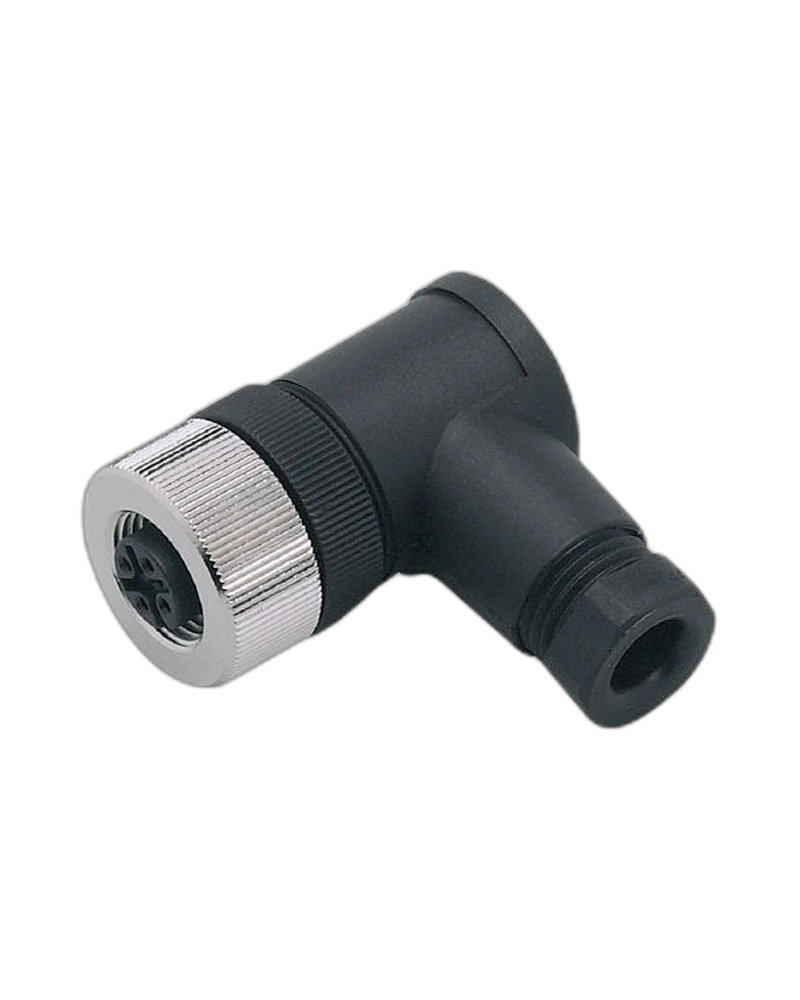

The E11658 is a wirable M12 socket designed for industrial field wiring and sensor connections. Its angled connector arrangement is useful when cable routing space is restricted. The socket uses screw terminals for direct conductor termination. Its PA housing and nickel-plated brass locking components provide a practical industrial connection structure. It is suitable for automation systems, sensors, actuators and machine wiring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The SDOAH040MSSFKPG uses an angled M12 arrangement to support installations where straight connectors may create cable-routing difficulties. The angled body can help direct the cable along the machine surface. Screw terminals provide convenient field termination. The nickel-plated brass locking component supports secure mating. This configuration is suitable for compact automation installations.
The socket provides a field-wireable connection for compatible conductors. Correct terminal assignment ensures reliable signal transmission. Screw terminals allow the installer to terminate the cable directly. The connector is suitable for sensor and actuator wiring. Proper tightening and cable strain relief help prevent connection problems.
The connector is intended for industrial automation and machine-building environments. Its compact M12 construction allows integration into many sensor connection layouts. The angled configuration can improve cable management around equipment. It can be used for new machine construction and service replacement. The connector provides a practical field-wiring solution.
Wirable socket
SDOAH040MSSFKPG
M12 connection
Angled design
Screw terminals
PA housing
Nickel-plated brass locking
Compact construction
Field-wireable
Sensor connection
Actuator connection
Industrial automation design
Industrial sensors
Actuators
Machine automation
Factory automation
Control systems
Compact machine wiring
Field installations
Sensor replacement
Maintenance
Machine building
Automation equipment
Industrial control
Confirm connector and cable compatibility. Prepare conductors correctly before termination. Tighten each screw terminal securely. Route the cable in the direction supported by the angled connector. Check the completed connection before commissioning.
Inspect screw terminals for loosening. Check the angled body for cracks and impact damage. Keep contacts clean and dry. Inspect cable insulation near the connector. Replace the socket when mechanical or electrical damage is found.
| Specification | Details |
|---|---|
| Product Code | E11658 |
| Product Type | Wirable Socket |
| Product Name | SDOAH040MSSFKPG |
| Brand | IFM |
| Category | Sensor Accessories |
| Connector Type | M12 |
| Connector Design | Angled |
| Wiring | Field-wireable |
| Terminal | Screw terminals |
| Housing | PA |
| Locking | Brass, nickel-plated |
| Connection Function | Sensor/actuator |
| Mounting | Connector mounting |
| Cable Termination | Screw terminal |
| Application | Industrial automation |
| Machine Integration | Yes |
| Sensor Integration | Yes |
| Actuator Integration | Yes |
| Factory Automation | Yes |
| Control Equipment | Suitable |
| Field Wiring | Yes |
| Maintenance | Suitable |
| Replacement | Suitable |
| Product Form | Wirable connector |
| Cable Routing | Angled |
| Mechanical Retention | Locking nut |
| Installation Environment | Industrial |
| Pack Quantity | 1 piece |
