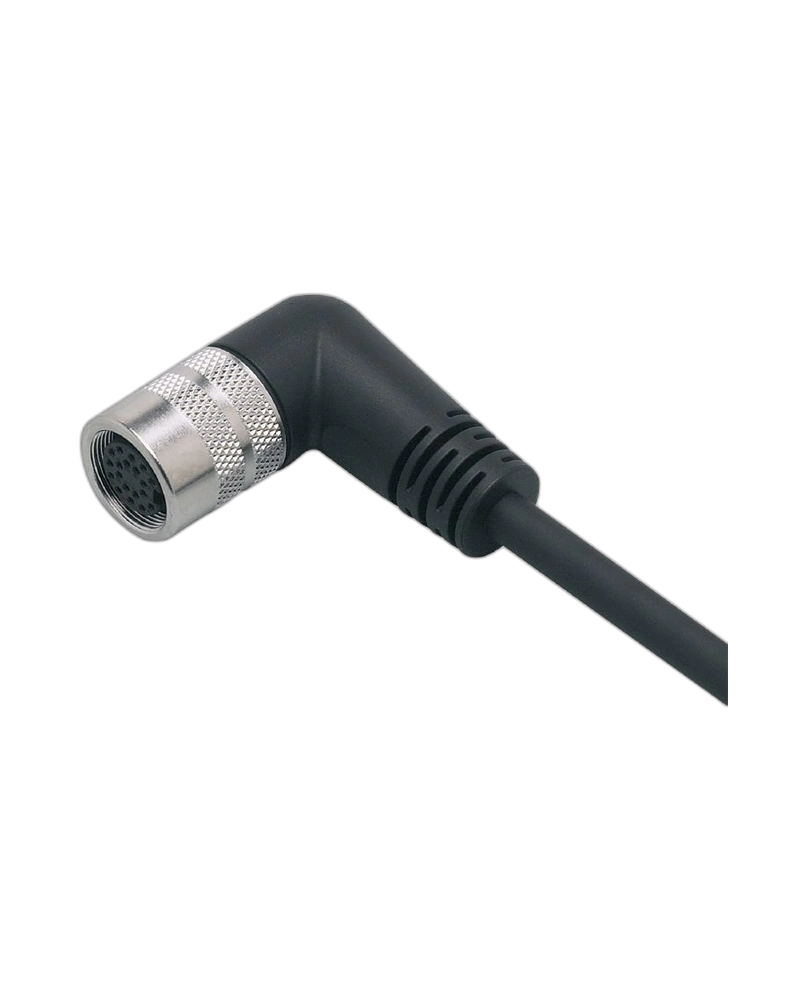

The E11645 is a connecting cable with socket designed for compatible industrial automation equipment. It features an angled M16 connector with a PUR moulded body and nickel-plated brass locking nut. The assembly uses a 2 m black PUR cable with a 7.5 mm outer diameter. Its conductor configuration is 2 × 0.34 mm² plus 9 × 0.25 mm² for the listed connection arrangement. The product is rated for 30 V DC, 3 A and IP67 protection, making it suitable for compatible industrial sensor and machine connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11645 uses an angled M16 connector arrangement for industrial connection applications. The angled design can help with cable routing where straight connector access is restricted. Its PUR moulded body provides an integrated connector construction. The locking nut is made from nickel-plated brass for secure mating. This design supports repeatable connection and maintenance of compatible industrial equipment.
The assembly includes a 2 m black PUR cable with a 7.5 mm outer diameter. It contains 2 × 0.34 mm² conductors together with 9 × 0.25 mm² conductors. The multi-conductor arrangement supports the defined electrical connection requirements of compatible equipment. PUR cable construction provides a practical industrial wiring solution. Proper routing should be used to prevent excessive bending and mechanical stress.
The E11645 uses DC electrical design with a 30 V DC operating voltage and 3 A current rating. Its ambient temperature range is -25 to 90 °C. IP67 protection supports suitable industrial installations where protection against dust and temporary water exposure is required. The connector body uses PUR and the locking nut uses nickel-plated brass. These characteristics make the cable suitable for industrial machine and automation connections.
Connecting cable with socket
ADOAO140MSS0002B11 configuration
M16 connector
Angled connector design
2 m cable length
Black PUR cable
7.5 mm cable diameter
2 × 0.34 mm² conductors
9 × 0.25 mm² conductors
PUR moulded body
Brass nickel-plated nut
30 V DC operating voltage
3 A current rating
IP67 protection
-25 to 90 °C temperature range
Industrial automation
M16 sensor connections
Machine wiring
Sensor and actuator connections
Production equipment
Assembly machinery
Factory automation
Control equipment
Machine maintenance
Cable replacement
Industrial machine building
Automation retrofit
Connect the angled M16 socket to the correct compatible mating connector. Ensure proper alignment before tightening the locking interface. Route the 2 m cable through a suitable machine cable path. Avoid excessive bending or pulling near the connector. Verify the completed electrical connection before machine commissioning.
Inspect the M16 connector and PUR cable during routine maintenance. Check the cable for abrasion, cuts, crushing or excessive bending. Verify that the nickel-plated locking nut remains secure. Inspect the connector body for cracks or mechanical damage. Replace the assembly if physical damage compromises electrical or mechanical reliability.
| Specification | Details |
|---|---|
| Product Code | E11645 |
| Product Type | Connecting Cable with Socket |
| Product Name | ADOAO140MSS0002B11 |
| Brand | IFM |
| Product Category | Connection Technology |
| Connector Type | M16 socket |
| Connector Design | Angled |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 7.5 mm |
| Conductor Group 1 | 2 × 0.34 mm² |
| Conductor Group 2 | 9 × 0.25 mm² |
| Electrical Design | DC |
| Operating Voltage | 30 V DC |
| Current Rating | 3 A |
| Ambient Temperature | -25 to 90 °C |
| Protection Rating | IP67 |
| Body Material | PUR |
| Nut Material | Brass, nickel-plated |
| Socket Function | Electrical connection |
| Cable Function | Signal/power connection |
| Machine Integration | Yes |
| Sensor Integration | Compatible M16 systems |
| Industrial Automation | Suitable |
| Production Equipment | Suitable |
| Maintenance Use | Yes |
| Replacement Use | Yes |
| Pack Quantity | 1 piece |
