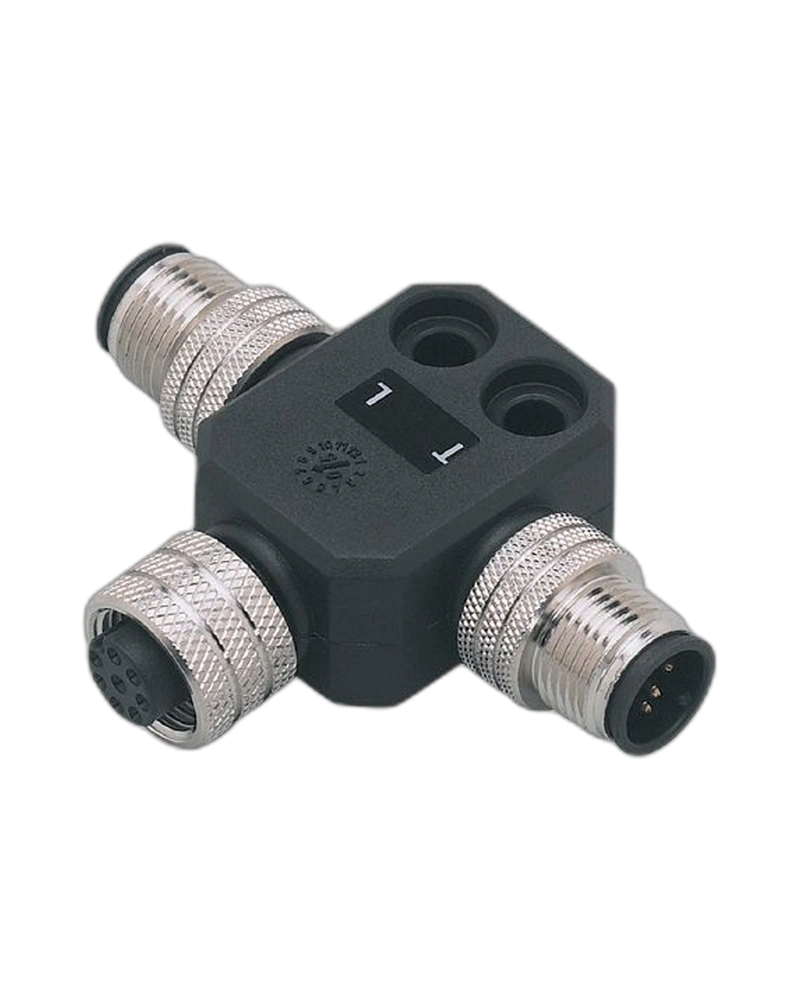

The E11627 T-splitter is an industrial connection component designed to distribute electrical connections through an M12-based splitter arrangement. It uses an M12 × 1 mechanical design with a PUR moulded body. The connector assembly uses brass, nickel-plated locking components for secure mechanical connection. It supports AC/DC operation with a maximum total current load of 3 A. Its IP68 protection and -25 to 90 °C operating range make it suitable for demanding industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11627 provides a T-splitter arrangement for connecting compatible industrial devices. Its M12 × 1 design supports common industrial connection technology. The moulded PUR body provides an integrated and compact construction. Nickel-plated brass locking components support secure connector retention. The splitter arrangement helps simplify multi-device machine wiring.
The splitter is designed for AC/DC electrical systems. Its operating voltage is specified at 30 V AC / 36 V DC. The maximum total current load is 3 A, with a maximum current load per location of 3 A. The connector wiring provides defined electrical paths between the connected interfaces. Correct circuit configuration should be confirmed before installation.
The E11627 is rated IP68 for protection against environmental ingress within its specified conditions. Its ambient operating temperature range is -25 to 90 °C. The PUR body provides a robust moulded industrial construction. Nickel-plated brass locking hardware supports repeated connector engagement. These characteristics make the splitter suitable for factory automation and machine wiring.
T-splitter
T SPLITTER M12/2XUS configuration
M12 × 1 design
AC/DC electrical design
30 V AC operation
36 V DC operation
3 A maximum total current
3 A maximum current per location
PUR moulded body
Brass locking components
Nickel-plated locking finish
IP68 protection
-25 to 90 °C ambient range
Compact connection arrangement
Industrial automation design
Industrial automation
Machine wiring
Sensor distribution
Actuator connections
M12 connection systems
Factory automation
Control equipment
Machine-building applications
Production machinery
Sensor networks
Automation maintenance
Multi-device connection
Connect the compatible M12 interfaces according to the intended wiring arrangement. Ensure each connector is correctly aligned before tightening. Confirm that the total circuit current remains within the specified limit. Route connected cables to prevent excessive mechanical stress. Verify the complete circuit before commissioning.
Inspect the splitter and connected cables during routine maintenance. Check locking components for looseness or physical damage. Inspect the PUR body for cuts, cracks or excessive wear. Check connected cables for abrasion and mechanical stress. Replace the splitter if physical damage affects connector security or electrical integrity.
| Specification | Details |
|---|---|
| Product Code | E11627 |
| Product Type | T-Splitter |
| Product Name | T SPLITTER M12/2XUS |
| Brand | IFM |
| Product Category | Connection Technology |
| Electrical Design | AC/DC |
| Operating Voltage AC | 30 V AC |
| Operating Voltage DC | 36 V DC |
| Maximum Total Current | 3 A |
| Maximum Current per Location | 3 A |
| Connector Design | M12 × 1 |
| Connection Type | M12 splitter |
| Body Material | PUR |
| Moulded Body Material | PUR |
| Locking Material | Brass |
| Locking Finish | Nickel-plated |
| Protection Rating | IP68 |
| Ambient Temperature | -25 to 90 °C |
| Mechanical Function | Connection distribution |
| Electrical Function | Signal/power distribution |
| Mounting Style | Connector-mounted |
| Application | Industrial automation |
| Sensor Integration | Compatible M12 devices |
| Actuator Integration | Compatible M12 devices |
| Machine Integration | Yes |
| Industrial Use | Yes |
| Maintenance Use | Yes |
| Replacement Use | Yes |
| Pack Quantity | 1 piece |
