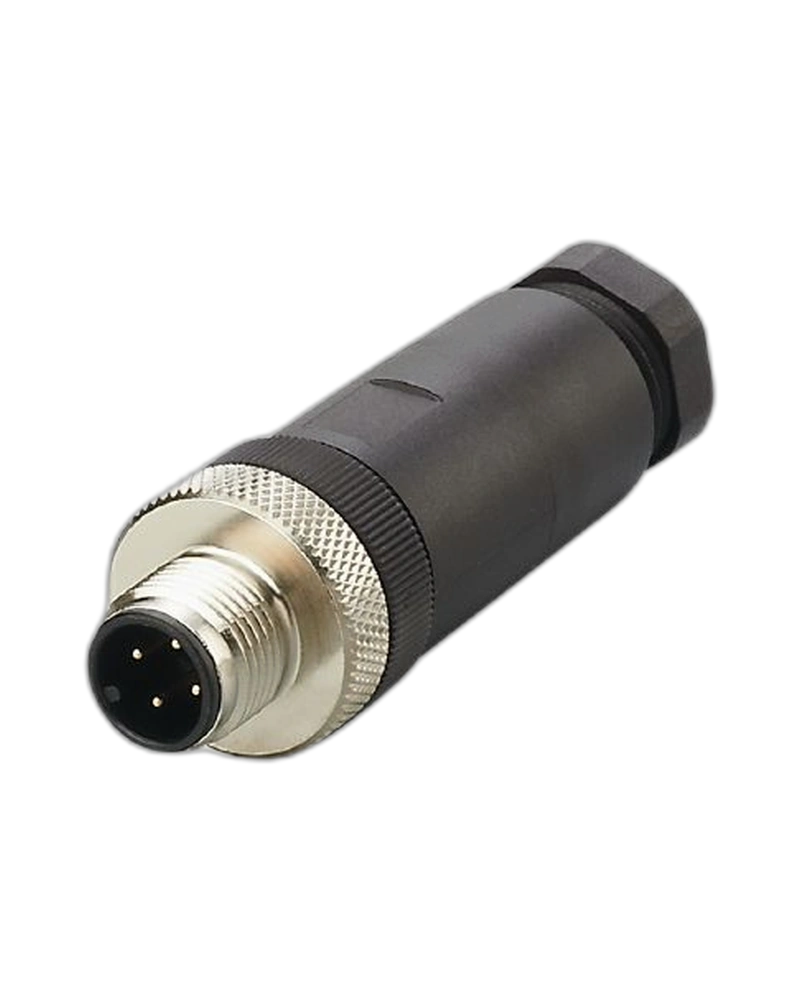

The E11624 is a wirable M12 plug designed for field wiring in industrial automation systems. Its SSTGH040MSSFKPG configuration provides a straight connector design with screw terminals. The plug uses a PA housing and nickel-plated brass nut for industrial mechanical performance. Gold-plated contacts support dependable electrical contact within the specified operating conditions. The plug is silicone-free, halogen-free and protected to IP68.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11624 uses an M12 connector with a straight physical configuration. Its wirable construction allows the installer to terminate suitable conductors directly at the connector. Screw terminals provide a practical field-wiring method. The nickel-plated brass nut supports mechanical fastening to the mating connector. The design is suitable for industrial sensor and actuator connection systems.
The plug is designed for AC/DC electrical operation and is rated up to 250 V AC/DC. Its current rating is 4 A at the specified temperature condition. Gold-plated contacts support stable electrical contact. The screw-terminal arrangement simplifies conductor termination during installation. Correct wiring and compatible conductor dimensions should be followed during assembly.
The E11624 provides IP68 protection for demanding industrial installations. Its specified ambient temperature range is -25 to 100 °C. The PA body provides a compact and durable connector housing. The product is listed as free from silicone and halogen. These characteristics make it suitable for a range of industrial automation environments.
Wirable plug
SSTGH040MSSFKPG configuration
M12 connector
Straight design
Field-wireable construction
Screw terminals
Gold-plated contacts
PA housing
Nickel-plated brass nut
Silicone-free construction
Halogen-free construction
IP68 protection
250 V AC/DC rating
4 A current rating
-25 to 100 °C operating range
Compact connector design
Industrial sensor wiring
Actuator connections
Machine automation
Factory automation
Control equipment
Field wiring
Sensor replacement
Connector replacement
Machine building
Industrial control systems
Automation cabinets
Maintenance installations
Prepare the compatible conductors according to the connector requirements. Insert and secure the conductors using the internal screw terminals. Ensure that each conductor is connected to the correct terminal. Assemble and tighten the connector housing correctly. Verify the completed wiring before applying operating voltage.
Inspect the plug body and mating interface during maintenance. Check the cable termination for loose conductors or damaged insulation. Inspect the connector for contamination and mechanical damage. Confirm proper tightening after machine servicing. Replace the plug if its housing, contacts or termination system is damaged.
| Specification | Details |
|---|---|
| Product Code | E11624 |
| Product Type | Wirable Plug |
| Product Name | SSTGH040MSSFKPG |
| Brand | IFM |
| Product Category | Connection Technology |
| Connector Type | M12 |
| Connector Design | Straight |
| Wiring Type | Field-wireable |
| Terminal Type | Screw terminals |
| Contact Type | Gold-plated |
| Housing Material | PA |
| Nut Material | Brass, nickel-plated |
| Electrical Design | AC/DC |
| Operating Voltage | 250 V AC/DC |
| Current Rating | 4 A |
| Temperature Condition | Current rating specified at 40 °C |
| Ambient Temperature | -25 to 100 °C |
| Protection Rating | IP68 |
| Cable Connection | Wireable |
| Conductor Termination | Screw terminal |
| Silicone Content | Free from silicone |
| Halogen Content | Free from halogen |
| Main Function | Electrical connector |
| Sensor Integration | Compatible M12 systems |
| Actuator Integration | Compatible systems |
| Machine Integration | Yes |
| Industrial Use | Yes |
| Maintenance Use | Yes |
| Replacement Use | Yes |
