The E11622 jumper cable is designed for electrical connection between compatible M12 equipment and valve plug interfaces. It combines an M12 plug with a Type A valve plug according to DIN EN 175301-803. The cable is intended for current measurement applications and uses a 2 m PUR cable with 2 × 0.75 mm² conductors. Its TPU body and nickel-plated brass nut provide a robust industrial connection. The assembly is suitable for valve-related automation equipment and demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

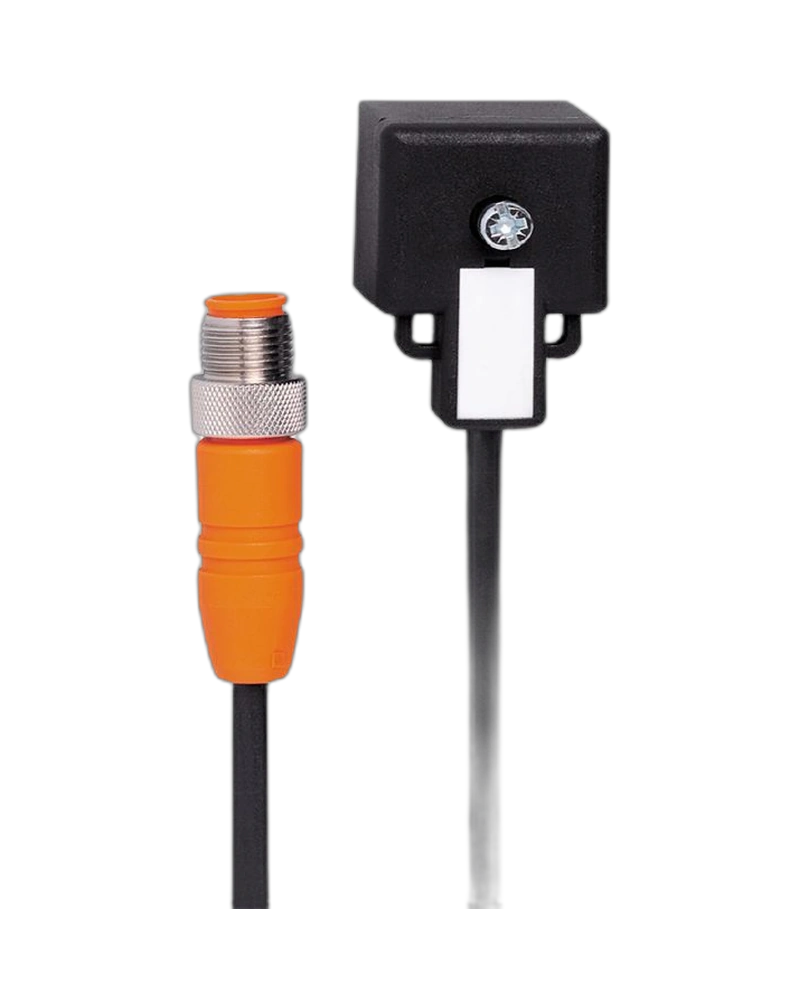

The E11622 incorporates a Type A valve plug interface according to DIN EN 175301-803. The opposite connection uses an M12 plug for compatible automation components. This combination provides a practical connection between sensor or control equipment and valve-related devices. The straight/angled configuration supports flexible machine installation. The supplied screw and labelling tag assist with installation and identification.
The assembly uses a 2 m PUR cable with two 0.75 mm² conductors. PUR cable construction provides a practical solution for industrial machine wiring. The cable length supports connection between components with moderate installation distance. Proper routing helps prevent unnecessary bending and mechanical stress. The cable assembly is supplied as a complete jumper connection for convenient installation.
The E11622 is specified for operation at 24 V AC/DC and for current measurement applications. It provides IP67 and IP69K protection, supporting demanding industrial installation environments. Its operating temperature range is -40 to 90 °C. The TPU body and nickel-plated brass nut provide a robust connector construction. The assembly is suitable for valve control, machine automation and industrial connection applications.
Jumper cable with valve plug
VVDAA040MSS0002H03STGH020MSS configuration
M12 plug
Type A valve plug
DIN EN 175301-803 valve interface
2 m PUR cable
2 × 0.75 mm² conductors
24 V AC/DC operation
Current measurement application
TPU body
Nickel-plated brass nut
IP67 protection
IP69K protection
Wide operating temperature range
Supplied screw
Labelling tag included
Valve connection
Industrial automation
Current measurement
Machine control
Pneumatic valve systems
Factory automation
Sensor and actuator wiring
Industrial machinery
Control equipment
Machine maintenance
Valve replacement
Automation panel wiring
Connect the M12 plug to the compatible mating connector and the valve plug to the appropriate Type A valve interface. Ensure both connectors are correctly aligned before tightening. Use the supplied screw where required for secure valve plug retention. Route the cable away from moving parts and sharp edges. Verify the connection before applying operating voltage.
Inspect both connector interfaces during scheduled maintenance. Check the PUR cable for cuts, abrasion, crushing or excessive bending. Confirm that the valve plug screw remains secure. Inspect the connector body and nut for mechanical damage. Replace the assembly if damage compromises safe and reliable electrical connection.
| Specification | Details |
|---|---|
| Product Code | E11622 |
| Product Type | Jumper Cable with Valve Plug |
| Product Name | VVDAA040MSS0002H03STGH020MSS |
| Brand | IFM |
| Product Category | Connection Technology |
| Application | Current measurement |
| M12 Interface | M12 plug |
| Valve Interface | Type A valve plug |
| Valve Standard | DIN EN 175301-803 |
| Cable Length | 2 m |
| Cable Material | PUR |
| Conductor Count | 2 |
| Conductor Size | 0.75 mm² |
| Electrical Design | AC/DC |
| Operating Voltage | 24 V AC/DC |
| Ambient Temperature | -40 to 90 °C |
| Protection Rating | IP67 / IP69K |
| Body Material | TPU / urethane |
| Nut Material | Brass, nickel-plated |
| Connector Design | Straight / angled |
| Knurled Nut Torque | 0.5 Nm |
| Weight | Approximately 0.153 kg |
| Included Accessory | Screw |
| Included Identification | Labelling tag |
| Pack Quantity | 1 piece |
| Main Function | Valve/equipment connection |
| Industrial Use | Yes |
| Automation Integration | Yes |
| Maintenance Use | Yes |
| Replacement Use | Yes |
