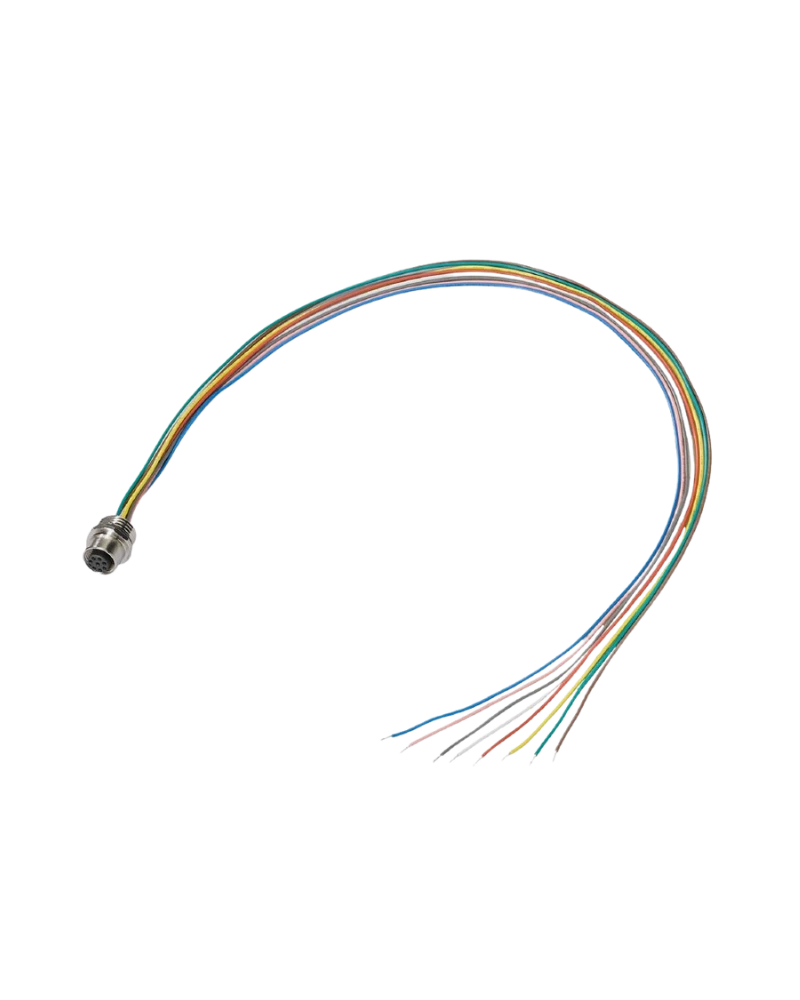

The E11601 adapter socket is designed to provide a reliable connection between compatible M12 sensor devices and PG9 cable-entry systems. It features a straight M12 connector arrangement with A coding for suitable industrial sensor connections. The assembly includes a 0.5 m PVC cable with eight conductors for electrical integration. Its nickel-plated brass construction provides a robust mechanical interface for industrial installations. The compact design is suitable for sensor wiring, machine automation and equipment integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11601 uses an M12 connector with A coding for compatible sensor and actuator connections. Its straight connector configuration supports convenient installation in standard machine layouts. The PG9 mounting interface provides a practical cable-entry arrangement for panel or equipment integration. The nickel-plated brass construction gives the connector a durable industrial finish. The connector arrangement supports repeatable connection and servicing in automation systems.
The adapter socket incorporates a 0.5 m PVC cable with eight conductors. The cable provides a convenient connection between the M12 interface and the associated wiring system. Its compact length is suitable for local machine and sensor installations. The conductor arrangement supports multi-wire industrial sensor connections. Proper routing should be used to avoid excessive bending and mechanical stress.
The E11601 is suitable for industrial automation equipment using compatible M12 sensor connections. It can be integrated into machine wiring, sensor installations and control equipment. The adapter format helps simplify connections where a PG9 mounting arrangement is required. Its IP67 protection supports use in suitable industrial environments. It can also be useful for equipment maintenance and replacement installations.
Adapter socket construction
M12 connector
A-coded connector
PG9 mounting interface
Straight connector design
0.5 m PVC cable
8 × 0.25 mm² cable construction
Nickel-plated brass housing
Compact industrial design
Sensor connection support
Machine wiring integration
IP67 protection
AC/DC electrical design
Industrial automation compatibility
Maintenance-friendly connection
Industrial sensor installation
Machine automation
Sensor and actuator wiring
Control cabinet connections
Machine building
Factory automation
Industrial equipment integration
Panel-mounted sensor connections
Maintenance replacement
Retrofit installations
Automation wiring
Sensor connection conversion
The E11601 should be installed using a compatible PG9 mounting arrangement and suitable M12 mating connection. Ensure that the connector is correctly aligned before tightening. The cable should be routed away from sharp edges and moving machine components. Avoid excessive pulling or bending close to the connector. Check the completed connection before commissioning the equipment.
Inspect the connector, cable and mounting area during routine machine maintenance. Check for cable abrasion, connector damage, contamination and loose mounting. Verify that the M12 connection remains properly engaged. Inspect the cable route for unnecessary mechanical stress. Replace the assembly if damage could affect electrical or mechanical reliability.
| Specification | Details |
|---|---|
| Product Code | E11601 |
| Product Type | Adapter Socket |
| Product Name | EDOGH080MSS00,5E08 (PG9) |
| Brand | IFM |
| Product Category | Sensor Accessories |
| Connector Type | M12 |
| Connector Coding | A-coded |
| Connector Quantity | 1 × M12 |
| Connector Design | Straight |
| Mounting Interface | PG9 |
| Cable Length | 0.5 m |
| Cable Material | PVC |
| Number of Conductors | 8 |
| Conductor Size | 0.25 mm² |
| Electrical Design | AC/DC |
| Operating Voltage | 30 V AC / 36 V DC |
| Ambient Temperature | -25 to 90 °C |
| Protection Rating | IP67 |
| Housing Material | Brass, nickel-plated |
| Cable Function | Electrical connection |
| Sensor Integration | Compatible M12 devices |
| Mounting Function | PG9 installation |
| Application | Industrial automation |
| Machine Integration | Yes |
| Control Equipment | Suitable |
| Installation Type | Cable-connected adapter |
| Maintenance Use | Yes |
| Replacement Use | Yes |
| Industrial Environment | Suitable within specified ratings |
