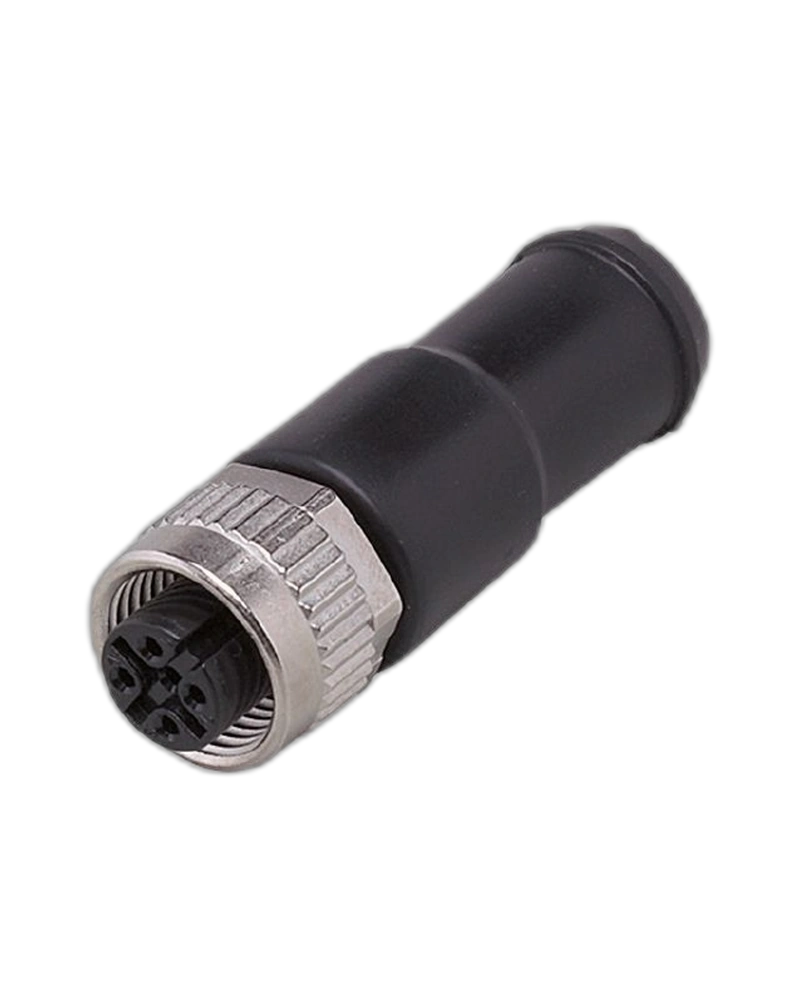

The IFM E11589 is an M12 socket with an integrated 120 Ω CAN bus terminating resistor. It is designed for CAN bus applications and mobile machinery where reliable network termination is required. Its IP68 protection, TPU housing and nickel-plated connector construction provide dependable performance in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E11589 combines an M12 socket with an integrated CAN bus termination resistor, simplifying termination of CAN networks.
Integrated 120 Ω terminating resistor
M12 straight socket
5 contacts
A-coded connection
IP68 protection
TPU moulded body
FKM sealing
Nickel-plated connector locking
Designed for CAN bus
Suitable for mobile applications
CAN bus networks
Mobile automation
Mobile machinery
Industrial communication
Machine control systems
CAN network termination
The integrated 120 Ω resistor eliminates the need for a separate external termination component and provides a compact solution for CAN bus network termination.
| Specification | Details |
|---|---|
| Product Code | E11589 |
| Product Type | CAN bus terminating socket |
| Connector | M12, straight |
| Contacts | 5 |
| Coding | A-coded |
| Termination | 120 Ω |
| Protection | IP68 |
| Housing Material | TPU |
| Sealing | FKM |
| Application | CAN bus |
