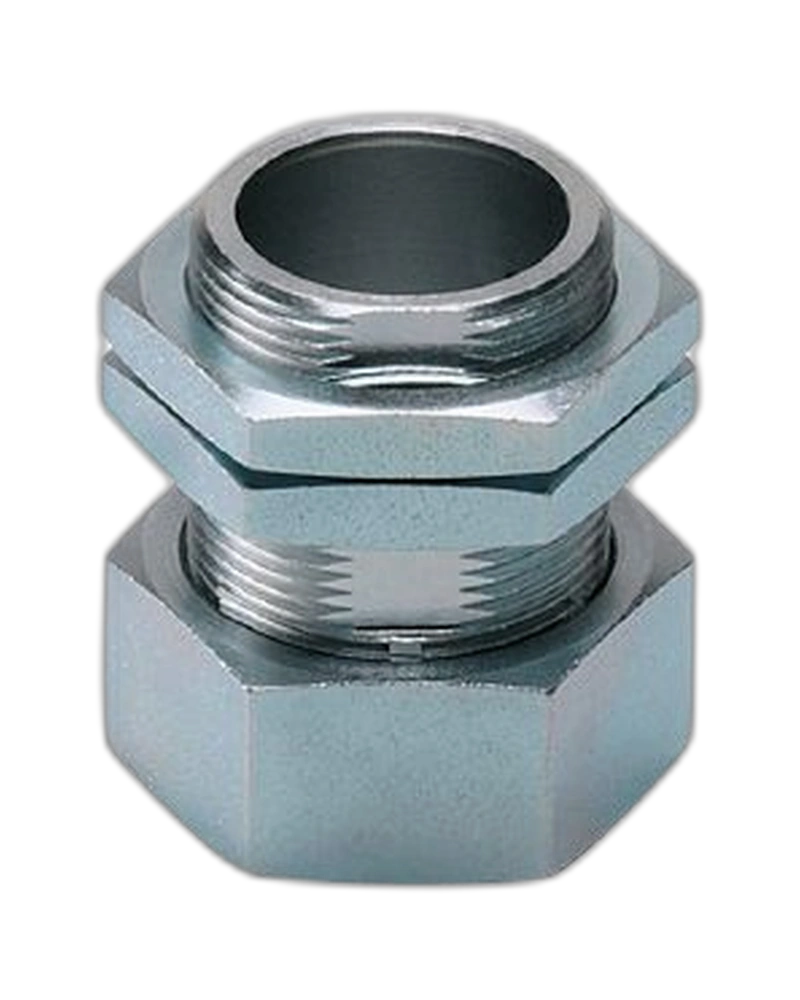

The IFM E11514 is a mounting sleeve designed for cylindrical M18 sensors. It incorporates an end stop for controlled and repeatable sensor positioning. The sleeve uses an M22 × 1 mounting interface and accepts sensors with an 18 mm diameter. Its galvanised steel construction provides robust mechanical support. The defined installation position helps simplify sensor replacement and alignment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11514 is designed specifically around M18 cylindrical sensor dimensions. The Ø18 mm sensor interface provides controlled positioning. An M22 × 1 mounting thread allows mechanical installation. The integrated end stop establishes consistent sensor depth. The sleeve design supports repeatable machine assembly.
The mounting sleeve uses galvanised steel. Its weight is approximately 62 g. The robust construction supports stable sensor installation. The end stop prevents uncontrolled sensor insertion depth. This arrangement helps maintain repeatable sensing geometry.
The E11514 is useful where repeatable M18 sensor positioning is important. It allows the sensor to be installed against a defined mechanical stop. This helps reduce alignment errors after replacement. The sleeve can be integrated into machine structures using the M22 × 1 mounting interface. It is suitable for industrial sensor mounting applications.
M18 mounting sleeve
E11514
FIXING/M18/MODUL/FE/END STOP
M22 × 1 mounting thread
Ø18 mm sensor interface
End stop
Steel construction
Galvanised steel
Approx. 62 g
Defined installation position
Repeatable sensor depth
Cylindrical sensor support
Mechanical mounting
Industrial design
M18 proximity sensors
Position sensors
Factory automation
Machine tools
Conveyor systems
Assembly equipment
Sensor replacement
Industrial machinery
Machine automation
Production lines
The end stop provides repeatable sensor positioning. The M22 × 1 thread supports secure mechanical mounting. Steel construction provides mechanical stability. The sleeve simplifies sensor replacement. Controlled sensor depth helps maintain consistent detection geometry.
Insert the M18 sensor until the end stop is reached. Align the sensing face correctly. Secure the sleeve to the machine structure. Avoid excessive mechanical loading. Inspect the mounting thread during service.
| Specification | E11514 Details |
|---|---|
| Product type | Mounting sleeve |
| Order number | E11514 |
| Model | FIXING/M18/MODUL/FE/END STOP |
| Sensor type | Cylindrical M18 |
| Sensor diameter | 18 mm |
| Mounting thread | M22 × 1 |
| End stop | Yes |
| Material | Steel |
| Surface finish | Galvanised |
| Weight | 62 g |
| Installation position | Defined |
| Sensor depth | Controlled |
| Mounting method | Sleeve |
| Application | Position sensors |
| Sensor format | Cylindrical |
| Mechanical function | Sensor positioning |
| Replacement benefit | Repeatable mounting |
| Thread system | Metric |
| External thread | M22 × 1 |
| Internal diameter | Ø18 mm |
| Mechanical support | Steel |
| Corrosion treatment | Galvanised |
| Mounting accessory | Yes |
| Sensor retention | Mechanical |
| Installation design | With end stop |
| Sensor alignment | Controlled |
| Pack quantity | 1 |
| Installation orientation | Sensing face aligned right |
| Primary purpose | Defined M18 sensor mounting |
| Component category | Sensor accessory |
