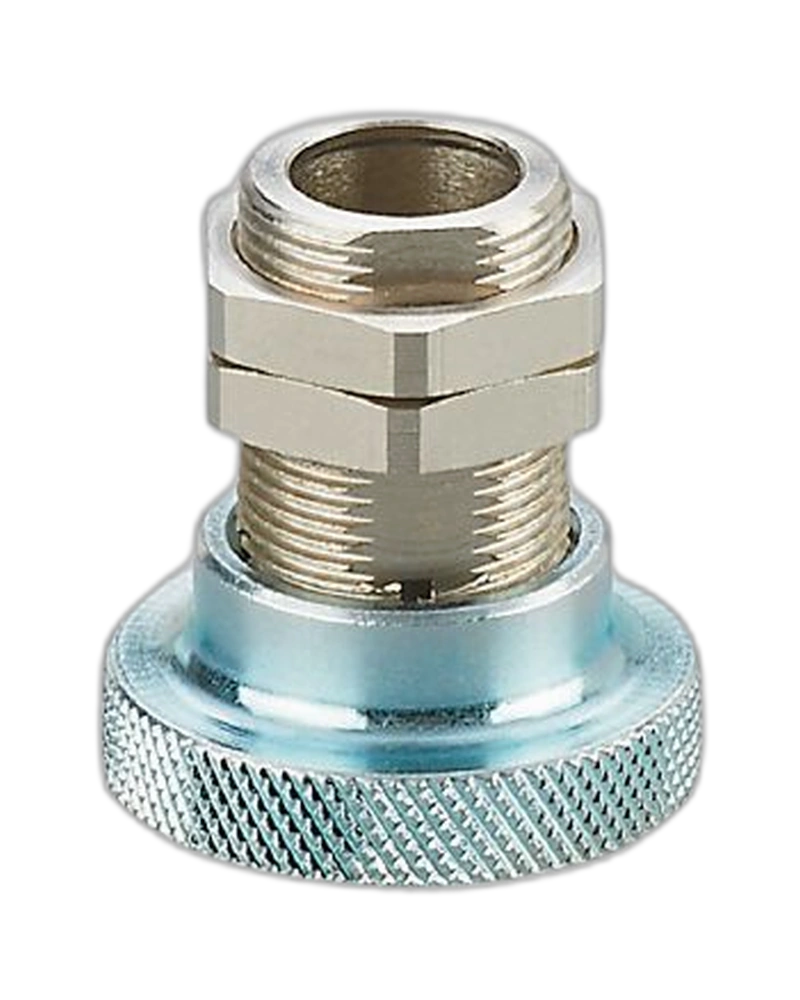

The IFM E11513 is a mounting sleeve designed for cylindrical M12 sensors. It incorporates an end stop to establish a defined sensor installation position. The sleeve uses an M16 × 1 mounting thread and accommodates sensors with a 12 mm diameter. Its steel construction is galvanised and chromium-plated for mechanical durability. The defined mounting position helps maintain repeatable sensor alignment during installation and replacement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The sleeve provides a controlled mechanical location for M12 sensors. The integrated end stop establishes consistent sensor depth. An M16 × 1 external mounting interface supports mechanical installation. The internal Ø12 mm geometry is designed for compatible cylindrical sensors. A knurled nut facilitates practical installation.
The sleeve is manufactured from steel for robust mechanical support. The surface is galvanised and chromium-plated with a yellow finish. The component weighs approximately 51 g. Its construction supports stable sensor positioning. The defined installation arrangement helps reduce alignment variation.
The end stop makes sensor positioning repeatable. This is useful when sensors need to be replaced without changing the sensing position. The mounting sleeve provides a controlled installation geometry. It supports consistent mechanical alignment. It is suitable for machine automation and sensor mounting applications.
M12 sensor mounting sleeve
E11513
FIXING/M12/MODUL/FE/END STOP
M16 × 1 mounting thread
12 mm sensor diameter
Integrated end stop
Steel construction
Galvanised finish
Chromium-plated finish
Yellow surface finish
Knurled nut
Approx. 51 g
Defined installation position
Repeatable mounting
Cylindrical sensor support
Mechanical fixing accessory
M12 proximity sensors
Position sensors
Machine automation
Factory automation
Sensor replacement
Repeatable sensor mounting
Industrial machinery
Assembly machines
Conveyor equipment
Machine tooling
The end stop establishes repeatable sensor positioning. Steel construction provides mechanical stability. The M16 × 1 mounting interface supports secure installation. The sleeve simplifies sensor replacement. The defined installation position reduces alignment variation.
Insert the compatible M12 sensor until the end stop is reached. Align the sensing face according to the installation drawing. Secure the mounting sleeve correctly. Avoid excessive force on the sensor body. Check mechanical fixation during maintenance.
| Specification | E11513 Details |
|---|---|
| Product type | Mounting sleeve |
| Order number | E11513 |
| Model | FIXING/M12/MODUL/FE/END STOP |
| Sensor type | Cylindrical M12 |
| Sensor diameter | 12 mm |
| Mounting thread | M16 × 1 |
| End stop | Yes |
| Construction | Steel |
| Surface | Galvanised |
| Surface treatment | Chromium-plated |
| Finish | Yellow |
| Nut type | Knurled nut |
| Weight | 51 g |
| Installation position | Defined |
| Sensor alignment | Controlled |
| Mounting method | Mechanical sleeve |
| Application | Position sensors |
| Sensor format | Cylindrical |
| Mechanical function | Sensor positioning |
| Replacement benefit | Repeatable depth |
| Mounting accessory | Yes |
| Thread type | Metric |
| External thread | M16 × 1 |
| Internal sensor diameter | Ø12 mm |
| Material class | Steel |
| Corrosion treatment | Galvanised |
| Additional finish | Chromium-plated |
| Pack quantity | 1 |
| Mounting instruction | Sensing face aligned right |
| Primary purpose | Defined sensor installation |
