The E11512 wirable socket is a field-attachable M12 connector designed for industrial automation wiring. It provides a configurable connection solution for suitable cables and compatible devices, supporting flexible installation in machinery and control systems. Its angled connector design, gold-plated contacts and industrial construction make it suitable for sensor, actuator and factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

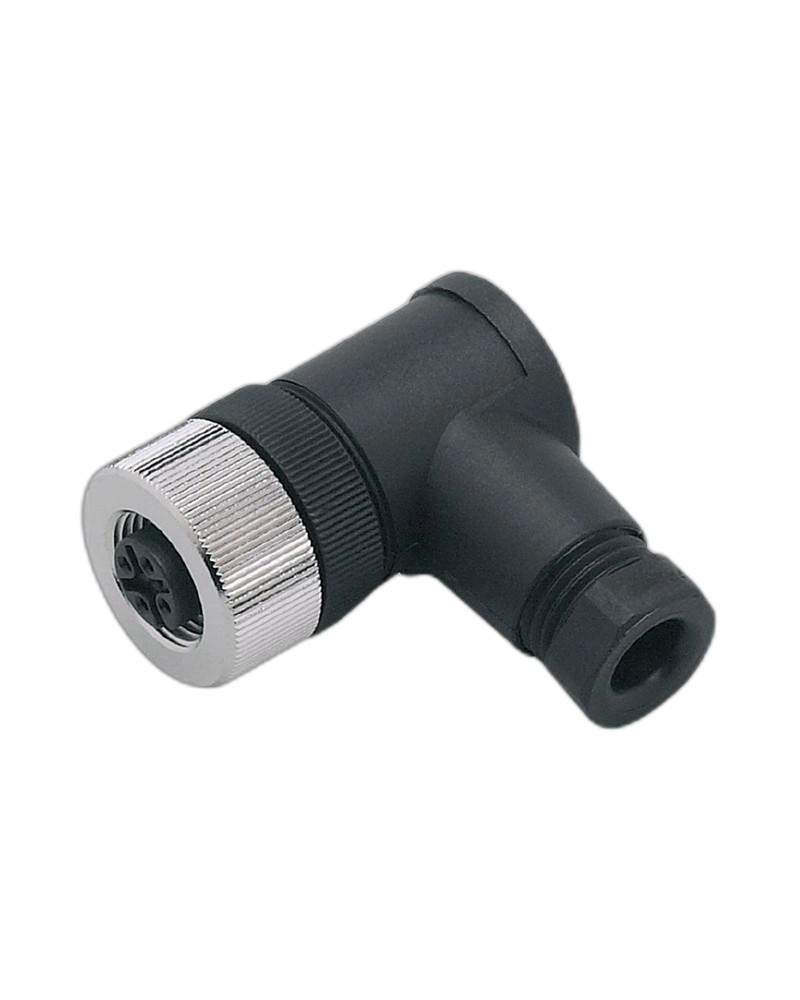

The E11512 is an IFM wirable socket with an angled M12 connection and five gold-plated contacts. It is designed for field wiring and provides a flexible connection solution for industrial automation equipment. The connector is silicone-free and has an IP68 protection rating, making it suitable for demanding industrial connection applications.
The angled M12 design can help simplify cable routing in installations where straight connector access is restricted.
The socket uses screw terminals for cable termination and supports flexible field assembly. The specified cable sheath range is Ø4...6 mm.
The connector is specified with IP68 protection and an operating ambient temperature range of -25...85 °C.
The five contacts are gold-plated, supporting reliable electrical connection for compatible industrial automation equipment.
Wirable socket
SDOAH050MSSFKPG model
M12 angled connector
A coding
5 gold-plated contacts
Field-wirable design
Silicone-free construction
IP68 protection
Brass nickel-plated locking nut
Suitable for industrial automation
Industrial automation
Sensor connections
Actuator connections
Machine building
Factory automation
Industrial control
Field wiring
| Specification | Details |
|---|---|
| Product Code | E11512 |
| Product Type | Wirable socket |
| Model | SDOAH050MSSFKPG |
| Connector | 1 x M12, angled |
| Coding | A |
| Contacts | 5, gold-plated |
| Operating Voltage | <45 V AC / <70 V DC |
| Ambient Temperature | -25...85 °C |
| Protection Rating | IP68 |
| Cable Sheath | Ø4...6 mm |
| Terminals | Screw terminals up to 0.75 mm² |
| Material | PA |
| Locking Nut | Brass, nickel-plated |
| Weight | 29.1 g |
| Pack Quantity | 1 pc. |
| Brand | IFM |
