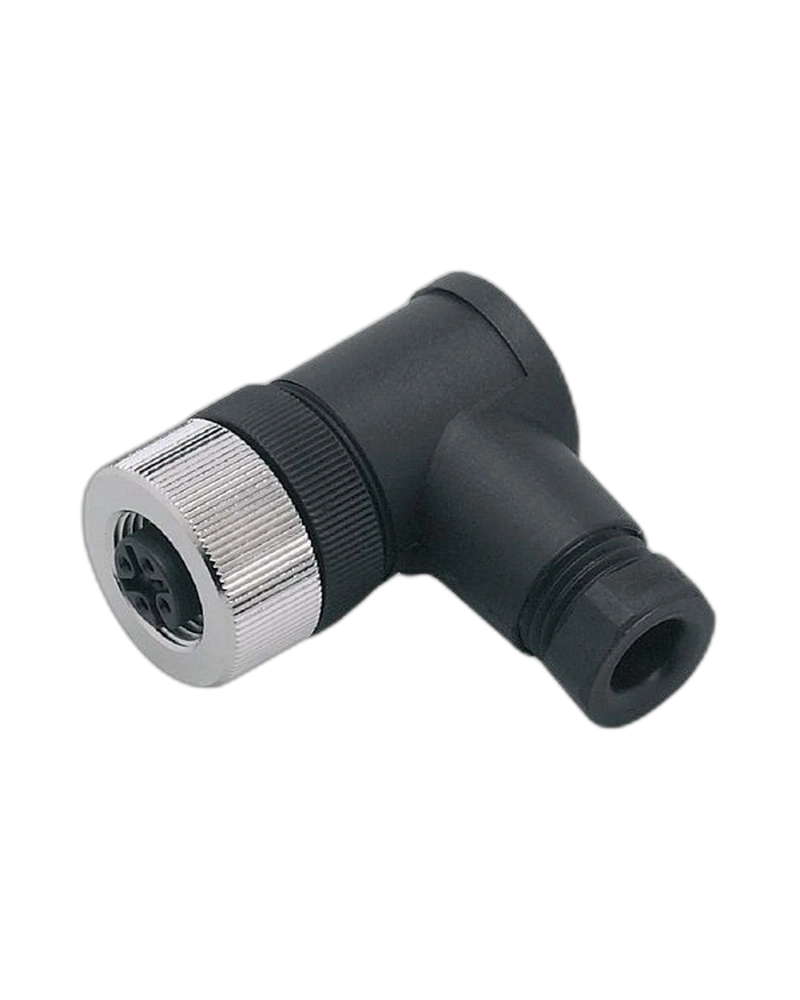

The IFM E11512 is an angled five-contact M12 wirable socket for industrial sensor connections. It supports less than 45 V AC and less than 70 V DC with a 4 A maximum current rating. Gold-plated contacts provide dependable electrical connection. The PA body and nickel-plated brass nut provide robust mechanical construction. IP68 protection and a -25…85 °C operating range support industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The angled design is useful where straight cable routing is restricted. The M12 socket uses five gold-plated contacts. Screw terminals accommodate conductors up to 0.75 mm². Cable sheath diameters from 4–6 mm are supported. The PA housing and brass locking nut provide durable construction.
The connector supports below 45 V AC and below 70 V DC. Maximum current load is 4 A at 40 °C. Gold-plated contacts support reliable signal transfer. The screw-terminal design permits flexible cable termination. The five-contact configuration supports compatible M12 sensor connections.
The connector operates from -25…85 °C. IP68 protection provides high ingress protection. The construction is free from silicone and uses industrial-grade materials. The angled configuration helps optimize cable routing. The connector is intended for factory automation applications.
M12 wirable socket
SDOAH050MSSFKPG
5 contacts
Angled design
A-coded
Gold-plated contacts
PA body
Brass nickel-plated nut
<45 V AC
<70 V DC
4 A
IP68
-25…85 °C
Screw terminals
≤0.75 mm²
4–6 mm cable diameter
Silicone-free
Halogen-free
Industrial automation
Industrial sensors
M12 sensor connections
Factory automation
Machine control
Position sensing
Proximity sensing
Packaging machines
Production lines
Control cabinets
Industrial equipment
The angled design improves cable routing flexibility. Five contacts support compatible multi-contact M12 sensors. Gold-plated contacts improve connection reliability. IP68 protection supports demanding environments. Field-wirable terminals simplify custom cable assembly.
Use the specified conductor size. Ensure proper cable sheath insertion. Tighten terminals securely. Maintain sealing surfaces. Inspect the connector for mechanical damage.
| Specification | E11512 Details |
|---|---|
| Product type | Wirable socket |
| Order number | E11512 |
| Model | SDOAH050MSSFKPG |
| Connector | M12 |
| Gender | Female |
| Contacts | 5 |
| Design | Angled |
| Coding | A |
| Contact finish | Gold-plated |
| Body | PA |
| Nut | Brass, nickel-plated |
| Operating voltage | <45 V AC / <70 V DC |
| Current | 4 A at 40 °C |
| Protection | IP68 |
| Temperature | -25…85 °C |
| Connection | Wireable |
| Termination | Screw terminals |
| Conductor size | ≤0.75 mm² |
| Cable diameter | 4…6 mm |
| Silicone-free | Yes |
| Halogen-free | Yes |
| Application | Industrial automation |
| Locking | Threaded |
| Contact arrangement | 5-pin |
| Mounting | Cable termination |
| Housing type | Moulded PA |
| Pack quantity | 1 |
| Connector orientation | Angled |
| Field termination | Yes |
