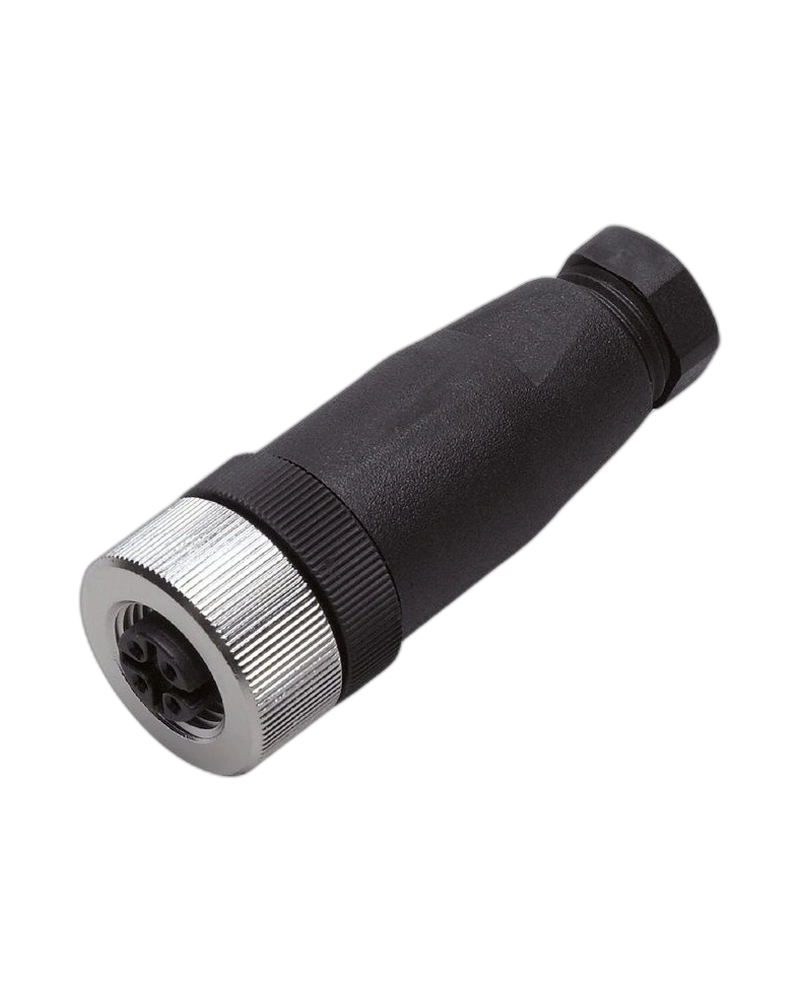

The IFM E11511 is a straight M12 wirable socket designed for industrial sensor connections. It supports 125 V AC/DC operation and a 4 A current rating at 40 °C. The connector features gold-plated contacts and a PA housing. Screw terminals accept conductors up to 0.75 mm² and cables with 4–6 mm sheath diameter. IP68 protection and a -25…85 °C operating range make it suitable for industrial factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The straight configuration is useful for direct cable routing from sensors. The M12 interface provides a standard industrial threaded connection. Gold-plated contacts help maintain reliable electrical contact. The brass locking nut is nickel-plated. The field-wirable design simplifies custom cable termination.
The connector supports 125 V AC/DC. Its current rating is 4 A at 40 °C. Screw terminals accommodate conductors up to 0.75 mm². The gold-plated contact system supports dependable signal transmission. The connector is designed for industrial automation equipment.
The connector operates between -25 and 85 °C. IP68 protection provides high resistance to dust and water ingress. The connector is silicone-free and halogen-free. The PA body offers a robust lightweight construction. The design is intended for factory automation environments.
M12 wirable socket
SDOGH050MSSFKPG
Straight design
Gold-plated contacts
PA body
Nickel-plated brass nut
125 V AC/DC
4 A
IP68
-25…85 °C
Screw terminals
≤0.75 mm²
4–6 mm cable diameter
Silicone-free
Halogen-free
Industrial automation
Field-wirable
M12 connector
Threaded locking
Pack quantity 1
Industrial sensors
Proximity sensors
Position sensors
Factory automation
Machine control
Sensor connection
Control cabinets
Packaging equipment
Production machinery
Automation systems
Straight geometry simplifies direct cable routing. Field termination provides wiring flexibility. Gold-plated contacts support stable connection. IP68 protection supports harsh environments. Robust PA construction helps maintain reliable mechanical performance.
Use suitable cable size. Terminate wires securely. Ensure proper sealing before mating. Avoid excessive cable tension. Inspect the connector during scheduled maintenance.
| Specification | E11511 Details |
|---|---|
| Product type | Wirable socket |
| Order number | E11511 |
| Model | SDOGH050MSSFKPG |
| Connector | M12 |
| Gender | Female |
| Design | Straight |
| Contacts | 5 |
| Contact material | Gold-plated |
| Electrical design | AC/DC |
| Operating voltage | 125 V AC/DC |
| Current rating | 4 A at 40 °C |
| Protection | IP68 |
| Temperature | -25…85 °C |
| Body material | PA |
| Nut material | Brass, nickel-plated |
| Cable connection | Wireable |
| Terminal type | Screw terminals |
| Conductor capacity | ≤0.75 mm² |
| Cable diameter | 4…6 mm |
| Silicone-free | Yes |
| Halogen-free | Yes |
| Application | Industrial automation |
| Locking | Threaded |
| M12 interface | Circular |
| Mounting method | Cable termination |
| Contact finish | Gold |
| Housing type | Moulded |
| Pack quantity | 1 |
| Field termination | Yes |
