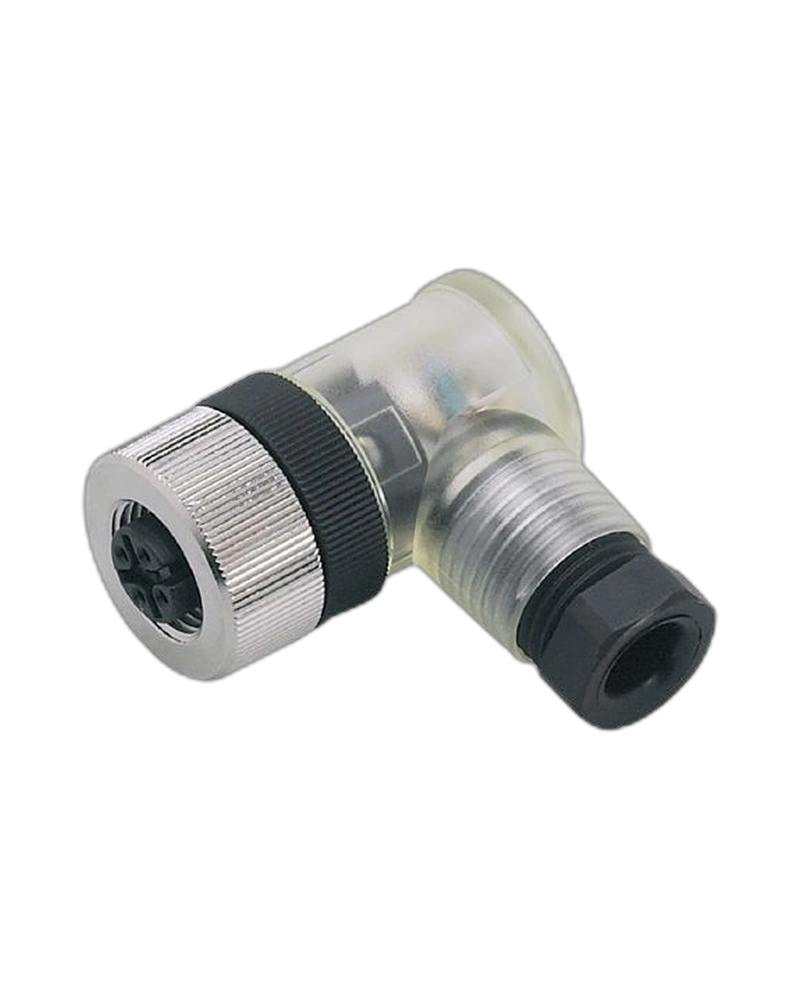

The IFM E11510 is an angled M12 wirable socket designed for industrial sensor connections. It features PNP electrical design with a 10–30 V DC operating range. Two LEDs provide operating and switching-status indication. Gold-plated contacts and a PA housing provide reliable electrical connection. IP68 protection supports installation in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The socket uses an angled M12 configuration for installations with limited cable clearance. It is designed for field wiring using screw terminals. The connector accepts conductors up to 0.75 mm² and cable diameters of 4–6 mm. The PA body provides a robust lightweight construction. The brass nut is nickel-plated for secure mechanical connection.
The E11510 operates from 10–30 V DC. It uses a PNP electrical design. The maximum current rating is 4 A at 40 °C. Green and yellow LEDs provide operating and switching-status indication. Gold-plated contacts support dependable electrical transmission.
The connector operates from -25…85 °C. IP68 protection supports demanding industrial environments. It is free from silicone and halogen. The angled construction helps reduce installation space. The connector is intended for industrial factory automation.
M12 wirable socket
Model SDOAH042MSSFKPG
Angled design
4-pin M12
PNP electrical design
10–30 V DC
4 A
Gold-plated contacts
PA housing
Nickel-plated brass nut
IP68
-25…85 °C
Green LED
Yellow LED
Screw terminals
0.75 mm² conductor capacity
4–6 mm cable diameter
Silicone-free
Halogen-free
Proximity sensors
Position sensors
Industrial sensors
Factory automation
Machine control
Sensor wiring
Control panels
Production machinery
Packaging equipment
Automation systems
The angled body is useful in restricted spaces. Dual LED indication simplifies diagnostics. Field wiring allows flexible cable selection. Gold-plated contacts support reliable signal transmission. IP68 protection provides high environmental resistance.
Use suitable cable diameter. Strip wires carefully. Secure the screw terminals properly. Maintain the connector sealing surfaces. Check LEDs and connector locking during service.
| Specification | E11510 Details |
|---|---|
| Product type | Wirable socket |
| Order number | E11510 |
| Model | SDOAH042MSSFKPG |
| Connector | M12 |
| Gender | Female |
| Pins | 4 |
| Design | Angled |
| Coding | A |
| Electrical design | PNP |
| Operating voltage | 10…30 V DC |
| Current rating | 4 A at 40 °C |
| Protection | IP68 |
| Temperature | -25…85 °C |
| Body material | PA |
| Nut material | Brass, nickel-plated |
| Contact material | Gold-plated |
| Cable connection | Wireable |
| Terminal type | Screw terminal |
| Conductor size | ≤0.75 mm² |
| Cable diameter | 4…6 mm |
| Status LED | Yellow |
| Operation LED | Green |
| Silicone-free | Yes |
| Halogen-free | Yes |
| Pack quantity | 1 |
| Cable mounting | Threaded |
| Connector orientation | 90° |
| Application | Industrial sensor connection |
