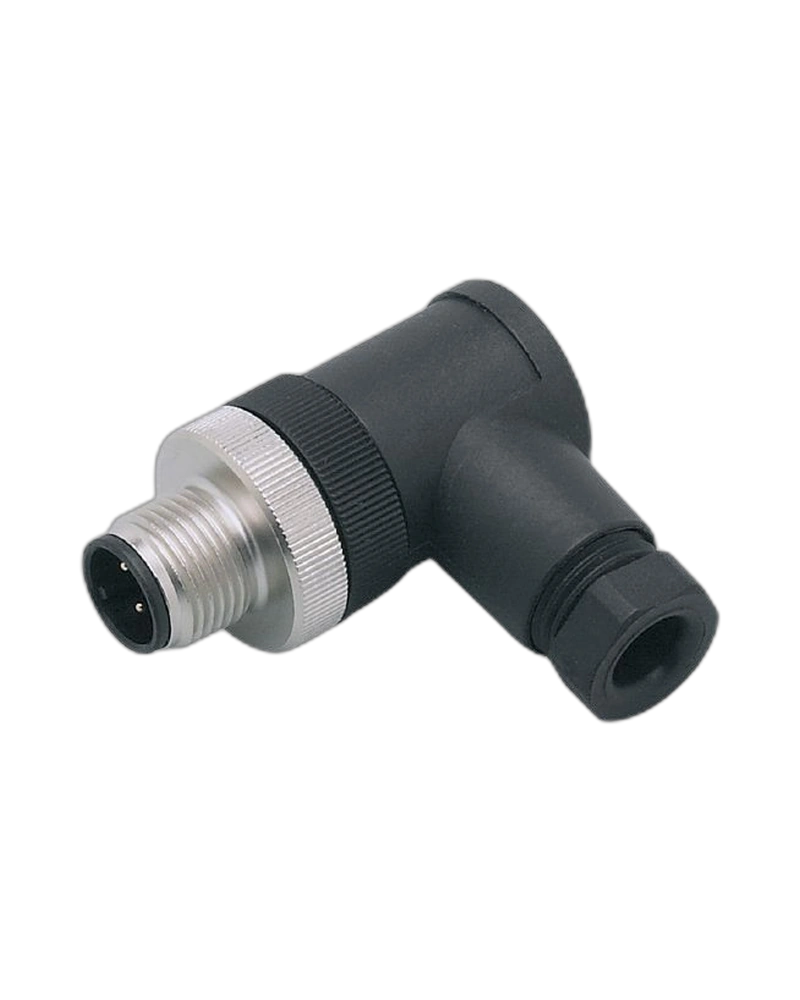

The IFM E11507 is an angled M12 wirable plug designed for industrial sensor and automation connections. It features gold-plated contacts and a robust PA housing. The connector supports 125 V AC/DC operation with a 4 A current rating at 40 °C. Screw terminals accommodate conductors up to 0.75 mm² with cable diameters from 4 to 6 mm. IP68 protection makes the connector suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11507 uses an angled M12 connector configuration. The angled construction helps when straight cable routing is restricted. Gold-plated contacts support reliable electrical connection. The brass nut is nickel-plated for mechanical durability. Screw terminals allow field termination without specialized crimping equipment.
The connector supports 125 V AC/DC. Maximum current is 4 A at temperatures up to 40 °C. Gold-plated contacts provide stable electrical transmission. The wireable design allows suitable cables to be terminated directly. The connector is designed for industrial automation wiring.
The PA body provides a lightweight and robust housing. The nickel-plated brass nut supports secure mounting. IP68 protection provides high ingress protection. The operating temperature range is -25…85 °C. The cable interface accepts 4–6 mm cable diameter.
M12 wirable plug
Model SSTAH050MSSFKPG
Angled design
Gold-plated contacts
PA body
Nickel-plated brass nut
125 V AC/DC
4 A current rating
-25…85 °C
IP68
Screw terminals
Up to 0.75 mm² conductor
4–6 mm cable diameter
Free from silicone
Free from halogen
Industrial automation design
Pack quantity 1
Industrial sensors
Factory automation
Machine wiring
Control panels
Position sensors
Proximity sensors
Automation cabinets
Field devices
Production machinery
Sensor interfaces
The angled design helps in restricted installation spaces. Field-wirable screw terminals simplify cable preparation. Gold-plated contacts support reliable signal transfer. IP68 protection improves environmental resistance. The robust housing is suitable for industrial applications.
Use the specified cable diameter. Strip conductors carefully before termination. Tighten screw terminals securely. Avoid excessive cable bending at the connector. Inspect the sealing and locking nut during maintenance.
| Specification | E11507 Details |
|---|---|
| Product type | Wirable plug |
| Order number | E11507 |
| Model | SSTAH050MSSFKPG |
| Connector | M12 |
| Design | Angled |
| Contact material | Gold-plated |
| Housing | PA |
| Nut | Brass, nickel-plated |
| Electrical design | DC / AC/DC |
| Operating voltage | 125 V AC/DC |
| Current rating | 4 A at 40 °C |
| Protection | IP68 |
| Ambient temperature | -25…85 °C |
| Connection | Wireable |
| Termination | Screw terminals |
| Maximum conductor | 0.75 mm² |
| Cable diameter | 4…6 mm |
| Silicone-free | Yes |
| Halogen-free | Yes |
| Application | Industrial automation |
| Contact style | M12 circular |
| Mounting | Cable termination |
| Connector orientation | 90° angled |
| Locking | Threaded nut |
| Nut finish | Nickel-plated |
| Body material | PA |
| Contact finish | Gold |
| Pack quantity | 1 piece |
| Field termination | Yes |
