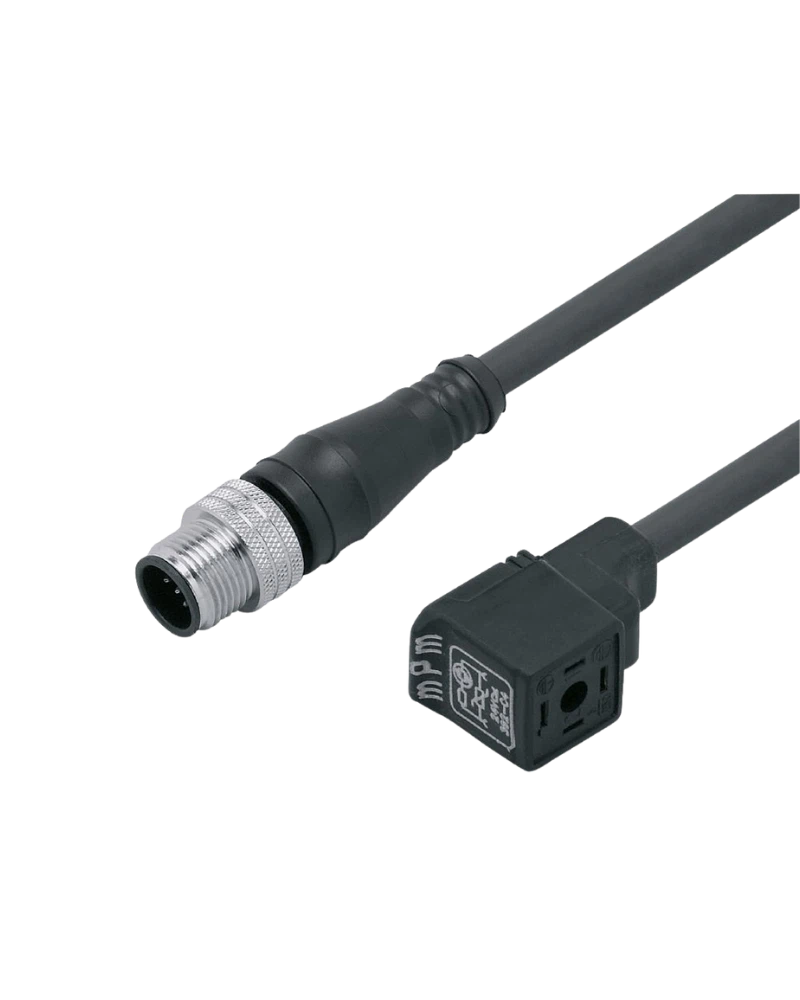

The IFM E11440 is a 5 m jumper cable with a type C valve plug designed for extended industrial automation wiring. It combines a straight A-coded M12 connector with an angled valve connection. The cable contains three 0.5 mm² conductors within a black PUR jacket. Gold-plated contacts support dependable electrical transmission. The 5 m length is suitable for distributed machine and valve installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 5 m length allows field valves to be positioned farther from the control point. PUR construction provides flexibility during cable routing. The straight M12 connector offers secure threaded connection. The angled valve plug supports convenient field installation. The preassembled construction reduces wiring preparation.
The cable is designed for below 24 V AC/DC operation. Maximum current is 3 A. VDR protection helps protect the circuit against voltage transients. A yellow LED provides visual indication. Gold-plated contacts support stable electrical performance.
The black PUR cable is halogen-free and silicone-free. The cable has a 5 mm diameter and three 0.5 mm² conductors. IP67 protection supports industrial field use. The operating temperature range is -25…80 °C. The cable is intended for reliable valve-control applications.
5 m cable
VVSAC031MSS0005H03STGH030MSS
Straight M12
A-coded
3 contacts
Type C valve plug
PUR
Black
3 × 0.5 mm²
5 mm diameter
Gold-plated contacts
Yellow LED
VDR
3 A
<24 V AC/DC
IP67
Halogen-free
Silicone-free
Brass locking
Remote valve control
Factory automation
Pneumatic systems
Production machinery
Packaging lines
Actuator systems
Machine automation
Control panels
Industrial equipment
Field installations
The 5 m length supports extended field wiring. PUR provides flexible cable routing. Gold-plated contacts support reliable connection. LED indication simplifies troubleshooting. VDR protection adds electrical robustness.
Use appropriate cable supports for long runs. Avoid sharp bends. Keep the cable away from high-temperature surfaces. Inspect the jacket periodically. Tighten connectors during maintenance.
| Specification | E11440 Details |
|---|---|
| Order number | E11440 |
| Model | VVSAC031MSS0005H03STGH030MSS |
| Type | Jumper cable with valve plug |
| Length | 5 m |
| M12 | Straight |
| Coding | A |
| M12 contacts | 3 |
| Valve plug | Type C |
| Valve orientation | Angled |
| Cable material | PUR |
| Colour | Black |
| Conductors | 3 |
| Cross-section | 0.5 mm² |
| Diameter | 5 mm |
| Strand construction | 42 × Ø0.1 mm |
| M12 contacts | Gold-plated |
| Valve contacts | Nickel-plated brass |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Voltage | <24 V AC/DC |
| Current | 3 A |
| Protection circuit | VDR |
| LED | Yellow |
| Temperature | -25…80 °C |
| Protection | IP67 |
| Locking | Brass, nickel-plated |
| Torque | 0.7…0.9 Nm |
| Weight | Approx. 263.2 g |
| Pack | 1 piece |
