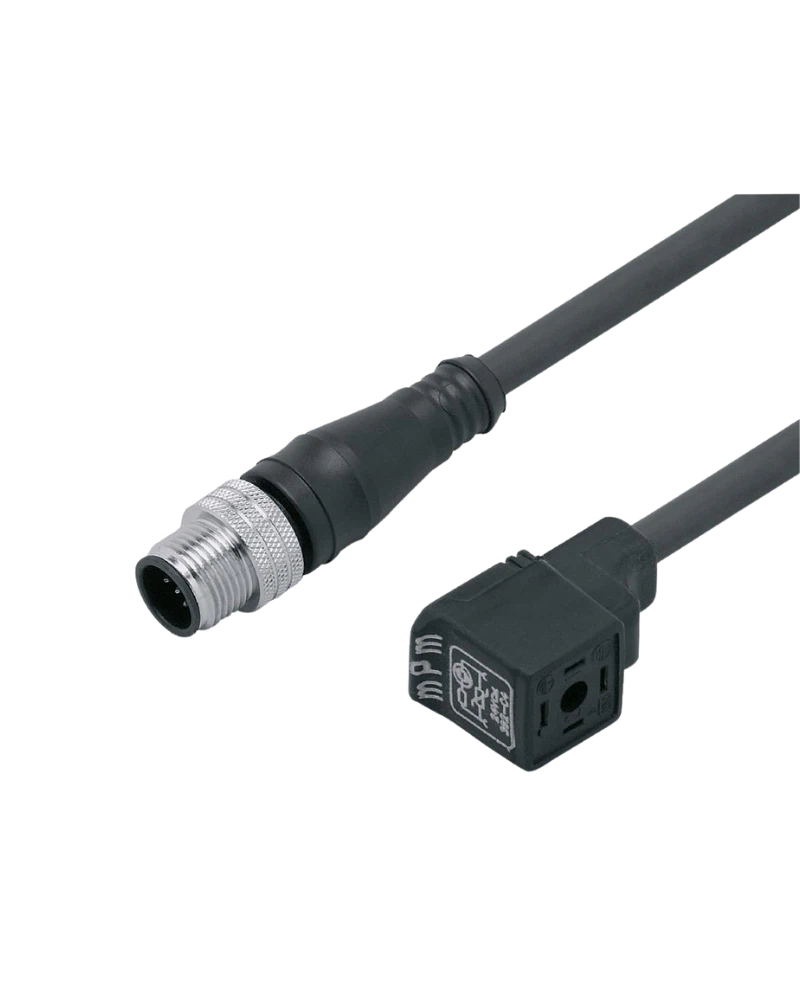

The IFM E11439 is a 2 m jumper cable with a type C valve plug for industrial automation applications. It uses a straight A-coded M12 connector and an angled valve connection. Three 0.5 mm² conductors are enclosed in a black PUR cable jacket. Gold-plated contacts support reliable electrical performance. The 2 m length provides useful routing distance for machine installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 2 m cable length supports medium-distance machine connections. The M12 connector uses a straight A-coded design. The valve side uses a type C angled interface. PUR construction supports flexible routing. Nickel-plated brass locking components provide secure mating.
The cable operates below 24 V AC/DC. It supports a maximum current of 3 A. VDR protection provides overvoltage protection. The yellow LED provides operating indication. Gold-plated contacts support dependable electrical connection.
The cable is black and halogen-free. It uses a 5 mm diameter PUR construction. IP67 protection supports industrial field installation. Operating temperature is -25…80 °C. The construction is suitable for factory automation.
2 m cable
Type C valve plug
Straight M12
A-coded
3 contacts
PUR
3 × 0.5 mm²
Black
5 mm diameter
Gold-plated contacts
Yellow LED
VDR
3 A
<24 V AC/DC
IP67
Halogen-free
Silicone-free
Brass locking
Nickel-plated
Valve control
Pneumatic automation
Production machinery
Packaging equipment
Factory automation
Actuator wiring
Control cabinets
Assembly lines
Machine tools
Industrial equipment
The 2 m cable provides practical routing flexibility. PUR construction supports machine installation. Gold-plated contacts improve connection reliability. LED indication assists diagnostics. VDR protection provides additional circuit protection.
Maintain suitable cable support. Avoid excessive bending. Tighten connectors correctly. Check cable insulation regularly. Keep the connector clean.
| Specification | E11439 Details |
|---|---|
| Order number | E11439 |
| Model | VVSAC031MSS0002H03STGH030MSS |
| Product type | Jumper cable |
| Length | 2 m |
| M12 connector | Straight |
| Coding | A |
| M12 contacts | 3 |
| Valve plug | Type C |
| Valve orientation | Angled |
| Cable | PUR |
| Colour | Black |
| Conductors | 3 |
| Cross-section | 0.5 mm² |
| Diameter | 5 mm |
| Construction | 42 × Ø0.1 mm |
| M12 contact finish | Gold-plated |
| Valve contacts | Nickel-plated brass |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Voltage | <24 V AC/DC |
| Current | 3 A |
| VDR protection | Yes |
| LED | Yellow |
| Temperature | -25…80 °C |
| Protection | IP67 |
| Locking | Brass, nickel-plated |
| Torque | 0.7…0.9 Nm |
| Pack | 1 |
| Main use | Industrial valve connection |
