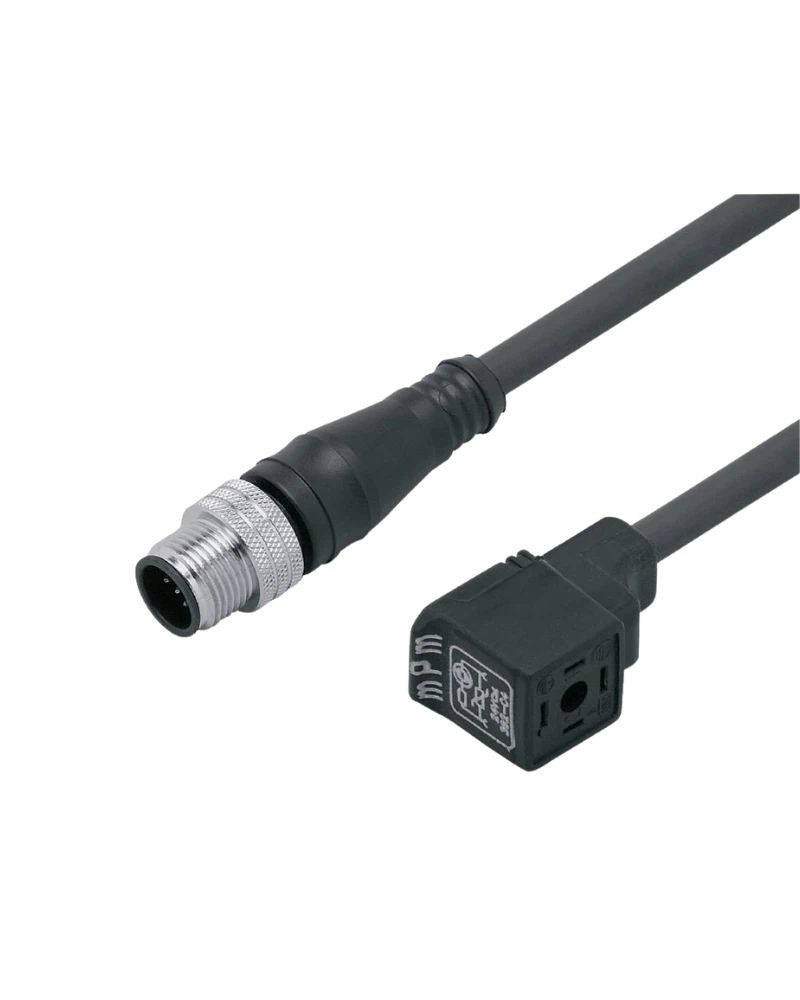

The IFM E11438 is a 1 m jumper cable with a type C valve plug for industrial control systems. It features a straight A-coded M12 connector and three electrical contacts. The black PUR cable contains three 0.5 mm² conductors. Gold-plated contacts provide reliable electrical connectivity. Its 1 m length is suitable for standard machine and valve installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The straight M12 connector provides secure threaded coupling. The valve connection uses an angled type C plug. The 1 m cable length supports general machine routing. PUR construction provides flexibility around the connection points. Brass locking hardware helps prevent accidental loosening.
The cable operates below 24 V AC/DC. Maximum current capability is 3 A. VDR protection helps suppress transient voltage. The yellow LED gives visible status information. Gold-plated contacts support dependable connection.
The cable uses black PUR material. It is halogen-free and silicone-free. IP67 protection supports industrial field installation. The -25…80 °C range covers common automation environments. The cable is intended for valve and machine-control applications.
1 m cable
Type C valve plug
Straight M12
A-coded
3 contacts
PUR cable
3 × 0.5 mm²
Black
5 mm diameter
Gold-plated contacts
VDR
Yellow LED
3 A
<24 V AC/DC
IP67
Halogen-free
Silicone-free
Brass locking
Nickel-plated finish
Industrial valves
Pneumatic automation
Factory machinery
Packaging systems
Assembly equipment
Actuator control
Machine control
Industrial panels
Production lines
Field devices
The 1 m length suits common machine installations. The connector configuration simplifies field wiring. LED indication provides fast visual diagnostics. VDR protection increases electrical robustness. PUR provides flexible cable routing.
Avoid excessive cable bending. Support the cable in vibration-prone areas. Tighten connectors correctly. Inspect the jacket periodically. Keep the connection area clean.
| Specification | E11438 Details |
|---|---|
| Order number | E11438 |
| Model | VVSAC031MSS0001H03STGH030MSS |
| Type | Jumper cable |
| Length | 1 m |
| M12 | Straight |
| Coding | A |
| M12 contacts | 3 |
| Valve plug | Type C |
| Valve orientation | Angled |
| Cable material | PUR |
| Colour | Black |
| Conductors | 3 |
| Cross-section | 0.5 mm² |
| Diameter | 5 mm |
| Strand construction | 42 × Ø0.1 mm |
| M12 contacts | Gold-plated |
| Valve contacts | Nickel-plated brass |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Voltage | <24 V AC/DC |
| Current | 3 A |
| Protection circuit | VDR |
| Indicator | Yellow LED |
| Temperature | -25…80 °C |
| Protection | IP67 |
| Locking material | Brass, nickel-plated |
| Torque | 0.7…0.9 Nm |
| Pack quantity | 1 |
| Application | Valve control |
