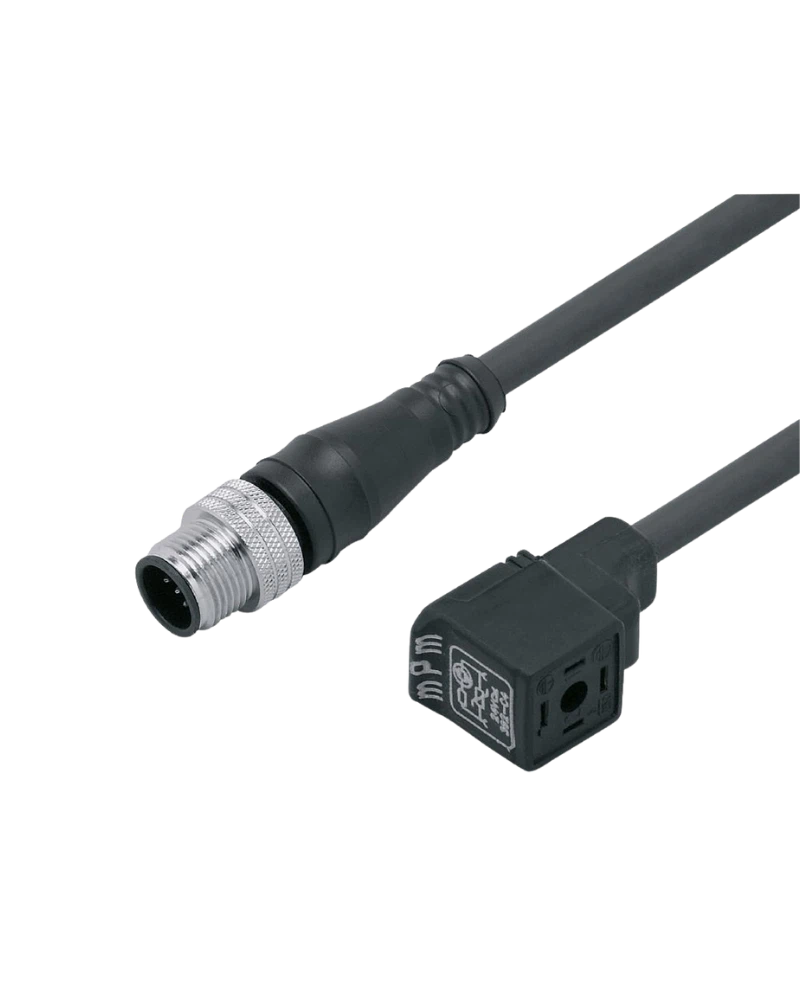

The IFM E11437 is a 0.6 m jumper cable with a type C valve plug for industrial automation. It uses a straight A-coded M12 connector with three contacts. The black PUR cable contains three 0.5 mm² conductors. Gold-plated contacts support reliable electrical transmission. The 0.6 m length provides additional routing flexibility while remaining compact.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The M12 connector uses straight geometry. The valve plug uses a type C industrial connection. The cable is designed for direct connection between control equipment and valves. Nickel-plated brass locking elements provide secure mating. PUR construction allows practical machine routing.
The cable operates below 24 V AC/DC. It supports up to 3 A current. VDR protection provides overvoltage protection. The yellow LED provides visible operating indication. Gold-plated contacts support stable connection quality.
The cable is black and halogen-free. PUR insulation supports flexible installation. IP67 protection makes it suitable for industrial field environments. The operating range is -25…80 °C. The construction is designed for factory automation applications.
0.6 m length
Type C valve plug
Straight M12
A coding
3 contacts
PUR
3 × 0.5 mm²
5 mm diameter
Black
Gold-plated contacts
Yellow LED
VDR
3 A
<24 V AC/DC
IP67
Halogen-free
Silicone-free
Brass locking
Nickel-plated
Valve control
Pneumatic machinery
Factory automation
Packaging lines
Actuator systems
Machine control
Production equipment
Assembly equipment
Industrial controls
Field wiring
The 0.6 m length provides convenient routing. PUR construction supports cable flexibility. LED indication helps troubleshooting. Gold-plated contacts provide stable connection. The preassembled cable reduces installation time.
Avoid cable tension. Keep the cable supported where required. Tighten connectors correctly. Check the cable jacket for abrasion. Keep mating surfaces clean.
| Specification | E11437 Details |
|---|---|
| Order number | E11437 |
| Model | VVSAC031MSS00,6H03STGH030MSS |
| Type | Jumper cable with valve plug |
| Length | 0.6 m |
| M12 orientation | Straight |
| Coding | A |
| Contacts | 3 |
| Valve type | C |
| Valve orientation | Angled |
| Cable material | PUR |
| Colour | Black |
| Conductors | 3 |
| Cross-section | 0.5 mm² |
| Diameter | 5 mm |
| Construction | 42 × Ø0.1 mm |
| M12 contacts | Gold-plated |
| Valve contacts | Nickel-plated brass |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Voltage | <24 V AC/DC |
| Current | 3 A |
| VDR | Yes |
| LED | Yellow |
| Temperature | -25…80 °C |
| Protection | IP67 |
| Locking | Brass, nickel-plated |
| Torque | 0.7…0.9 Nm |
| Pack | 1 |
| Application | Industrial valve connection |
