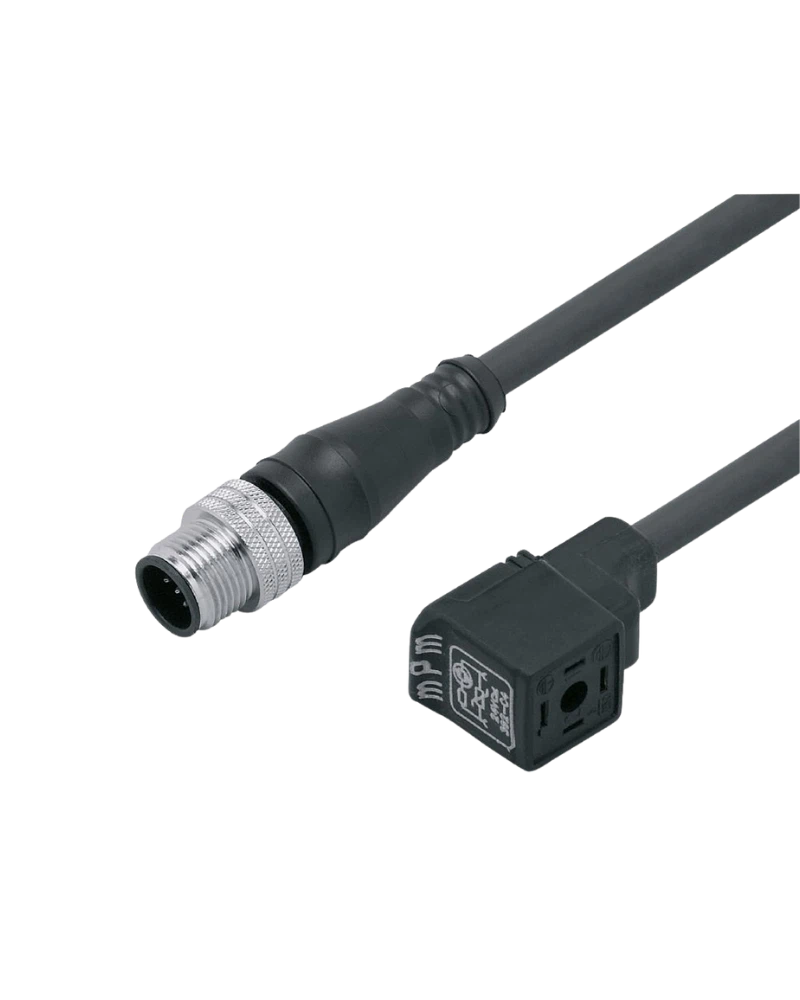

The IFM E11436 is a compact 0.3 m jumper cable with a valve plug for industrial automation. It uses a straight A-coded three-contact M12 connector and a type C valve connection. The cable is constructed from black halogen-free PUR with three 0.5 mm² conductors. Gold-plated contacts provide dependable electrical connection. Its compact size is suitable for closely positioned automation components.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The M12 connector provides straight threaded connection. The valve-side connector uses a type C arrangement. The 0.3 m length minimizes excess cable in compact machines. The 5 mm cable diameter simplifies routing. Robust locking components provide secure mechanical connection.
The cable supports below 24 V AC/DC. Maximum current is 3 A. VDR protection helps reduce transient voltage effects. A yellow LED provides operating indication. Gold-plated contacts improve electrical contact performance.
The PUR cable is black and halogen-free. It is designed for industrial automation applications. The connector assembly uses brass and nickel-plated locking components. The cable supports flexible routing around machine components. Its protection level is suitable for industrial field connections.
0.3 m cable
VVSAC031MSS00,3H03STGH030MSS
Straight M12
A-coded
3 contacts
Type C valve plug
PUR
Black
3 × 0.5 mm²
5 mm diameter
Gold-plated contacts
Yellow LED
VDR protection
3 A
<24 V AC/DC
Halogen-free
Silicone-free
Brass locking
Nickel-plated finish
Compact valve assemblies
Pneumatic systems
Factory automation
Machine control
Packaging equipment
Actuator wiring
Industrial machinery
Assembly machines
Control cabinets
Field automation
The 0.3 m cable keeps wiring compact. The integrated LED supports quick diagnostics. VDR protection adds electrical protection. PUR construction provides flexibility. Preassembled connections reduce installation effort.
Maintain correct cable routing. Avoid sharp bends near connectors. Tighten mating interfaces correctly. Inspect the cable jacket periodically. Keep connector surfaces clean.
| Specification | E11436 Details |
|---|---|
| Order number | E11436 |
| Model | VVSAC031MSS00,3H03STGH030MSS |
| Product | Jumper cable with valve plug |
| Cable length | 0.3 m |
| M12 | Straight |
| Coding | A |
| M12 contacts | 3 |
| Valve plug | Type C |
| Valve orientation | Angled |
| Cable | PUR |
| Colour | Black |
| Conductors | 3 |
| Cross-section | 0.5 mm² |
| Diameter | 5 mm |
| Strand construction | 42 × Ø0.1 mm |
| Contact finish | Gold-plated |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Voltage | <24 V AC/DC |
| Current | 3 A |
| Protection | VDR |
| LED | Yellow |
| Temperature | -25…80 °C |
| Protection rating | IP67 |
| Locking | Brass, nickel-plated |
| Valve contacts | Nickel-plated brass |
| Torque | 0.7…0.9 Nm |
| Pack | 1 |
