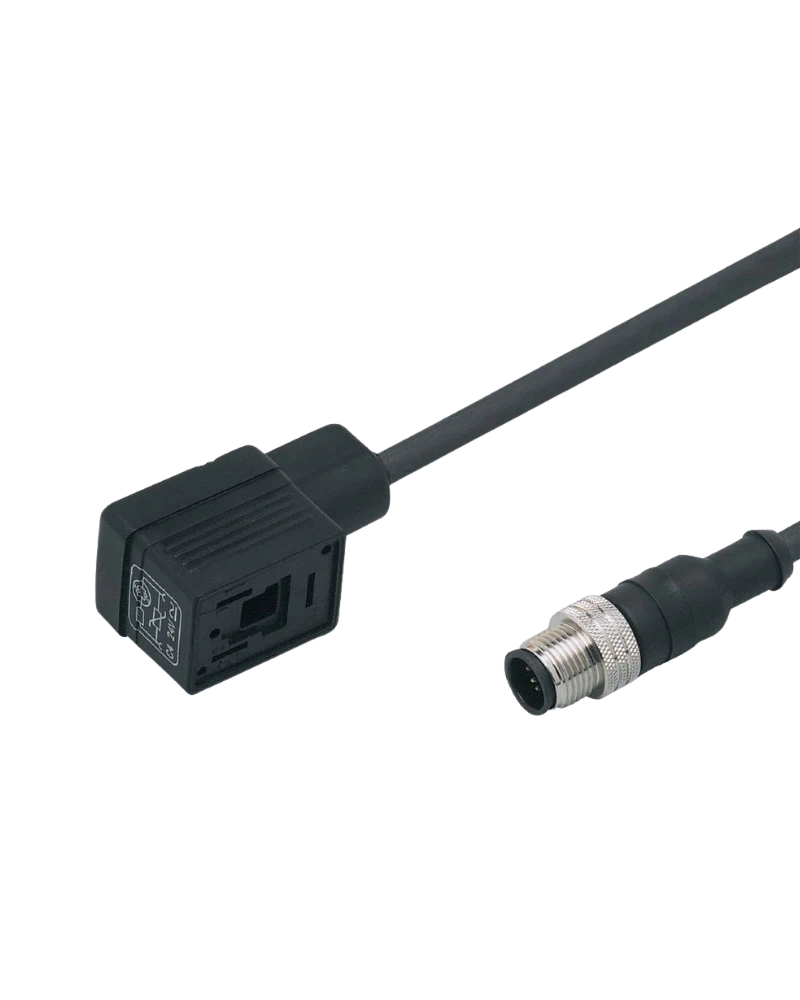

The IFM E11435 is a 5 m jumper cable with a type B valve plug for extended industrial wiring. It uses a straight A-coded M12 connector and three electrical contacts. The black PUR cable contains three 0.5 mm² conductors and is designed for flexible field routing. Gold-plated contacts and robust locking components support dependable connection. The 5 m length is suitable for distributed valve-control installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 5 m cable allows connection between control equipment and valves positioned farther apart. PUR insulation supports practical cable routing through machinery. The straight M12 connector provides secure threaded coupling. The angled valve connection can be installed in space-constrained locations. The preassembled construction reduces field termination work.
The cable is designed for below 24 V AC/DC applications. Maximum current capability is 3 A. VDR protection provides transient protection. A yellow LED supports visual status checking. Gold-plated contacts improve connection stability.
The cable is black, halogen-free and silicone-free. Its 5 mm diameter helps simplify cable management. Nickel-plated brass locking components provide secure mating. The construction is suitable for factory automation. The cable supports operating conditions of -25…80 °C.
5 m length
Type B valve plug
Straight M12
A-coded
3 contacts
3 × 0.5 mm²
PUR
Black
5 mm diameter
Gold-plated contacts
Yellow LED
VDR
3 A
<24 V AC/DC
Halogen-free
Silicone-free
Brass locking
Nickel-plated
Industrial construction
Remote valve control
Pneumatic automation
Factory automation
Packaging machinery
Assembly lines
Actuator systems
Machine control
Production equipment
Control cabinets
Field installations
The 5 m length provides extended installation reach. PUR offers flexible routing. The connector configuration reduces manual wiring. LED indication supports maintenance. Gold-plated contacts help maintain reliable electrical connection.
Use suitable cable supports for long runs. Avoid excessive bending. Keep the cable away from sharp edges. Inspect connector locking regularly. Replace the assembly if the cable jacket is damaged.
| Specification | E11435 Details |
|---|---|
| Order number | E11435 |
| Model | VVSAB031MSS0005H03STGH030MSS |
| Product type | Jumper cable |
| Length | 5 m |
| M12 connector | Straight |
| Coding | A |
| M12 contacts | 3 |
| Valve plug | Type B |
| Valve orientation | Angled |
| Cable material | PUR |
| Colour | Black |
| Conductors | 3 |
| Conductor area | 0.5 mm² |
| Cable diameter | 5 mm |
| Strand construction | 42 × Ø0.1 mm |
| M12 contact finish | Gold-plated |
| Valve contacts | Nickel-plated brass |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Operating voltage | <24 V AC/DC |
| Maximum current | 3 A |
| Protection | VDR |
| Indicator | Yellow LED |
| Temperature | -25…80 °C |
| Locking material | Brass, nickel-plated |
| Locking torque | 0.7…0.9 Nm |
| Pack quantity | 1 |
| Application | Industrial valve control |
