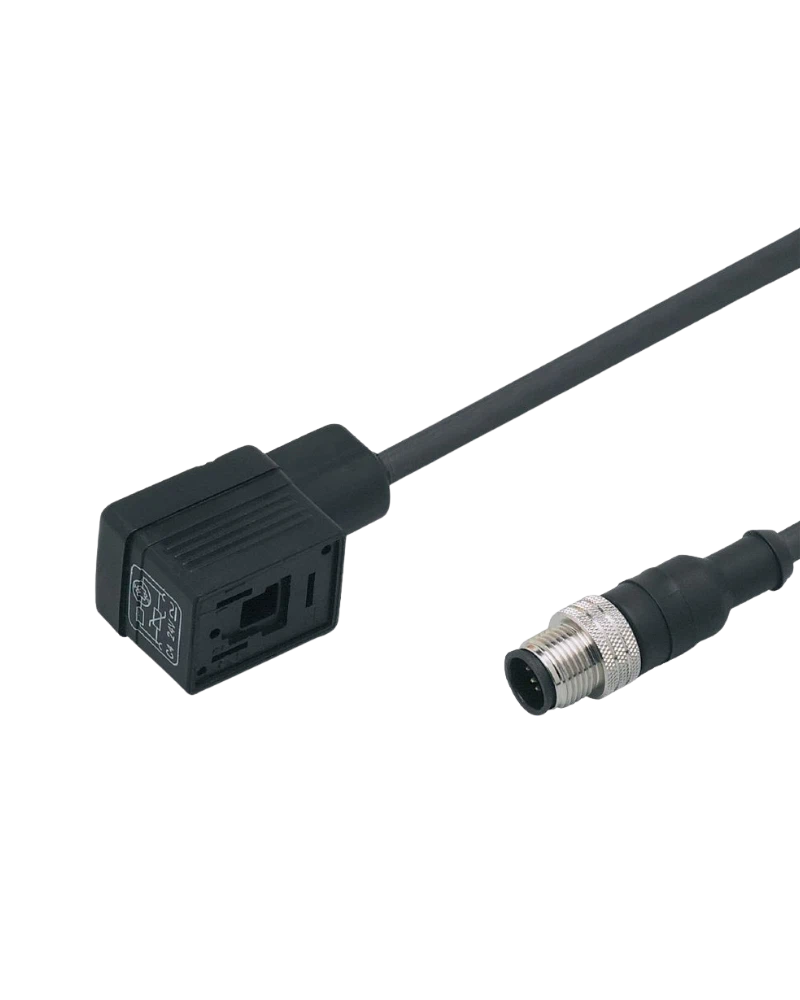

The IFM E11434 is a 2 m jumper cable designed for reliable valve and automation connections. It features a straight three-contact A-coded M12 connector and an angled type B valve plug. The cable contains three 0.5 mm² conductors within a black PUR jacket. Gold-plated contacts provide reliable electrical transmission. The 2 m length offers useful flexibility for machine routing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The straight M12 connector provides a secure threaded interface. The type B valve plug provides compatibility with the corresponding industrial valve connection. PUR construction allows flexible routing around machine structures. Three conductors provide the required valve-control connections. Brass locking hardware supports mechanical stability.
The cable supports below 24 V AC/DC operation. Maximum current is 3 A. VDR protection helps reduce electrical transient effects. The yellow LED provides visual operating status. Gold-plated M12 contacts support long-term connection performance.
The cable is halogen-free and silicone-free. Its black PUR jacket supports industrial installation. The connector arrangement provides IP-rated protection for factory applications. The cable is suitable for -25…80 °C operating environments. Its construction supports general automation wiring.
2 m cable
VVSAB031MSS0002H03STGH030MSS
Straight M12
A-coded
3 contacts
Type B valve plug
Angled valve connection
PUR
Black
3 × 0.5 mm²
5 mm diameter
Gold-plated contacts
Yellow LED
VDR
3 A
<24 V AC/DC
Halogen-free
Silicone-free
Nickel-plated brass
Industrial valves
Pneumatic automation
Machine control
Packaging systems
Production machinery
Actuator control
Factory automation
Control panels
Material handling
Industrial equipment
The 2 m cable provides useful installation reach. The preassembled design reduces wiring effort. Gold-plated contacts improve connection stability. PUR construction allows flexible routing. LED indication supports quick troubleshooting.
Maintain proper cable support. Avoid excessive cable tension. Tighten connector interfaces correctly. Inspect the cable jacket regularly. Keep connector mating areas clean.
| Specification | E11434 Details |
|---|---|
| Order number | E11434 |
| Model | VVSAB031MSS0002H03STGH030MSS |
| Type | Jumper cable with valve plug |
| Length | 2 m |
| M12 | Straight |
| Coding | A |
| Contacts | 3 |
| Valve plug | Type B |
| Valve orientation | Angled |
| Cable | PUR |
| Colour | Black |
| Conductors | 3 |
| Cross-section | 0.5 mm² |
| Diameter | 5 mm |
| Construction | 42 × Ø0.1 mm |
| Contact material | Gold-plated |
| Valve contacts | Nickel-plated brass |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Voltage | <24 V AC/DC |
| Current | 3 A |
| Protection circuit | VDR |
| Indicator | Yellow LED |
| Temperature | -25…80 °C |
| Locking | Brass, nickel-plated |
| Torque | 0.7…0.9 Nm |
| Pack | 1 |
| Cable colour | Black |
| Main application | Valve connection |
