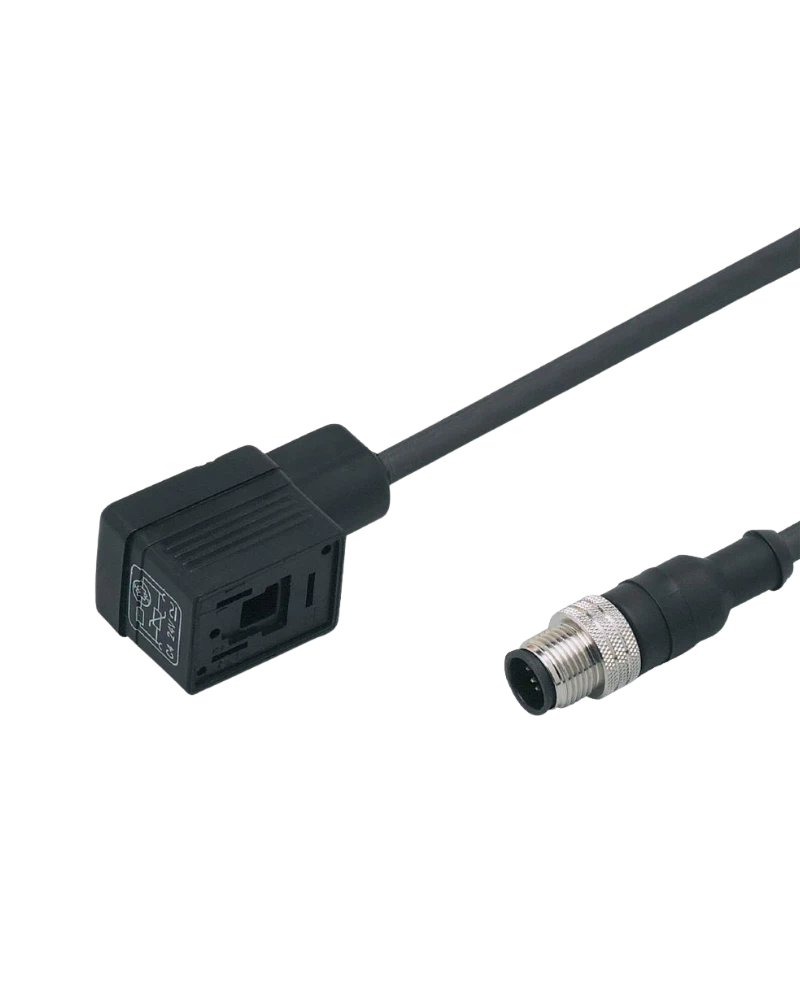

The IFM E11433 is a 1 m jumper cable with a valve plug type B for industrial automation systems. It combines a straight A-coded M12 connector with an angled valve plug. The cable uses three 0.5 mm² conductors inside a flexible PUR jacket. Gold-plated contacts help provide reliable electrical connection. Its 1 m length is suitable for general-purpose machine wiring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The straight M12 connection offers secure threaded mating. The type B valve plug provides the field connection. Three contacts support valve-control wiring. The 1 m length is suitable for medium-distance machine routing. PUR construction supports flexible installation.
The cable operates below 24 V AC/DC. It supports a maximum current of 3 A. VDR protection provides transient protection. A yellow LED provides operating indication. Gold-plated contacts improve contact quality.
The black PUR jacket is halogen-free and silicone-free. The connector hardware uses brass and nickel-plated materials. The 5 mm cable diameter allows compact routing. The cable is designed for industrial automation. Its robust construction supports machine installation.
1 m length
Type B valve plug
Straight M12
A coding
3 contacts
PUR cable
3 × 0.5 mm²
Black
5 mm diameter
Gold-plated contacts
VDR protection
Yellow LED
3 A
<24 V AC/DC
Halogen-free
Silicone-free
Brass locking
Nickel-plated finish
Industrial design
Valve automation
Pneumatic systems
Factory machinery
Packaging equipment
Assembly machines
Actuator control
Control panels
Production lines
Machine tools
Industrial field wiring
The 1 m length fits many standard machine installations. The preassembled design reduces wiring work. The LED provides quick operating feedback. PUR offers flexible routing. VDR protection improves electrical resilience.
Avoid sharp cable bends. Secure the cable where vibration occurs. Tighten connectors to the recommended torque. Keep connectors clean. Inspect for jacket damage.
| Specification | E11433 Details |
|---|---|
| Order number | E11433 |
| Model | VVSAB031MSS0001H03STGH030MSS |
| Product | Jumper cable with valve plug |
| Length | 1 m |
| M12 connector | Straight |
| M12 coding | A |
| Contacts | 3 |
| Valve plug | Type B |
| Valve orientation | Angled |
| Cable material | PUR |
| Colour | Black |
| Conductors | 3 |
| Conductor size | 0.5 mm² |
| Cable diameter | 5 mm |
| Strand construction | 42 × Ø0.1 mm |
| M12 contacts | Gold-plated |
| Valve contacts | Nickel-plated brass |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Voltage | <24 V AC/DC |
| Current | 3 A |
| VDR | Yes |
| LED | Yellow |
| Temperature | -25…80 °C |
| Locking material | Brass, nickel-plated |
| Locking torque | 0.7…0.9 Nm |
| Pack quantity | 1 |
| Main application | Valve control |
