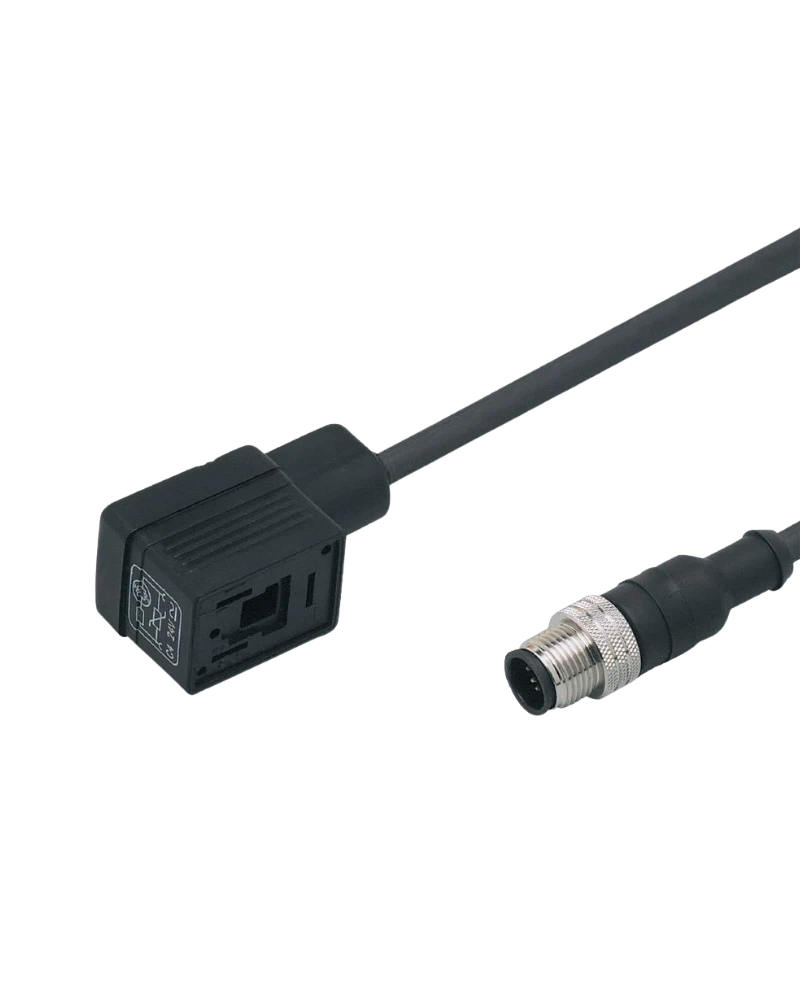

The IFM E11432 is a 0.6 m jumper cable with a valve plug type B for industrial automation. It uses a straight A-coded M12 connector with three contacts. The black PUR cable contains three 0.5 mm² conductors. Its gold-plated contacts support stable electrical transmission. The cable is designed for reliable connection between automation equipment and field valves.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 0.6 m length provides a practical balance between compactness and routing flexibility. The straight M12 connector uses A coding. The valve plug uses an angled type B interface. Brass locking components maintain secure connection. The cable is suitable for machine-level installation.
The cable operates below 24 V AC/DC. It supports up to 3 A. VDR protection helps protect against voltage transients. A yellow LED provides visual indication. Gold-plated M12 contacts improve connection reliability.
PUR provides flexibility and abrasion resistance for industrial routing. The black cable is halogen-free and silicone-free. The 5 mm diameter supports compact cable management. The connector hardware is designed for repeated industrial use. Its construction is suitable for automation equipment.
0.6 m cable
VVSAB031MSS00,6H03STGH030MSS
Straight M12
A coding
3 contacts
Type B valve plug
PUR
Black
3 × 0.5 mm²
5 mm diameter
Gold-plated M12 contacts
Yellow LED
VDR
3 A
<24 V AC/DC
Halogen-free
Silicone-free
Nickel-plated brass locking
Valve control
Pneumatic machinery
Factory automation
Packaging machines
Assembly equipment
Industrial controls
Actuator wiring
Machine automation
Production lines
Field devices
The 0.6 m length reduces excess cable in compact installations. Preassembled connectors reduce installation time. Gold-plated contacts provide dependable electrical connection. LED indication assists maintenance. PUR provides flexible routing.
Maintain proper cable routing. Avoid excessive pulling force. Tighten connectors correctly. Inspect the cable after machine servicing. Keep the connector surfaces clean.
| Specification | E11432 Details |
|---|---|
| Order number | E11432 |
| Model | VVSAB031MSS00,6H03STGH030MSS |
| Type | Jumper cable with valve plug |
| Length | 0.6 m |
| M12 | Straight |
| Coding | A |
| Contacts | 3 |
| Valve connection | Type B |
| Valve orientation | Angled |
| Cable material | PUR |
| Colour | Black |
| Conductors | 3 |
| Cross-section | 0.5 mm² |
| Diameter | 5 mm |
| Strand construction | 42 × Ø0.1 mm |
| M12 contact finish | Gold-plated |
| Valve contacts | Nickel-plated brass |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Voltage | <24 V AC/DC |
| Current | 3 A |
| Protection | VDR |
| Indicator | Yellow LED |
| Temperature | -25…80 °C |
| Locking | Brass, nickel-plated |
| Torque | 0.7…0.9 Nm |
| Pack | 1 piece |
| Application | Industrial valve connection |
